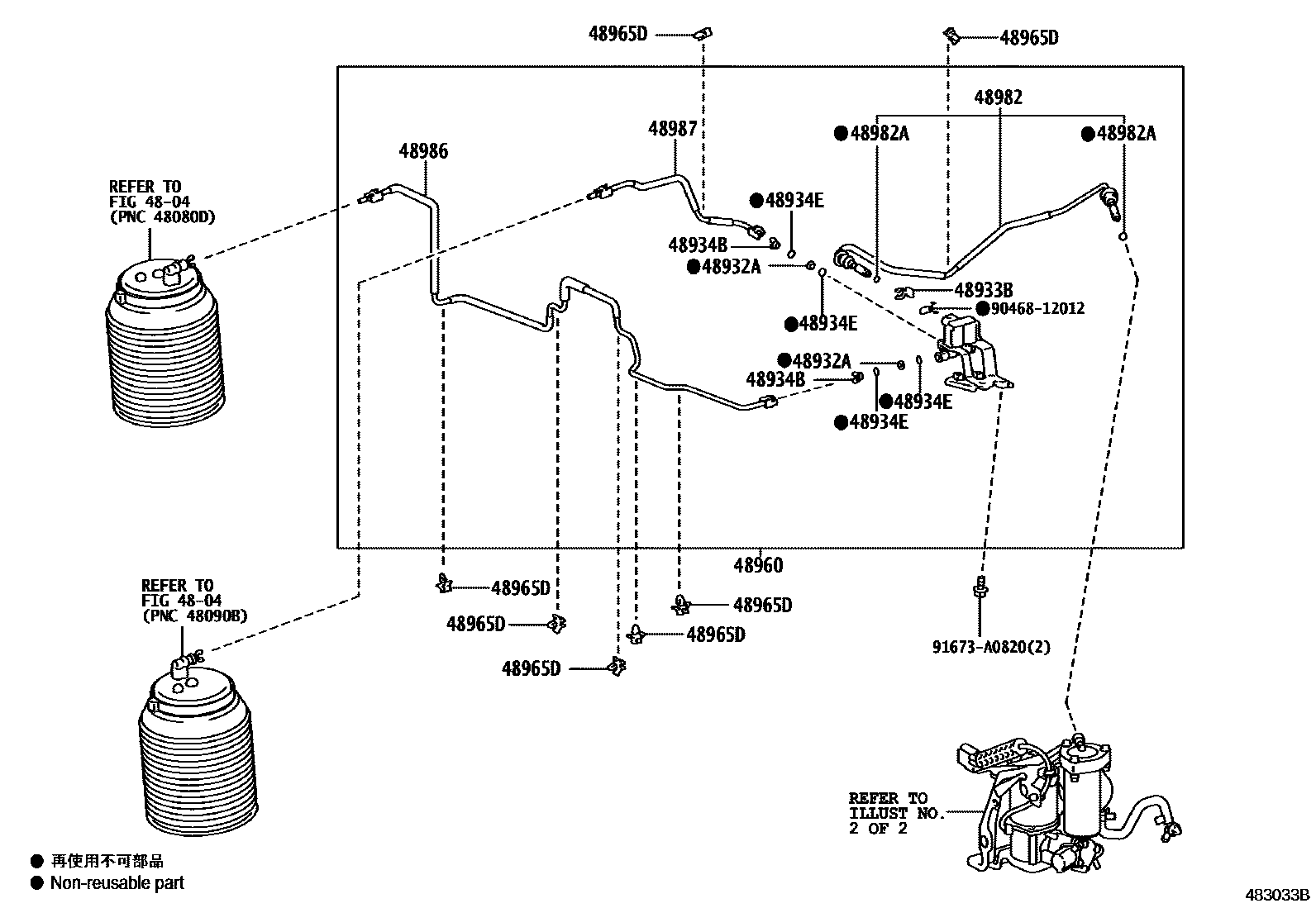

HEIGHT CONTROL (AUTO-LEVELER)
4804
48932APLATE, HEIGHT CONTROL TUBE
48933HOLDER, AIR CONNECTOR CLIP
48933BHOLDER, REAR HEIGHT CONTROL AIR CONNECTOR CLIP
48934BCONNECTOR, HEIGHT CONTROL TUBE
48934ERING, O(FOR HEIGHT CONTROL TUBE CONNECTOR)
48960VALVE ASSY, HEIGHT CONTROL, NO.2
48965DCLAMP, HEIGHT CONTROL TUBE, NO.2
48982TUBE, HEIGHT CONTROL, NO.2
48982ARING, O(FOR HEIGHT CONTROL TUBE NO.2)
48986TUBE, HEIGHT CONTROL, NO.6
48987TUBE, HEIGHT CONTROL, NO.7
9046812012
main90468-12012
91673A0820
main91673-A0820
14 parts on this diagram · 2 diagrams in section
