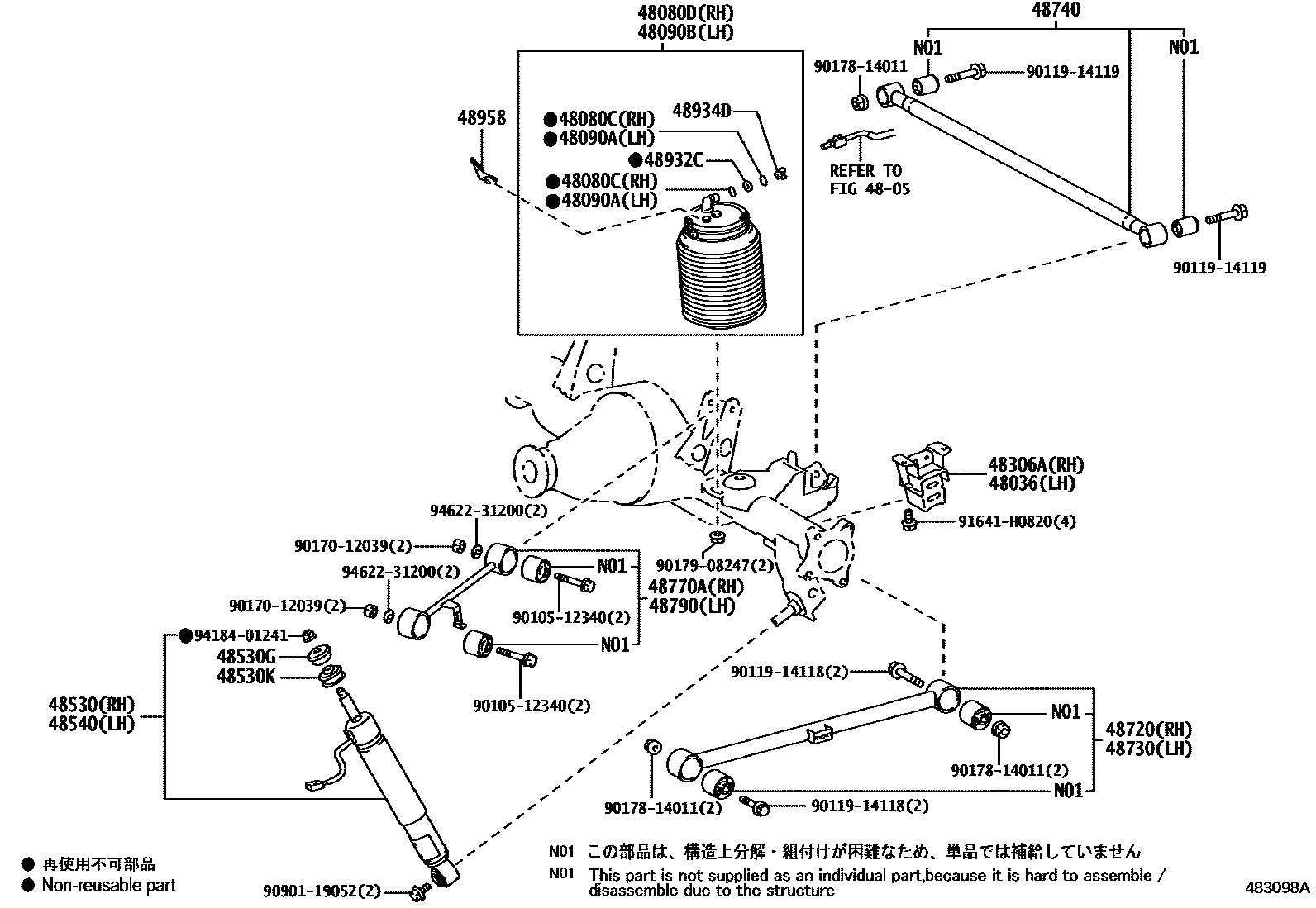

REAR SPRING & SHOCK ABSORBER
48036BUMPER SUB-ASSY, REAR SPRING, LH
4805
48080CRING, O(FOR REAR PNEUMATIC CYLINDER RH)
48080DCYLINDER ASSY, PNEUMATIC, REAR RH
48090ARING, O(FOR REAR PNEUMATIC CYLINDER LH)
48090BCYLINDER ASSY, PNEUMATIC, REAR LH
48306ABUMPER SUB-ASSY, REAR SPRING, RH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-60210
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-60210
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48932CPLATE, HEIGHT CONTROL TUBE
48934DCONNECTOR, HEIGHT CONTROL TUBE
48958CLIP, PNEUMATIC CYLINDER
9010512340
main90105-12340
9011914118
main90119-14118
9011914119
main90119-14119
9017012039
main90170-12039
9017814011
main90178-14011
9017908247
main90179-08247
9090119052
main90901-19052
91641H0820
main91641-H0820
9418401241
main94184-01241
9462231200
main94622-31200
29 parts on this diagram · 2 diagrams in section
