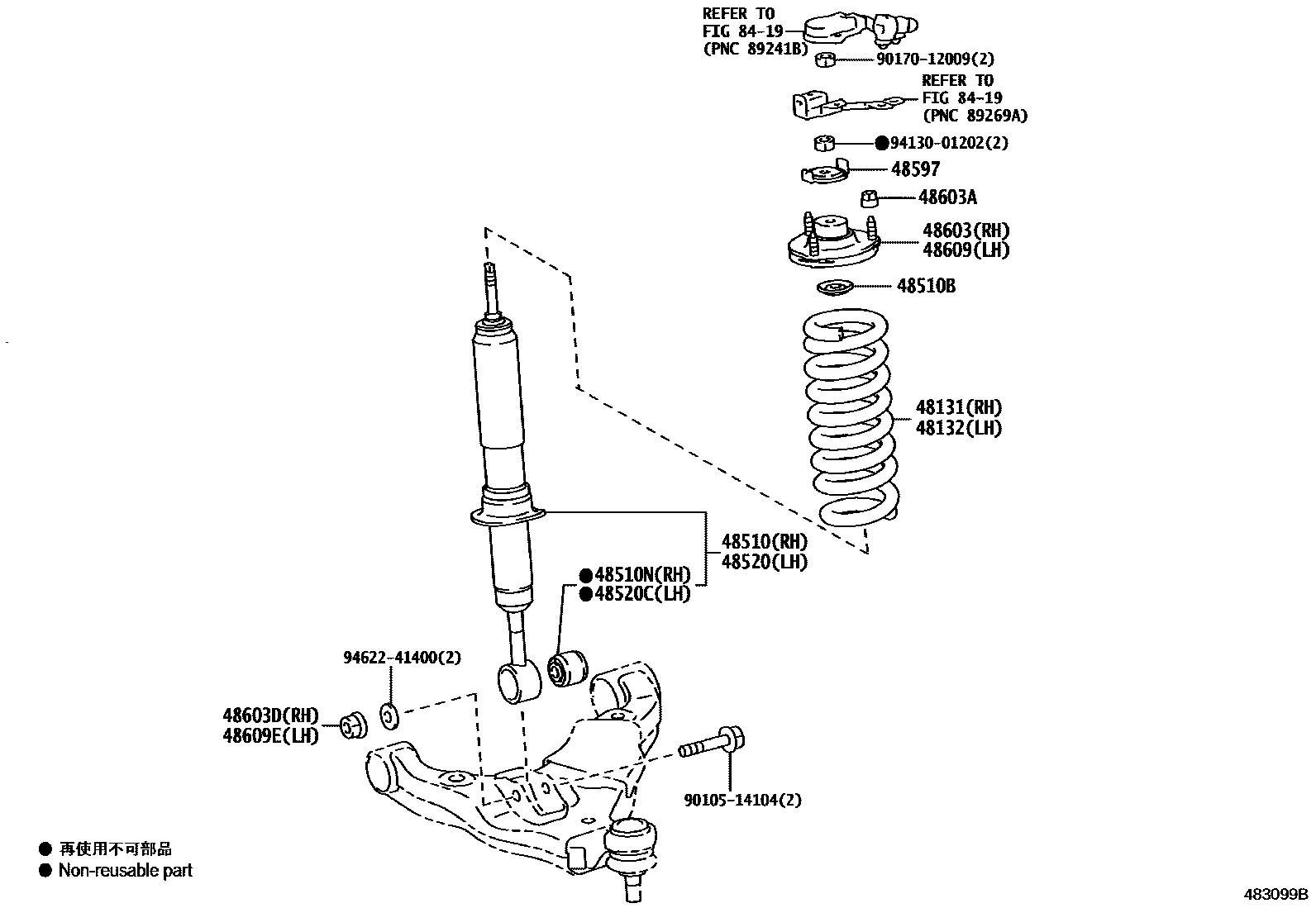

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48131SPRING, FRONT COIL, RH

main48131-60J00iURJ150200911-201908

48132SPRING, FRONT COIL, LH

main48131-60G90iURJ150200911-201908

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-60260iURJ150200911-201908

MARK 48510-60260

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02205iURJ150200911-201908

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main48536-60010iURJ150200911-201908

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-60260iURJ150200911-201908

MARK 48510-60260

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main48536-60010iURJ150200911-201908

48597RETAINER, SHOCK ABSORBER CUSHION

main48597-60140iURJ150200911-201908

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-60090iURJ150200911-201908

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10014iURJ150201308-201908

main90178-10015iURJ150200911-201308

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90170-14032iURJ150200911-201908

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-60090iURJ150200911-201908

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90170-14032iURJ150200911-201908

8419

9010514104

main90105-14104

9017012009

main90170-12009

9413001202

main94130-01202

9462241400

main94622-41400

18 parts on this diagram · 2 diagrams in section
