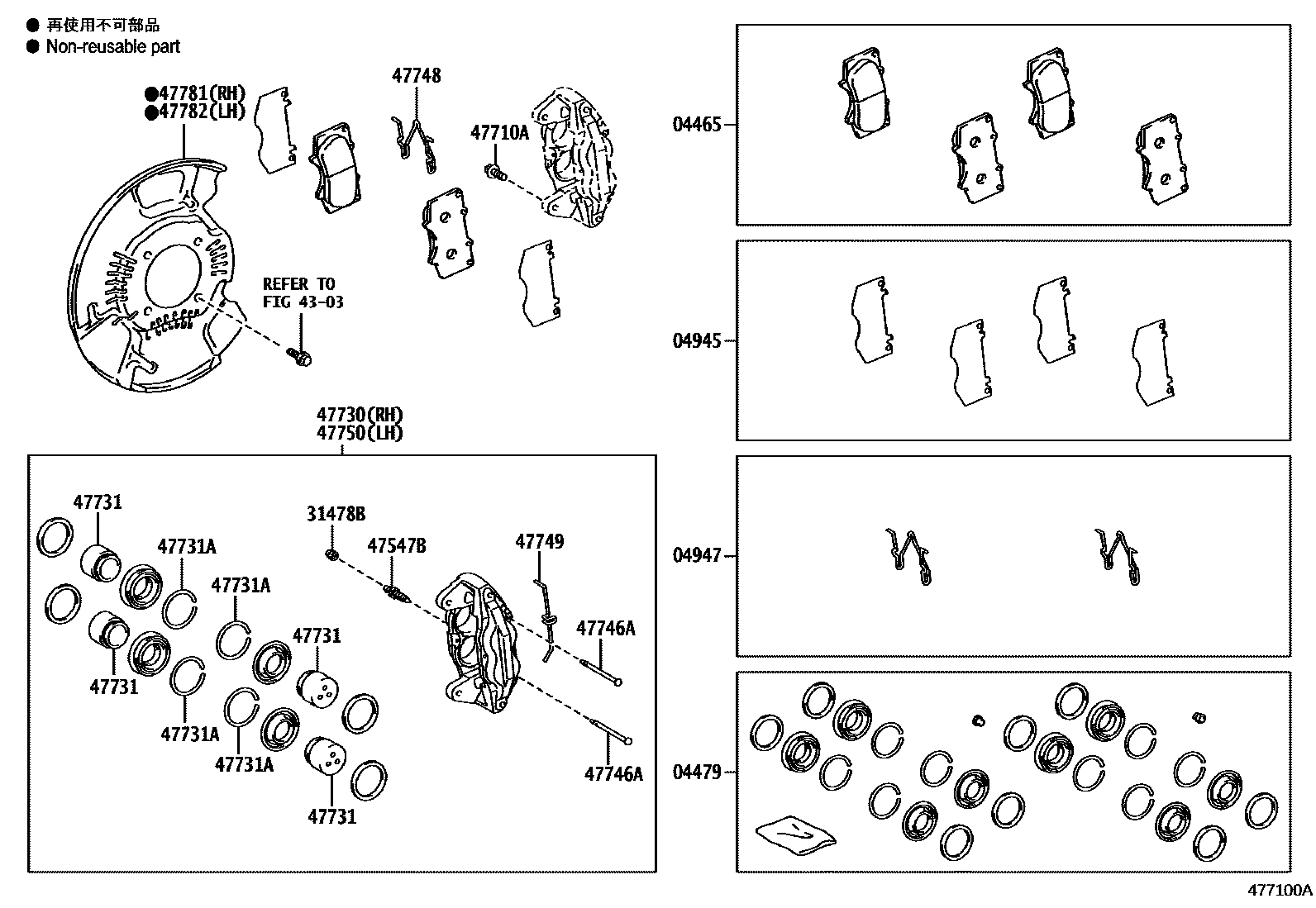

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-35330iURJ150¥10,300201908

MARK ADVICS VC070H

main04465-60320iURJ150¥10,300200911-201908

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-60080iURJ150¥3,410200911-201908

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-60090iURJ150¥690200911-201908

04947FITTING KIT, DISC BRAKE, FRONT

main04947-35050iURJ150¥390200911-201908

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iURJ150¥160200911-201908

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-35020iURJ150¥220200911-201908

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175iURJ150¥160200911-201505

*12-1.25PX35-27

main90105-14198iURJ150¥190201505-201908

*14-1.5PX35-30.5

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-60300iURJ150¥58,100200911-201505

main47730-60350iURJ150¥36,500201505-201908

47731PISTON, FRONT DISC BRAKE

main47731-60300iURJ150¥1,170200911-201908

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-53002iURJ150¥80200911-201908

47746APIN, W/HOLE(FOR DISC BRAKE PAD, FRONT)

main47735-60300iURJ150¥200200911-201908

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-35010iURJ150¥200200911-201908

47749CLIP, PIN HOLD

main47743-60280iURJ150¥180200911-201908

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-60300iURJ150¥58,100200911-201505

main47750-60350iURJ150¥36,500201505-201908

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-60140iURJ150¥3,030200911-201908

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-60140iURJ150¥3,030200911-201908

17 parts on this diagram · 1 diagram in section
