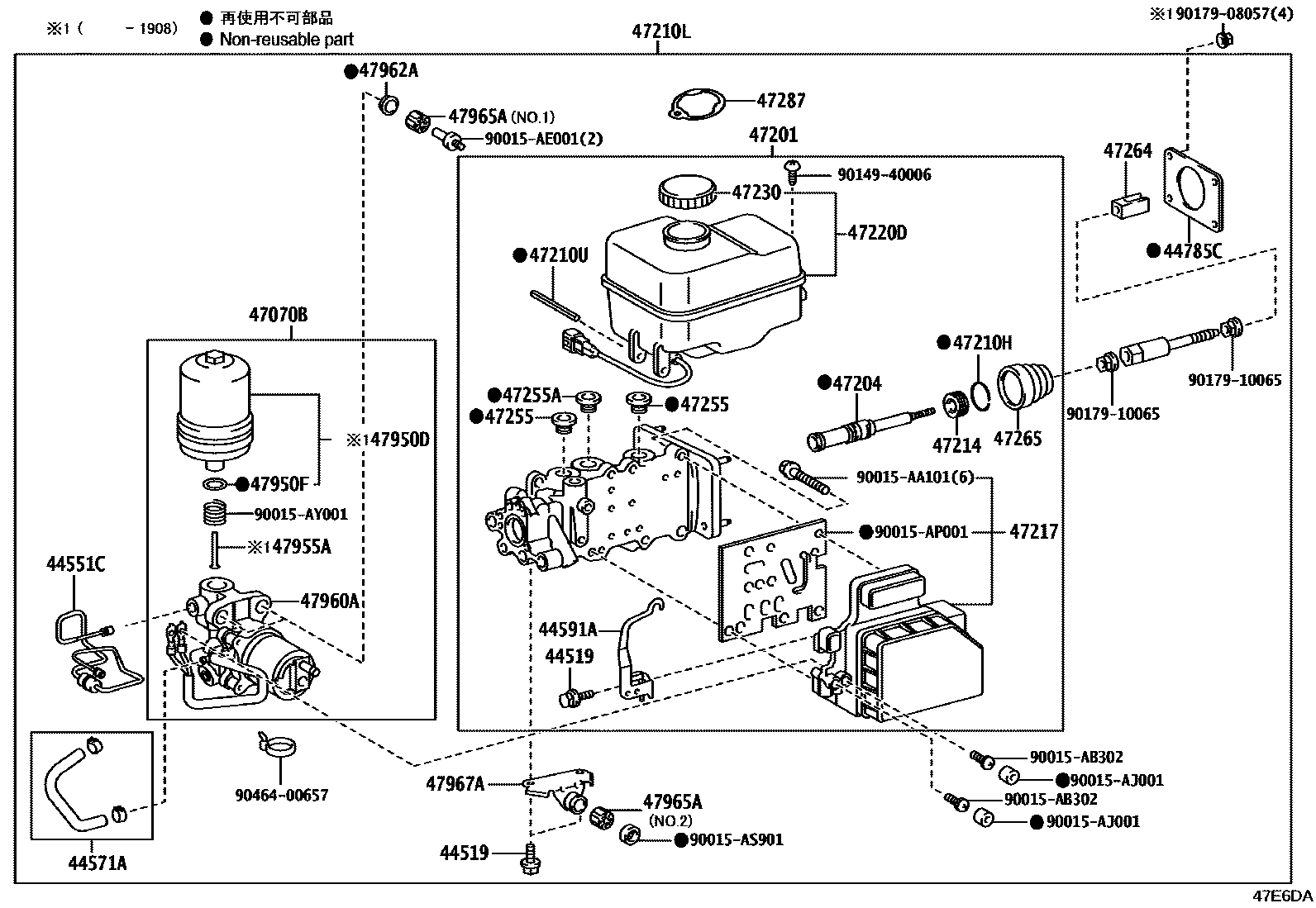

BRAKE MASTER CYLINDER

44519BOLT, BRAKE ACTUATOR

main44519-24020×3i201308-201908

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-60060×2i201908

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-60020i201308-201908

44591ABRACKET, BRAKE ACTUATOR, NO.1

main44591-35070×2i201908

44785CGASKET, BRAKE BOOSTER

main44785-60020i200911-201308

47070BPUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR

main47070-60050i200911-201308

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47025-60310supersedes 47025-60750i200911-201010

BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR)

main47025-60311supersedes 47025-60450i201010-201108

BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR)

main47025-60312supersedes 47025-60490i201108-201206

BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR)

main47025-60313supersedes 47025-60491i201206-201308

BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR)

main47025-60590supersedes 47025-60610i201308-201508

BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)

main47025-60591supersedes 47025-60611i201508-201908

BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)

main47025-60600supersedes 47025-60750i201308-201503

PRE-COLLISION SYSTEM-WITH(*MRT)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)

main47025-60601supersedes 47025-60610i201503-201508

PRE-COLLISION SYSTEM-WITH(*MRT)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)

main47025-60602supersedes 47025-60611i201508-201908

PRE-COLLISION SYSTEM-WITH(*MRT)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)

main47025-60620supersedes 47025-60750i201308-201503

PRE-COLLISION SYSTEM-WITH(*MRT)&BACK MONITOR-WITH(WITH/GUIDE)

main47025-60621supersedes 47025-60610i201503-201508

PRE-COLLISION SYSTEM-WITH(*MRT)&BACK MONITOR-WITH(WITH/GUIDE)

main47025-60622supersedes 47025-60611i201508-201908

PRE-COLLISION SYSTEM-WITH(*MRT)&BACK MONITOR-WITH(WITH/GUIDE)

main47025-60720supersedes 47025-60750i201908

MEMORY PACK & OFF ROAD PACKAGE&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)

main47025-60730supersedes 47025-60750i201908

ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +

main47025-60740supersedes 47025-60750i201908

MEMORY PACK & OFF ROAD PACKAGE&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)

47204PISTON, MASTER CYLINDER

main47026-60090i201908

47210HRING, SNAP(FOR BRAKE MASTER CYLINDER)

main90520-32012i200911-201308

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-60270supersedes 47050-60A30i200911-201010

BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR)

main47050-60271supersedes 47050-60410i201010-201108

BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR)

main47050-60272supersedes 47050-60450i201108-201206

BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR)

main47050-60273supersedes 47050-60451i201206-201308

BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR)

main47050-60550supersedes 47050-60570i201308-201508

BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)

main47050-60551supersedes 47050-60571i201508-201908

BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)

main47050-60560supersedes 47050-60A30i201308-201503

PRE-COLLISION SYSTEM-WITH(*MRT)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)

main47050-60561supersedes 47050-60570i201503-201508

PRE-COLLISION SYSTEM-WITH(*MRT)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)

main47050-60562supersedes 47050-60571i201508-201908

PRE-COLLISION SYSTEM-WITH(*MRT)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)

main47050-60580supersedes 47050-60A30i201308-201503

PRE-COLLISION SYSTEM-WITH(*MRT)&BACK MONITOR-WITH(WITH/GUIDE)

main47050-60581supersedes 47050-60570i201503-201508

PRE-COLLISION SYSTEM-WITH(*MRT)&BACK MONITOR-WITH(WITH/GUIDE)

main47050-60582supersedes 47050-60571i201508-201908

PRE-COLLISION SYSTEM-WITH(*MRT)&BACK MONITOR-WITH(WITH/GUIDE)

main47050-60A00supersedes 47050-60A30i201908

MEMORY PACK & OFF ROAD PACKAGE&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)

main47050-60A10supersedes 47050-60A30i201908

ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +

main47050-60A20supersedes 47050-60A30i201908

MEMORY PACK & OFF ROAD PACKAGE&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803i201308-201908

47214PLUG, MASTER CYLINDER

main47027-60090i200911-201308

47217SOLENOID, MASTER CYLINDER

main47217-60180supersedes 47217-60780i200911-201010

BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR)

main47217-60181supersedes 47217-60131i201010-201108

BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR)

main47217-60182supersedes 47217-60340i201108-201206

BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR)

main47217-60183supersedes 47217-60341i201206-201308

BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR)

main47217-60480supersedes 47217-60500i201308-201508

BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)

main47217-60490supersedes 47217-60780i201308-201503

PRE-COLLISION SYSTEM-WITH(*MRT)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)

main47217-60491supersedes 47217-60500i201503-201508

PRE-COLLISION SYSTEM-WITH(*MRT)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)

main47217-60492supersedes 47217-60501i201508-201908

PRE-COLLISION SYSTEM-WITH(*MRT)&BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)

main47217-60510supersedes 47217-60780i201308-201503

PRE-COLLISION SYSTEM-WITH(*MRT)&BACK MONITOR-WITH(WITH/GUIDE)

main47217-60511supersedes 47217-60500i201503-201508

PRE-COLLISION SYSTEM-WITH(*MRT)&BACK MONITOR-WITH(WITH/GUIDE)

main47217-60512supersedes 47217-60501i201508-201908

PRE-COLLISION SYSTEM-WITH(*MRT)&BACK MONITOR-WITH(WITH/GUIDE)

main47217-60690×2supersedes 47217-60780i201908

MEMORY PACK & OFF ROAD PACKAGE&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)

main47217-60760×2supersedes 47217-60780i201908

ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +

main47217-60770×2supersedes 47217-60780i201908

MEMORY PACK & OFF ROAD PACKAGE&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-60180i200911-201308

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-24010

main47230-47090

main47230-60210

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010×2i201308-201908

47255AGROMMET, MASTER CYLINDER RESERVOIR, NO.2

main31417-35010i200911-201308

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-60020i200911-201308

47265BOOT, MASTER CYLINDER

main90029-70001i200911-201308

47287LABEL, BRAKE FLUID INFORMATION

main47287-60180

main47287-60181

main47287-60182

47950DACCUMULATOR ASSY, BRAKE BOOSTER

main47950-60020i200911-201308

47950FRING, O(FOR BRAKE BOOSTER ACCUMULATOR)

main90301-13014i200911-201308

47955APIPE, BRAKE BOOSTER ACCUMULATOR

main47955-60010i200911-201308

47960APUMP ASSY, BRAKE BOOSTER

main47960-60050i200911-201308

47962ACOLLAR, BRAKE BOOSTER PUMP

main47962-60090×2i200911-201308

47965ABUSH, BRAKE BOOSTER PUMP

main47965-30010×2i200911-201308

NO.1

main90015-AL001i201308-201908

NO.2

47967ABRACKET, BRAKE BOOSTER PUMP, NO.1

main47967-60090i201908

90015AA101

main90015-AA101

90015AB302

main90015-AB302

90015AE001

main90015-AE001

90015AJ001

main90015-AJ001

90015AP001

main90015-AP001

90015AS901

main90015-AS901

90015AY001

main90015-AY001

9014940006

main90149-40006

9017908057

main90179-08057

9017910065

main90179-10065

9046400657

main90464-00657

38 parts on this diagram · 1 diagram in section
