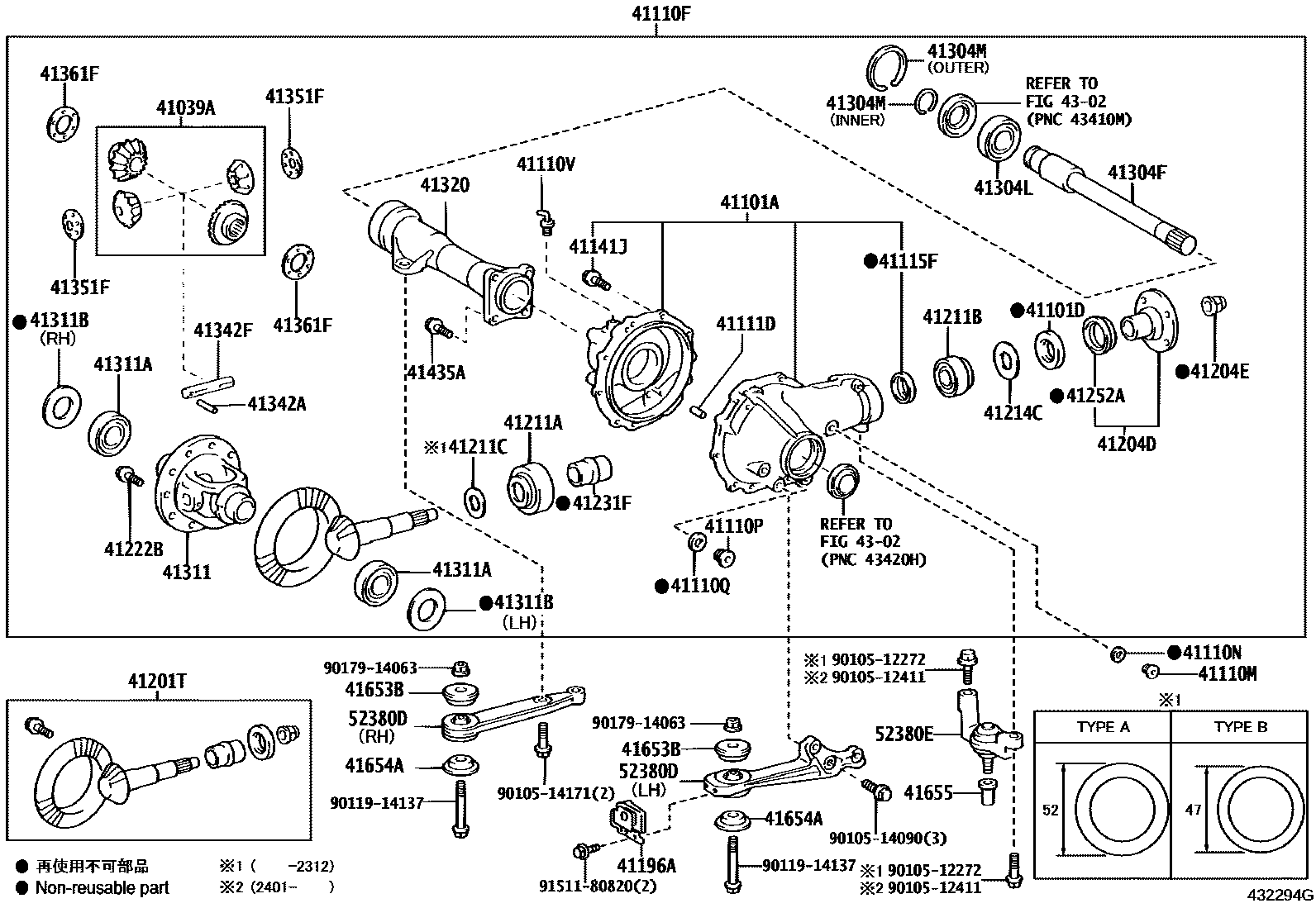

FRONT AXLE HOUSING & DIFFERENTIAL
41039AGEAR KIT, DIFFERENTIAL
41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
*FGR=43:11=3.909
41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG
41110PPLUG, FRONT DIFFERENTIAL DRAIN
41110VUNION (FOR FRONT DIFFERENTIAL)
41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)
41115FRING, FRONT DIFFERENTIAL OIL STORAGE
41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
*10-1.25PX24.5-18
41196ADAMPER, FRONT DIFFERENTIAL DYNAMIC
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
*FGR=43:11=3.909
*FGR=43:11=3.909
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211CGEAR, DIFFERENTIAL RING
OD=47,T=1.70,TYPE B:REFER ILLUST.
OD=47,T=1.73,TYPE B:REFER ILLUST.
OD=47,T=1.76,TYPE B:REFER ILLUST.
OD=47,T=1.79,TYPE B:REFER ILLUST.
OD=47,T=1.82,TYPE B:REFER ILLUST.
OD=47,T=1.85,TYPE B:REFER ILLUST.
OD=47,T=1.88,TYPE B:REFER ILLUST.
OD=47,T=1.91,TYPE B:REFER ILLUST.
OD=47,T=1.94,TYPE B:REFER ILLUST.
OD=47,T=1.97,TYPE B:REFER ILLUST.
OD=47,T=2.00,TYPE B:REFER ILLUST.
OD=47,T=2.03,TYPE B:REFER ILLUST.
OD=47,T=2.06,TYPE B:REFER ILLUST.
OD=47,T=2.09,TYPE B:REFER ILLUST.
OD=47,T=2.12,TYPE B:REFER ILLUST.
OD=47,T=2.15,TYPE B:REFER ILLUST.
OD=47,T=2.18,TYPE B:REFER ILLUST.
OD=47,T=2.21,TYPE B:REFER ILLUST.
OD=47,T=2.24,MARK 01,TYPE B:REFER ILLUST.
OD=47,T=2.27,MARK 02,TYPE B:REFER ILLUST.
OD=47,T=2.30,MARK 03,TYPE B:REFER ILLUST.
OD=47,T=2.33,MARK 04,TYPE B:REFER ILLUST.
OD=52,T=1.70
OD=52,T=1.70,TYPE A:REFER ILLUST.
OD=52,T=1.73,TYPE A:REFER ILLUST.
OD=52,T=1.73
OD=52,T=1.76,TYPE A:REFER ILLUST.
OD=52,T=1.76
OD=52,T=1.79,TYPE A:REFER ILLUST.
OD=52,T=1.79
OD=52,T=1.82,TYPE A:REFER ILLUST.
OD=52,T=1.82
OD=52,T=1.85,TYPE A:REFER ILLUST.
OD=52,T=1.85
OD=52,T=1.88,TYPE A:REFER ILLUST.
OD=52,T=1.88
OD=52,T=1.91,TYPE A:REFER ILLUST.
OD=52,T=1.91
OD=52,T=1.94
OD=52,T=1.94,TYPE A:REFER ILLUST.
OD=52,T=1.97,TYPE A:REFER ILLUST.
OD=52,T=1.97
OD=52,T=2.00
OD=52,T=2.00,TYPE A:REFER ILLUST.
OD=52,T=2.03
OD=52,T=2.03,TYPE A:REFER ILLUST.
OD=52,T=2.06,TYPE A:REFER ILLUST.
OD=52,T=2.06
OD=52,T=2.09,TYPE A:REFER ILLUST.
OD=52,T=2.09
OD=52,T=2.12
OD=52,T=2.12,TYPE A:REFER ILLUST.
OD=52,T=2.15
OD=52,T=2.15,TYPE A:REFER ILLUST.
OD=52,T=2.18,TYPE A:REFER ILLUST.
OD=52,T=2.18
OD=52,T=2.21,TYPE A:REFER ILLUST.
OD=52,T=2.21
OD=52,T=2.24,TYPE A:REFER ILLUST.
OD=52,T=2.24
OD=52,T=2.27
OD=52,T=2.27,TYPE A:REFER ILLUST.
OD=52,T=2.30,TYPE A:REFER ILLUST.
OD=52,T=2.30
OD=52,T=2.33,TYPE A:REFER ILLUST.
OD=52,T=2.33
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)
41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
INNER
OUTER
41311CASE, FRONT DIFFERENTIAL
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
T=1.60,LH
T=1.66,LH
T=1.72,LH
T=1.78,LH
T=1.84,LH
T=1.90,LH
T=1.96,LH
T=2.02,LH
T=2.08,LH
T=2.14,LH
T=1.60,RH
T=1.66,RH
T=1.72,RH
T=1.78,RH
T=1.84,RH
T=1.90,RH
T=1.96,RH
T=2.02,RH
T=2.08,RH
T=2.14,RH
T=1.58,LH
T=1.62,LH
T=1.64,LH
T=1.68,LH
T=1.70,LH
T=1.74,LH
T=1.76,LH
T=1.80,LH
T=1.82,LH
T=1.86,LH
T=1.88,LH
T=1.92,LH
T=1.94,LH
T=1.98,LH
T=2.00,LH
T=2.04,LH
T=2.06,LH
T=2.10,LH
T=2.12,LH
T=2.16,LH
T=1.58,RH
T=1.62,RH
T=1.64,RH
T=1.68,RH
T=1.70,RH
T=1.74,RH
T=1.76,RH
T=1.80,RH
T=1.82,RH
T=1.86,RH
T=1.88,RH
T=1.92,RH
T=1.94,RH
T=1.98,RH
T=2.00,RH
T=2.04,RH
T=2.06,RH
T=2.10,RH
T=2.12,RH
T=2.16,RH
T=1.44,RH
T=1.46,RH
T=1.48,RH
T=1.50,RH
T=1.52,RH
T=1.54,RH
T=1.56,RH
T=2.18,LH
T=2.20,LH
T=2.22,LH
T=2.24,LH
T=2.26,LH
T=2.28,LH
T=2.30,LH
41320TUBE ASSY, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
41435ABOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING)
*12-1.25PX24-16.5
41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER
41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER
41655NUT, FRONT DIFFERENTIAL MOUNT, NO.1
4302
52380DSUPPORT ASSY, FRONT DIFFERENTIAL
LH
RH
52380ESUPPORT ASSY, DIFFERENTIAL
9010512272
main90105-12272
9010512411
main90105-12411
9010514090
main90105-14090
9010514171
main90105-14171
9011914137
main90119-14137
9017914063
main90179-14063
9151180820
main91511-80820
48 parts on this diagram · 2 diagrams in section
