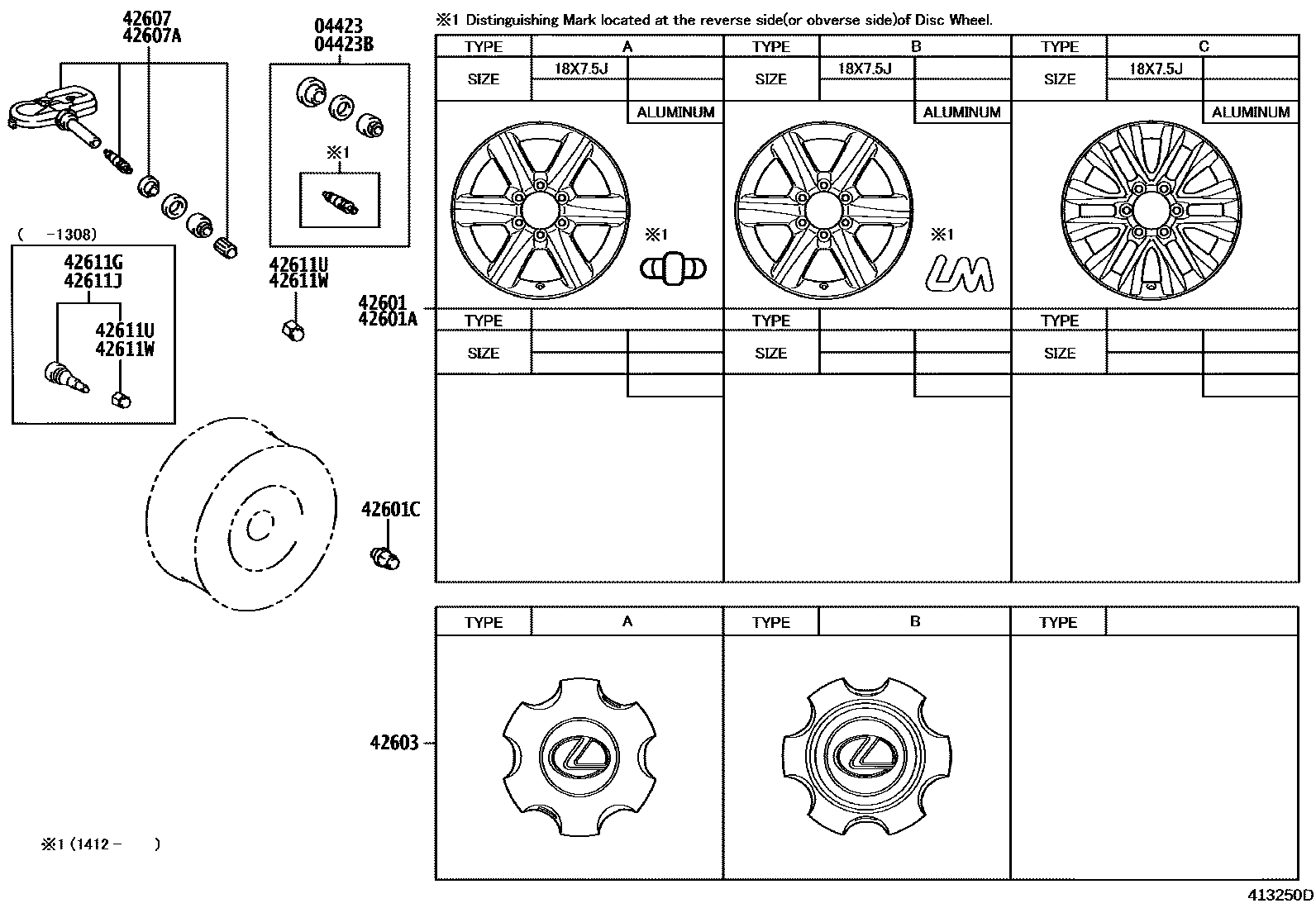

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
18X7.5J,#,TYPE A:REFER ILLUST.
18X7.5J,#,TIRE & DISK WHEEL-265/60R18 7.5J ALUMI,TYPE A:REFER ILLUST.
18X7.5J,#,VIETNAM SPEC,TYPE C:REFER ILLUST.
18X7.5J,#,TYPE C:REFER ILLUST.
18X7.5J,#,VIETNAM SPEC&TIRE & DISC WHEEL-265/60R18 7.5J ALM DARKGRAY METALICPAINT,TYPE C:REFER ILLUST.
18X7.5J,#,TIRE & DISC WHEEL-265/60R18 7.5J ALM DARKGRAY METALICPAINT,TYPE C:REFERILLUST.
18X7.5J,#,TIRE & DISK WHEEL-265/60R18 7.5J,HIGH GROSS PAINTED,TYPE A:REFER ILLUST.
18X7.5J,#,TIRE & DISK WHEEL-265/60R18 7.5J,HIGH GROSS PAINTED,TYPE C:REFER ILLUST.
18X7.5J,#,TIRE & DISK WHEEL-ACCESSORIES M+GUNMETAL P,TYPE C:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
18X7.5J,#,TIRE & DISK WHEEL-265/60R18 7.5J ALUMI,TYPE A:REFER ILLUST.
18X7.5J,#,TYPE A:REFER ILLUST.
18X7.5J,#,VIETNAM SPEC,TYPE C:REFER ILLUST.
18X7.5J,#,TYPE C:REFER ILLUST.
18X7.5J,#,VIETNAM SPEC&TIRE & DISC WHEEL-265/60R18 7.5J ALM DARKGRAY METALICPAINT,TYPE C:REFER ILLUST.
18X7.5J,#,TIRE & DISC WHEEL-265/60R18 7.5J ALM DARKGRAY METALICPAINT,TYPE C:REFERILLUST.
18X7.5J,#,TIRE & DISK WHEEL-265/60R18 7.5J,HIGH GROSS PAINTED,TYPE A:REFER ILLUST.
18X7.5J,#,TIRE & DISK WHEEL-265/60R18 7.5J,HIGH GROSS PAINTED,TYPE C:REFER ILLUST.
18X7.5J,#,TIRE & DISK WHEEL-ACCESSORIES M+GUNMETAL P,TYPE C:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TIRE & DISK WHEEL-265/60R18 7.5J ALUMI,TYPE A:REFER ILLUST.
*ALU,TIRE & DISK WHEEL-265/60R18 7.5J ALUMI,TYPE A:REFER ILLUST.
sub4260B-60201
*CHR,TIRE & DISK WHEEL-265/60R18 7.5J,HIGH GROSS PAINTED,TYPE A:REFER ILLUST.
sub4260B-60271
*ALU,TYPE B:REFER ILLUST.
*CHR,TIRE & DISK WHEEL-265/60R18 7.5J,HIGH GROSS PAINTED,TYPE B:REFER ILLUST.
*ALU,TIRE & DISC WHEEL-265/60R18 7.5J ALM DARKGRAY METALICPAINT,TYPE B:REFER ILLUST.
*ALU,TIRE & DISK WHEEL-ACCESSORIES M+GUNMETAL P,TYPE B:REFER ILLUST.
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
sub42607-30071
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611WCAP, TIRE VALVE (FOR SPARE)
12 parts on this diagram · 3 diagrams in section
