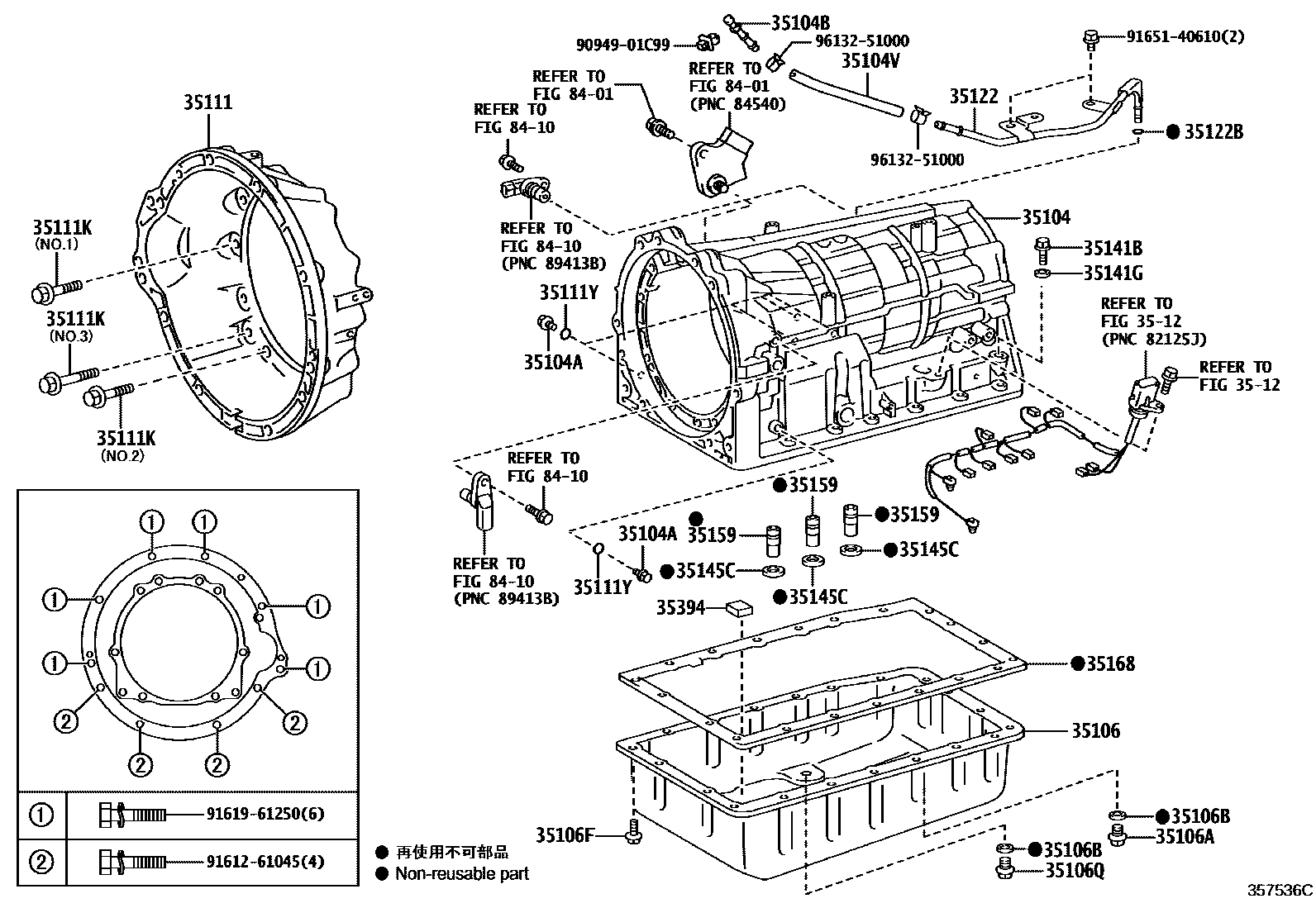

TRANSMISSION CASE & OIL PAN (ATM)

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-60221iURJ150200911-201908

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iURJ150200911-201908

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03188iURJ150200911-201908

35104VHOSE (FOR BREATHER PLUG)

main35121-48030iURJ150200911-201908

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-35170iURJ150200911-201908

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iURJ150200911-201908

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iURJ150200911-201908

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06173iURJ150200911-201908

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iURJ150200911-201908

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-35110iURJ150200911-201908

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232iURJ150200911-201908

*10-1.5PX35-30,NO.1

main90119-10947iURJ150200911-201908

*10-1.50PX35-29.3,NO.2

main90119-12378iURJ150200911-201908

*12-1.75PX38-30,NO.3

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iURJ150200911-201908

3512

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main35122-60020iURJ150200911-201908

35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)

main90301-04014iURJ150200911-201908

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iURJ150200911-201908

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iURJ150200911-201908

35145CGASKET, TRANSAXLE CASE

main35145-60020iURJ150200911-201908

35159GASKET, BRAKE DRUM

main35159-60010iURJ150200911-201908

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-60010iURJ150200911-201908

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iURJ150200911-201908

8401

8410

9094901C99

main90949-01C99

9161261045

main91612-61045

9161961250

main91619-61250

9165140610

main91651-40610

9613251000

main96132-51000

28 parts on this diagram · 1 diagram in section
