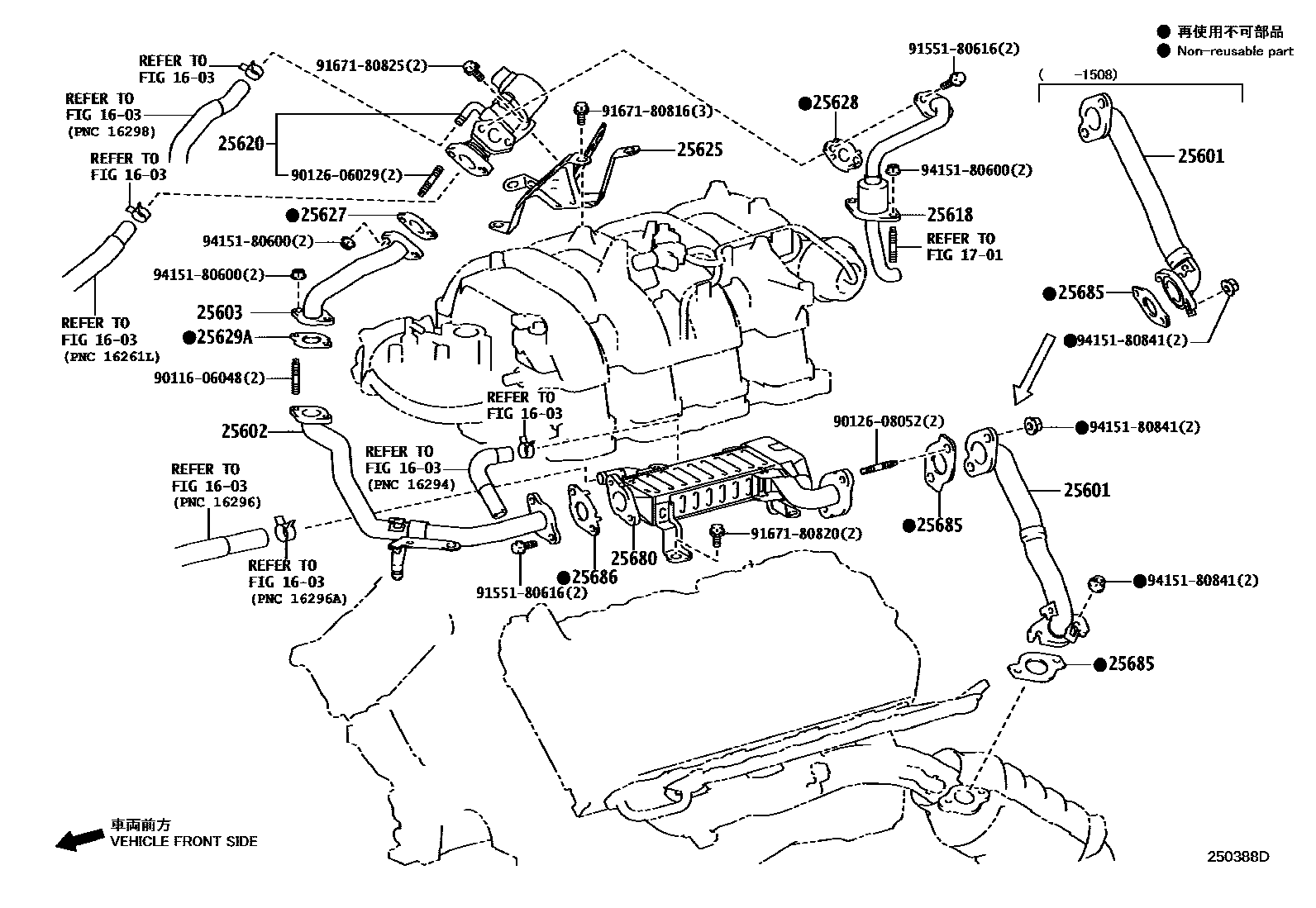

EXHAUST GAS RECIRCULATION SYSTEM

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-38020i1URFE..URJ150200911-201508

main25601-38030i1URFE..URJ150201508-201908

25602PIPE SUB-ASSY, EGR, NO.2

main25602-38010i1URFE..URJ150200911-201908

25603PIPE SUB-ASSY, EGR, NO.3

main25603-38010i1URFE..URJ150200911-201908

25618INLET, EGR

main25618-38020i1URFE..URJ150200911-201908

25620VALVE ASSY, EGR

main25620-38240i1URFE..URJ150200911-201908

25625BRACKET, EGR VALVE

main25625-38010i1URFE..URJ150200911-201908

25627GASKET, EGR VALVE

main25627-38020i1URFE..URJ150200911-201908

25628GASKET, EGR INLET

main25628-38020i1URFE..URJ150200911-201908

25629AGASKET, EGR PIPE, NO.2

main25629-38010i1URFE..URJ150200911-201908

25680COOLER ASSY, EGR

main25680-38010i1URFE..URJ150200911-201908

25685GASKET, EGR COOLER, NO.1

main25685-38010i1URFE..URJ150200911-201908

25686GASKET, EGR COOLER, NO.2

main25686-38010i1URFE..URJ150200911-201908

9011606048

main90116-06048

9012606029

main90126-06029

9012608052

main90126-08052

9155180616

main91551-80616

9167180816

main91671-80816

9167180820

main91671-80820

9167180825

main91671-80825

9415180600

main94151-80600

9415180841

main94151-80841

23 parts on this diagram · 1 diagram in section
