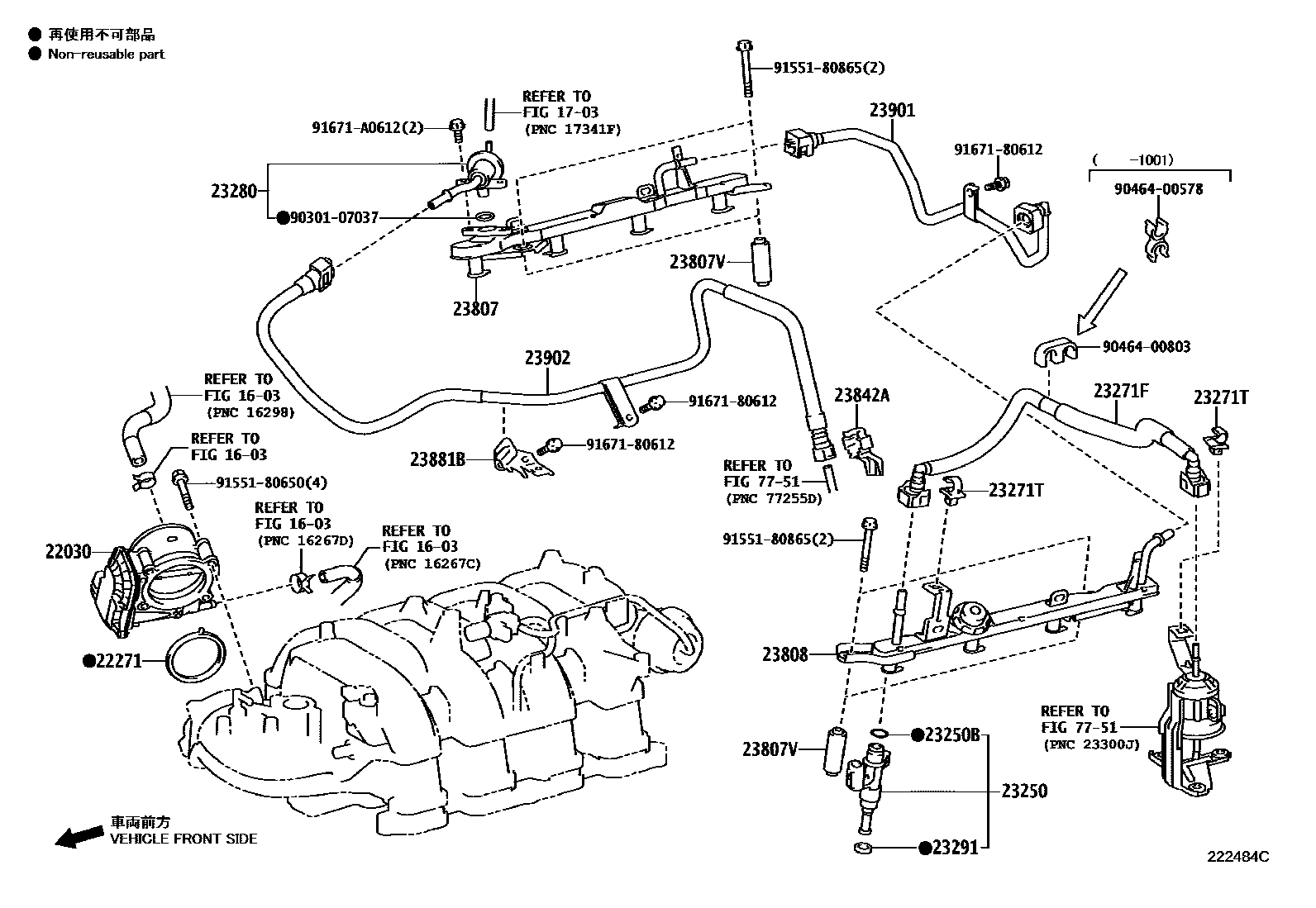

FUEL INJECTION SYSTEM

1603

1703

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-38041i1URFE..URJ150200911-201908

22271GASKET, THROTTLE BODY

main22271-50050i1URFE..URJ150200911-201908

23250INJECTOR ASSY, FUEL

main23209-39165i1URFE..URJ150200911-201908

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i1URFE..URJ150200911-201908

23271FHOSE, FUEL

main23271-38080i1URFE..URJ150200911-201908

23271TCLAMP OR CLIP(FOR FUEL HOSE)

main90469-12012i1URFE..URJ150200911-201908

23280REGULATOR ASSY, FUEL PRESSURE

main23280-38060i1URFE..URJ150200911-201206

sub23280-38061

main23280-38061i1URFE..URJ150201206-201908

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i1URFE..URJ150200911-201908

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-38130i1URFE..URJ150200911-201205

sub23814-38131

main23814-38131i1URFE..URJ150201205-201908

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-38020i1URFE..URJ150200911-201908

23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2

main23808-38020i1URFE..URJ150200911-201205

sub23808-38021

main23808-38021i1URFE..URJ150201205-201908

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-50010i1URFE..URJ150200911-201908

23881BBRACKET, FUEL HOSE

main23881-38010i1URFE..URJ150200911-201908

23901TUBE SUB-ASSY, FUEL

main23901-38040i1URFE..URJ150200911-201908

23902TUBE SUB-ASSY, FUEL

main23902-38070i1URFE..URJ150200911-201908

7751

9030107037

main90301-07037

9046400578

main90464-00578

9046400803

main90464-00803

9155180650

main91551-80650

9155180865

main91551-80865

9167180612

main91671-80612

91671A0612

main91671-A0612

25 parts on this diagram · 1 diagram in section
