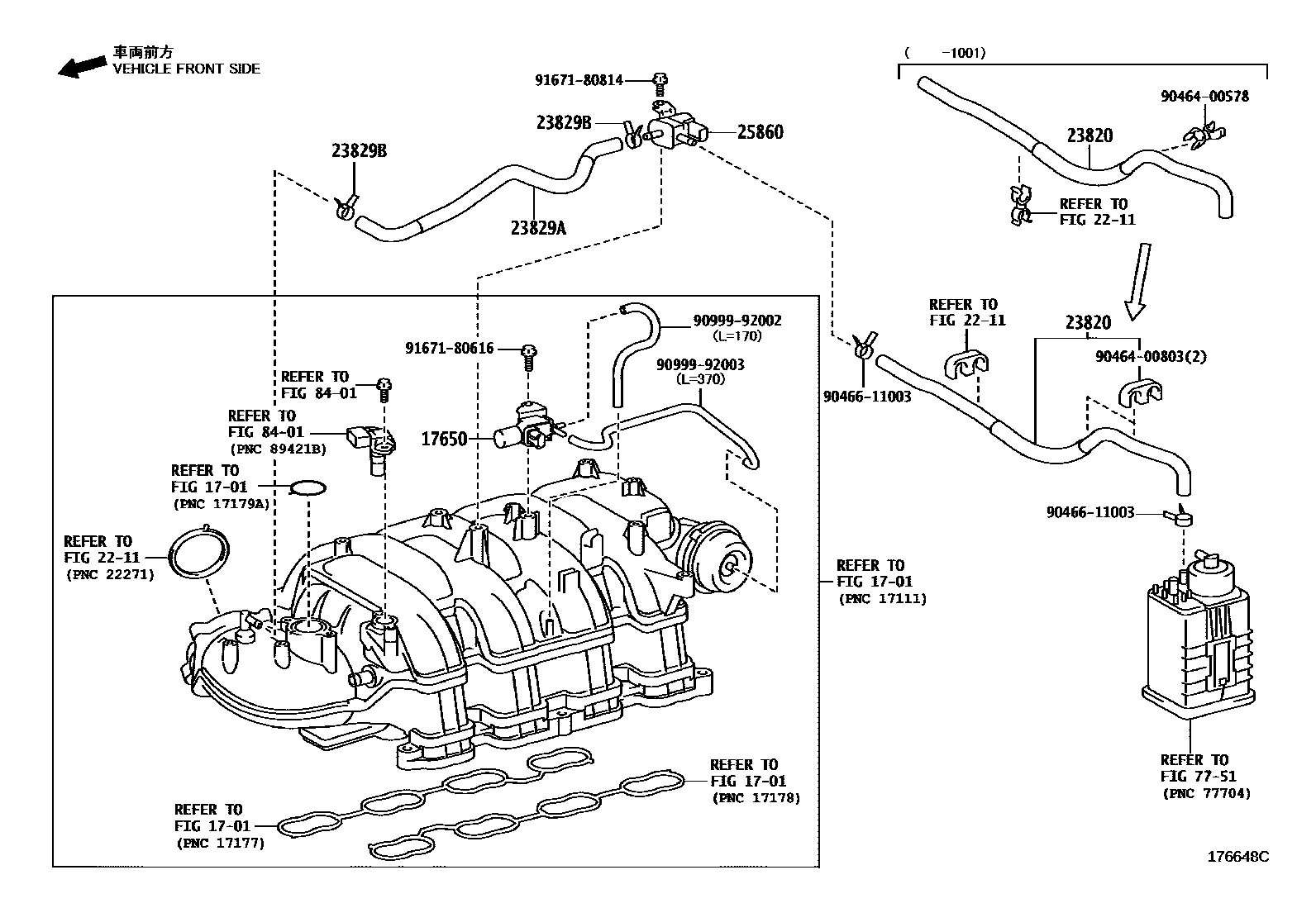

VACUUM PIPING

1701

17650VALVE ASSY, VACUUM SWITCHING

main25860-38010i1URFE..URJ150¥3,840200911-201908

2211

23820HOSE ASSY, FUEL VAPOR FEED

main23820-38020i1URFE..URJ150200911-201001

sub23820-38021

main23820-38021i1URFE..URJ150201001-201908

23829AHOSE, FUEL VAPOR FEED

main23829-38060i1URFE..URJ150¥1,290200911-202103

sub23829-38061¥1,290

main23829-38061i1URFE..URJ150¥1,290202104

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96132-51300i1URFE..URJ150¥120200911-201908

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31060i1URFE..URJ150¥3,840200911-201908

7751

8401

9046400578

main90464-00578¥120

9046400803

main90464-00803¥110

9046611003

main90466-11003¥100

9099992002

main90999-92002¥460

9099992003

main90999-92003¥520

9167180616

main91671-80616¥60

9167180814

main91671-80814¥80

16 parts on this diagram · 1 diagram in section
