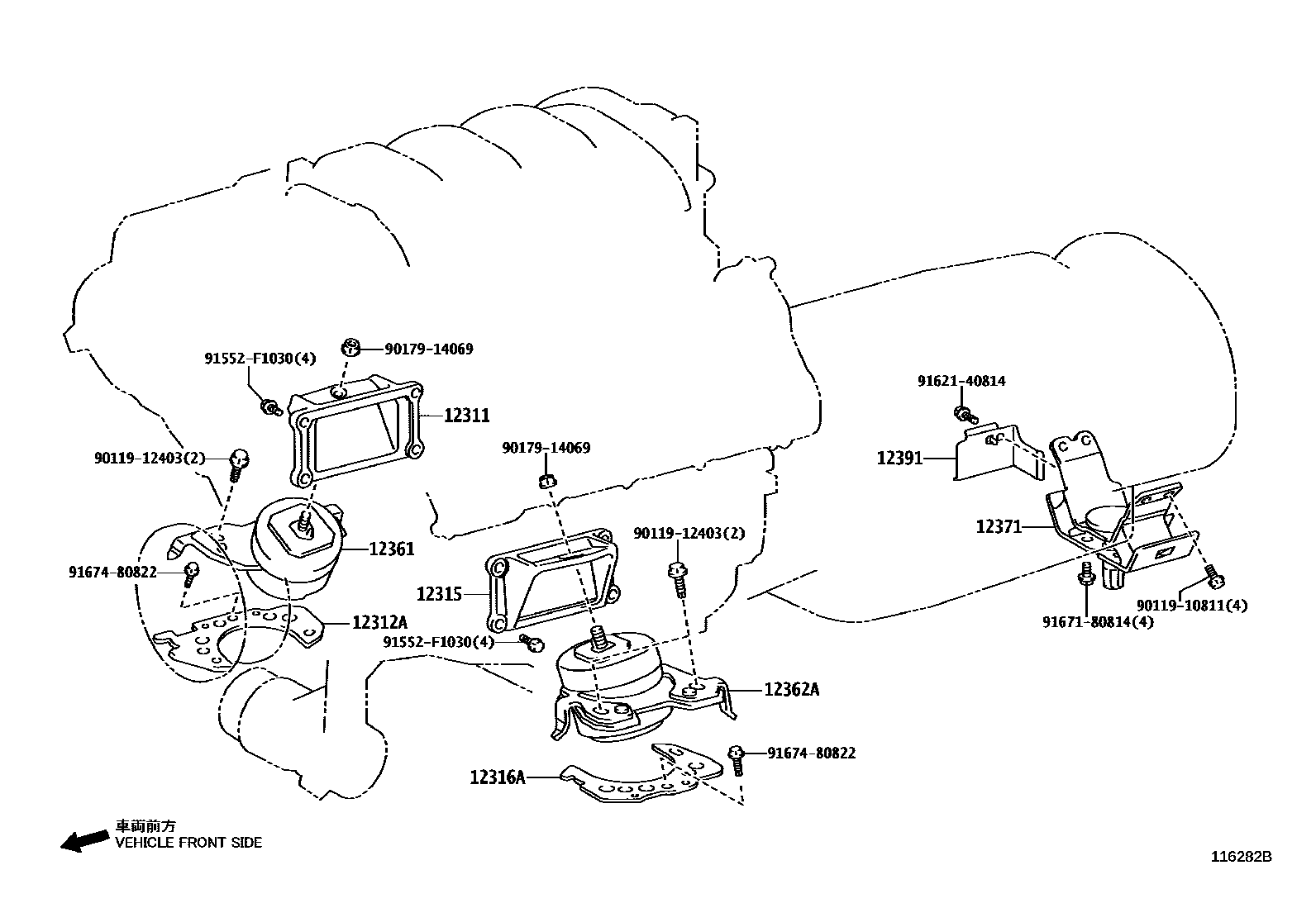

MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-38030i1URFE..URJ150200911-201908

12312ABRACKET, ENGINE MOUNTING, FRONT NO.2 RH

main12312-38030i1URFE..URJ150200911-201908

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-38020i1URFE..URJ150200911-201908

12316ABRACKET, ENGINE MOUNTING, FR NO.2 LH

main12316-38030i1URFE..URJ150200911-201908

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-38260i1URFE..URJ150200911-201908

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12362-38020i1URFE..URJ150200911-201908

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-38100i1URFE..URJ150200911-201908

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-50080i1URFE..URJ150200911-201908

9011910811

main90119-10811

9011912403

main90119-12403

9017914069

main90179-14069

91552F1030

main91552-F1030

9162140814

main91621-40814

9167180814

main91671-80814

9167480822

main91674-80822

15 parts on this diagram · 1 diagram in section
