STANDARD TOOL

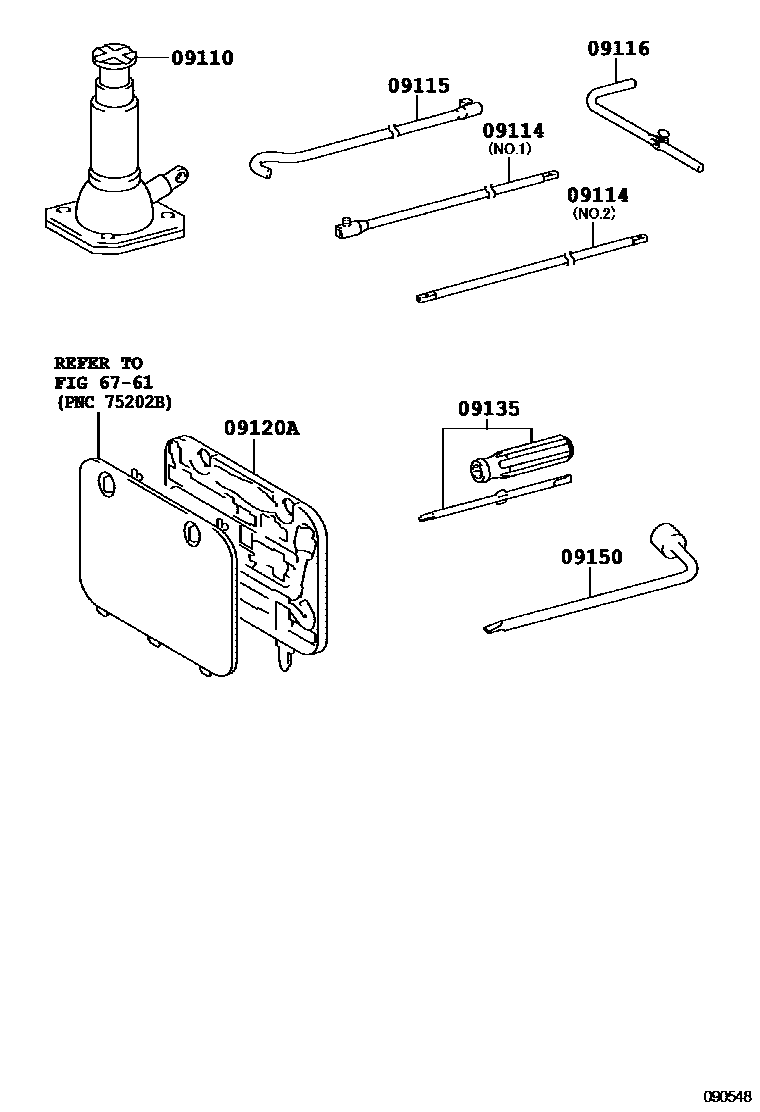

Parts diagram

09110JACK ASSY

main09111-60130i201308-201602

main09111-60131i201908-202108

main09111-60132i202109

main09111-60140i200911-201105

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-35040i201908

NO.2

main09114-35050i200911-201308

NO.1

09115ROD SUB-ASSY, JACK HANDLE

main09115-35110i200911-201308

09116LEVER, JACK HANDLE

main09116-35080i200911-201308

main09116-60020i201709-201908

09120ACASE, TOOL

main09120-60220i200911-201308

09135DRIVER, SCREW

main09135-50060i201203-201308

main99915-10700i200911-201202

09150WRENCH, HUB NUT BOX

main09150-60040i200911-201308

main09150-60050i202208

6761

8 parts on this diagram · 1 diagram in section
