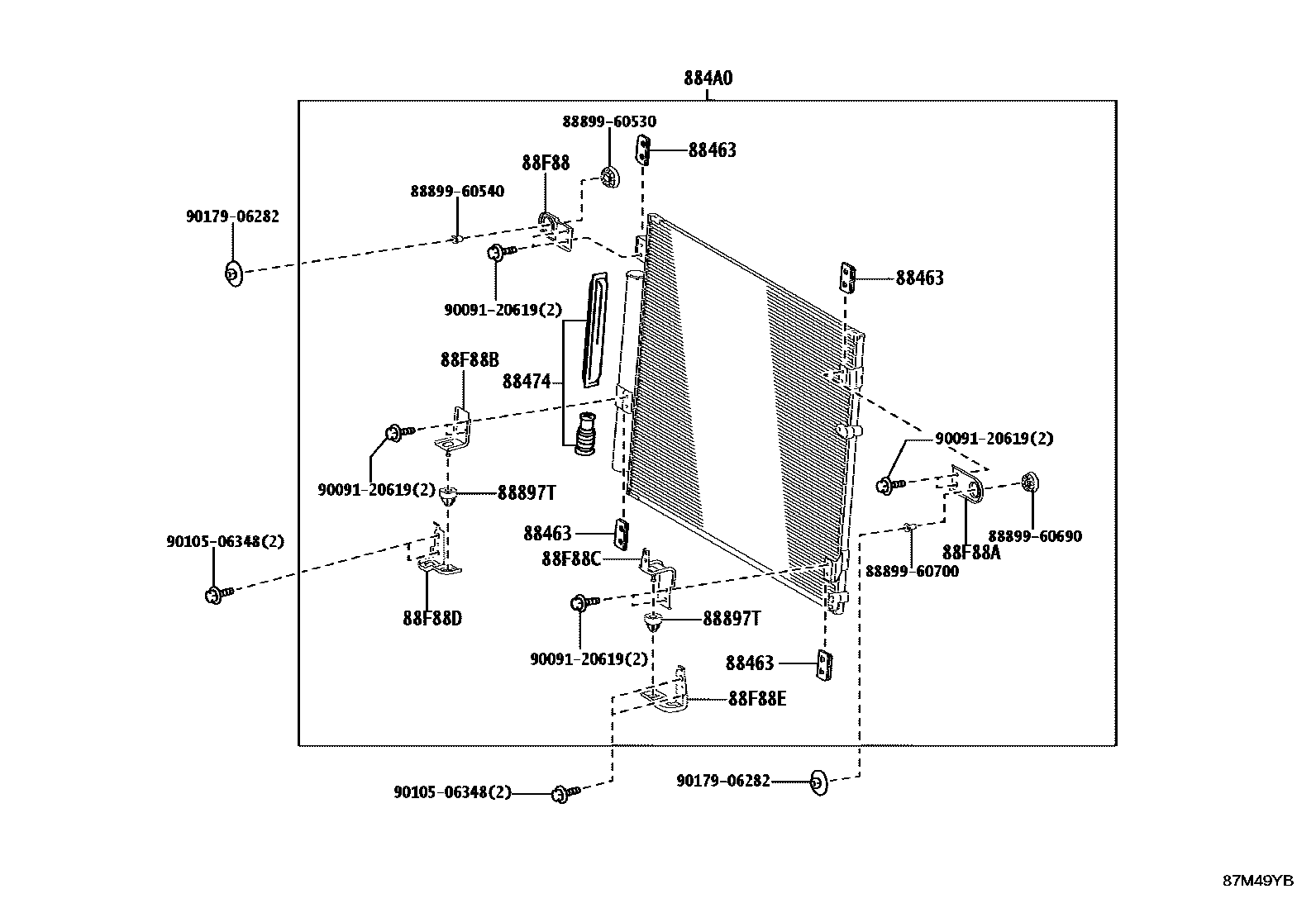

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER & FUN SHROUD 0002 1CONDENSER & FUN SHROUD 0003 1CONDENSER & FUN SHROUD 0004 1FRONT(DUAL) 0005 1FRONT(DUAL) 0006 1FRONT(SINGLE) 0007 1FRONT(SINGLE) 0008 1FRONT(DUAL) 0009 1FRONT(SINGLE) 0010 1REAR,W(REAR AIC) & W/O(COOL B0011 1REAR,W(REAR AIC & COOL BOX) 0012 1REAR,W/O(REAR AIC) & W(COOL B

88463BRACKET, COOLER CONDENSER, NO.1

main88463-37370iTJH252202402

88474DRYER, COOLER

main88474-12010iVJA252202402

main88474-12020iTJH252202403

884A0CONDENSER ASSY, COOLER

main884A0-60070iVJA252..ARL202402

main884A0-60090iVJA252..LHD202402

main884A0-60100iTJH252202403

88897TGROMMET, COOLER

main88899-60550iVJA252202402

88F88BRACKET, CONDENSER, NO.1

main88688-60C40iVJA252202402

main88688-60F80iTJH252202403

88F88ABRACKET, CONDENSER, NO.2

main88688-60C50iVJA252202402

main88688-60F90iTJH252202403

88F88BBRACKET, CONDENSER, NO.3

main88688-60C60iVJA252202402

main88688-60G00iTJH252202403

88F88CBRACKET, CONDENSER, NO.4

main88688-60C70iVJA252202402

main88688-60G10iTJH252202403

88F88DBRACKET, CONDENSER, NO.5

main88688-60C80iVJA252202402

88F88EBRACKET, CONDENSER, NO.6

main88688-60C90iVJA252202402

8889960530COVER, EVAPORATOR

main88899-60530

8889960540COVER, EVAPORATOR

main88899-60540

8889960690COVER, EVAPORATOR

main88899-60690

8889960700COVER, EVAPORATOR

main88899-60700

9009120619

main90091-20619

9010506348

main90105-06348

9017906282

main90179-06282

17 parts on this diagram · 12 diagrams in section
