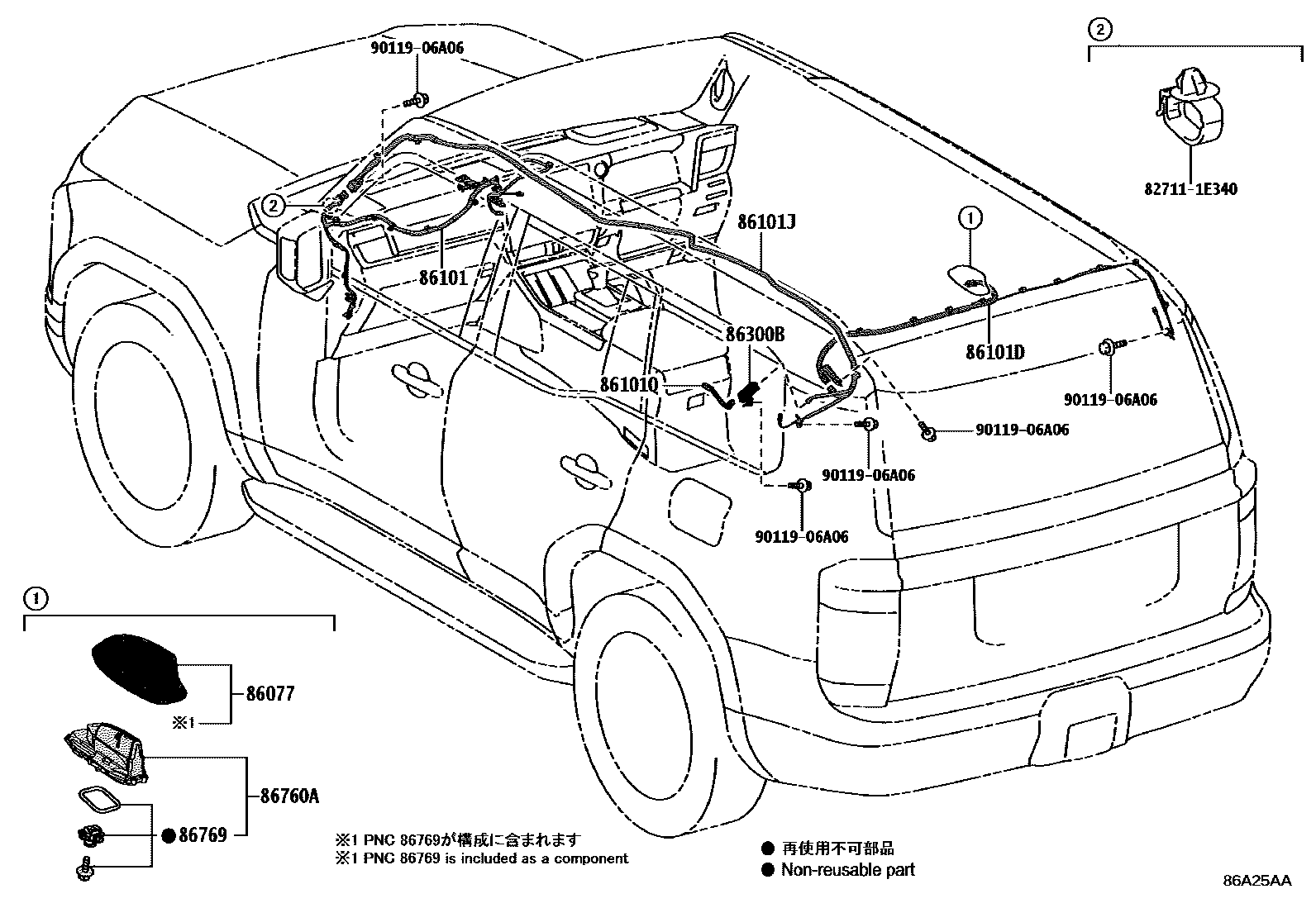

ANTENNA

0001 1 0002 1

86077COVER KIT, ANTENNA

main86077-48060-A1iTJH252,VJA252202402

SONIC QUARTZ,085

main86077-48060-B0iTJH252,VJA252202402

SONIC TITANIUM,1J7

main86077-48060-B3iTJH252,VJA252202402

MERCURY GRAY MC.,1H9

main86077-48060-B5iTJH252,VJA252202402

TITANIUM CARBIDE GRAY,1L8

main86077-48060-C0iTJH252,VJA252202402

GRAPHITE BLACK GF.,223

main86077-48060-C1iTJH252,VJA252202402

BLACK,M06 ,M07 ,M08 ,M09

main86077-48060-G0iTJH252,VJA252202402

TERRANE KHAKI M.M.,6X4

main86077-48060-J1iTJH252,VJA252202402

DEEP BLUE MC.,8X5

86101CORD SUB-ASSY, ANTENNA

main86101-6AC80iVJA252..GEN202402

main86101-6AD10iVJA252..ARL202402

main86101-6AD20iTJH252202403

main86101-6AD50iVJA252..RUS202402

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-6AB20iVJA252..RUS202402

main86101-6AB90iVJA252..GEN202402

main86101-6AC00iTJH252202403

main86101-6AC20iVJA252..ARL202402

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-6AE40iTJH252202403

main86101-6AE50iVJA252..GEN202402

MONGOLIA SPEC

main86101-6AE80iVJA252..ARL,RUS202402

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-60X20iTJH252,VJA252202402

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-62040iTJH252,VJA252202402

86760AANTENNA ASSY, TELEPHONE

main86760-42040iVJA252..RUS202402

main86760-42050iVJA252..ARL,GEN202402

main86760-42080iTJH252202403

86769HOUSING, ROOF ANTENNA

main86769-K0010iTJH252,VJA252202402

827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E340

9011906A06

main90119-06A06

10 parts on this diagram · 2 diagrams in section
