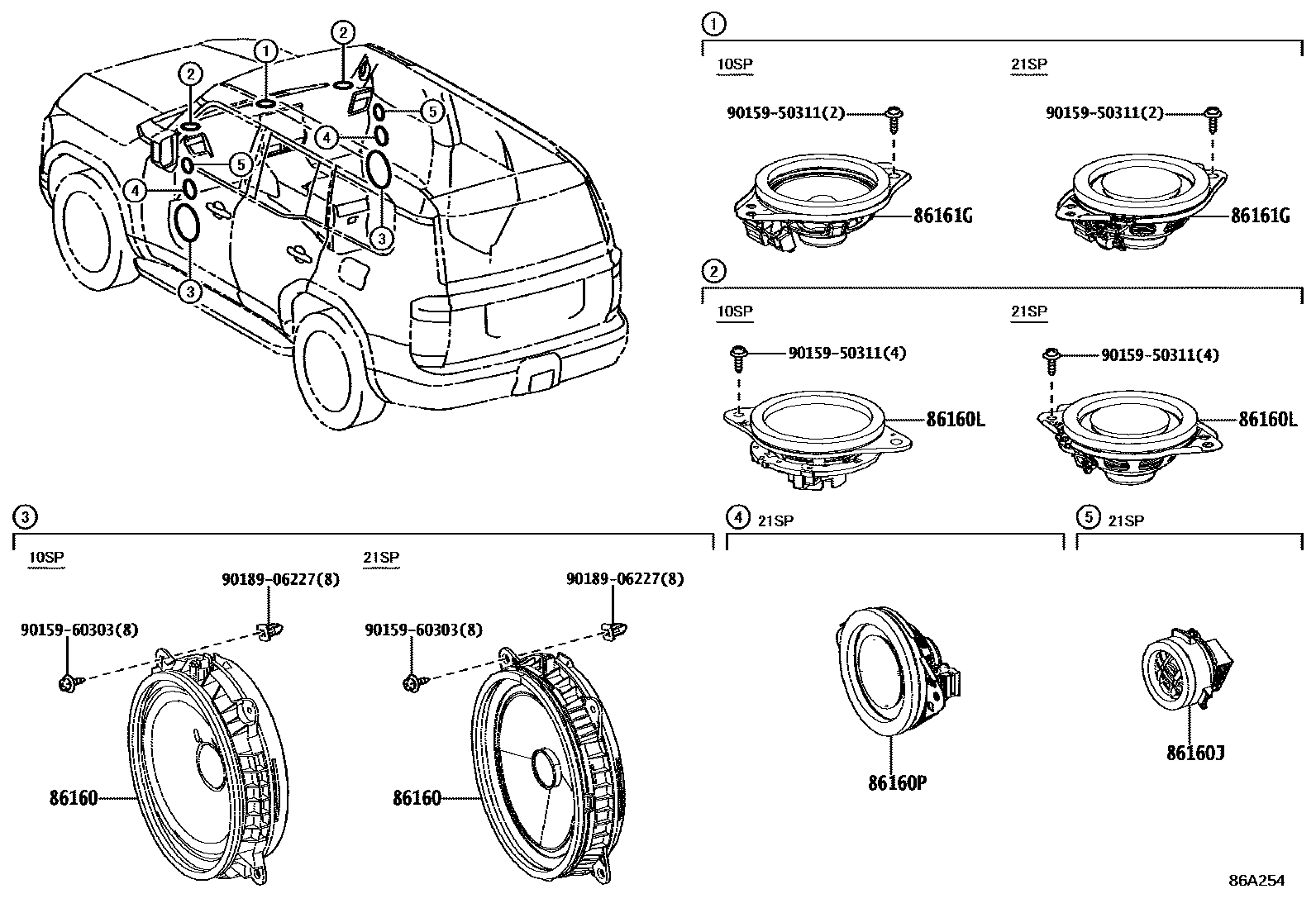

SPEAKER

0001 1FRONT SPEAKER 0002 1REAR SPEAKER 0003 1EQUALIZER

86160SPEAKER ASSY, FRONT NO.1

main86160-78080×2iTJH252,VJA252202402

main86160-78100×2iVJA252..ARL202402

LUXURY+ PACKAGE

86160JSPEAKER ASSY, FRONT NO.3

main86160-0WX20×2iVJA252..ARL202402

LUXURY+ PACKAGE

86160LSPEAKER ASSY, FRONT NO.4

main86160-78070×2iTJH252,VJA252202402

main86160-78090×2iVJA252..ARL202402

LUXURY+ PACKAGE

86160PSPEAKER ASSY, FRONT NO.2

main86150-60320×2iVJA252..ARL202402

LUXURY+ PACKAGE

86161GSPEAKER ASSY, FRONT NO.5

main86160-33A50iTJH252,VJA252202402

main86160-78090iVJA252..ARL202402

LUXURY+ PACKAGE

9015950311

main90159-50311

9015960303

main90159-60303

9018906227

main90189-06227

8 parts on this diagram · 3 diagrams in section
