REAR WASHER
8503
85348SJOINT, REAR WASHER ELBOW, NO.1
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
85349HJOINT, REAR WASHER HOSE, NO.3
PREMIUM+ PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
LUXURY+ PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
"OVERTRAIL+" PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
85349KJOINT, REAR WASHER ELBOW, NO.2
85360RBRACKET ASSY, REAR WASHER
85371NCLAMP, REAR WASHER HOSE
85371PCLAMP, REAR WASHER HOSE, NO.2
85371QCLAMP, REAR WASHER HOSE, NO.3
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=150)
L=1450(*H,L=150),BOLIVIA SPEC&LUXURY+ PACKAGE&COLD AREA SPEC
L=1450(*H,L=150),BOLIVIA SPEC&"OVERTRAIL" PACKAGE&COLD AREA SPEC
L=1450(*H,L=150),BOLIVIA SPEC&COLD AREA SPEC
L=1450(*H,L=150),ARGENTINA SPEC
L=1450(*H,L=150),ARGENTINA SPEC&LUXURY+ PACKAGE
L=1450(*H,L=150),ARGENTINA SPEC&"OVERTRAIL" PACKAGE
L=1450(*H,L=150),PERU SPEC&LUXURY+ PACKAGE&COLD AREA SPEC
L=1450(*H,L=150),PERU SPEC&"OVERTRAIL" PACKAGE&COLD AREA SPEC
L=1450(*H,L=150),PERU SPEC&COLD AREA SPEC
L=1450(*H,L=150),LUXURY+ PACKAGE
L=1450(*H,L=150),"OVERTRAIL" PACKAGE
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1000(*H,L=200)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=716
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=1000(*H,L=180)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=3200(*H,L=2900)
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=2000(*H,L=1260)
L=430
L=420
L=420,PREMIUM+ PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
L=420,LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
L=420,LUXURY+ PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
L=420,"OVERTRAIL+" PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
85389CPROTECTOR, WASHER

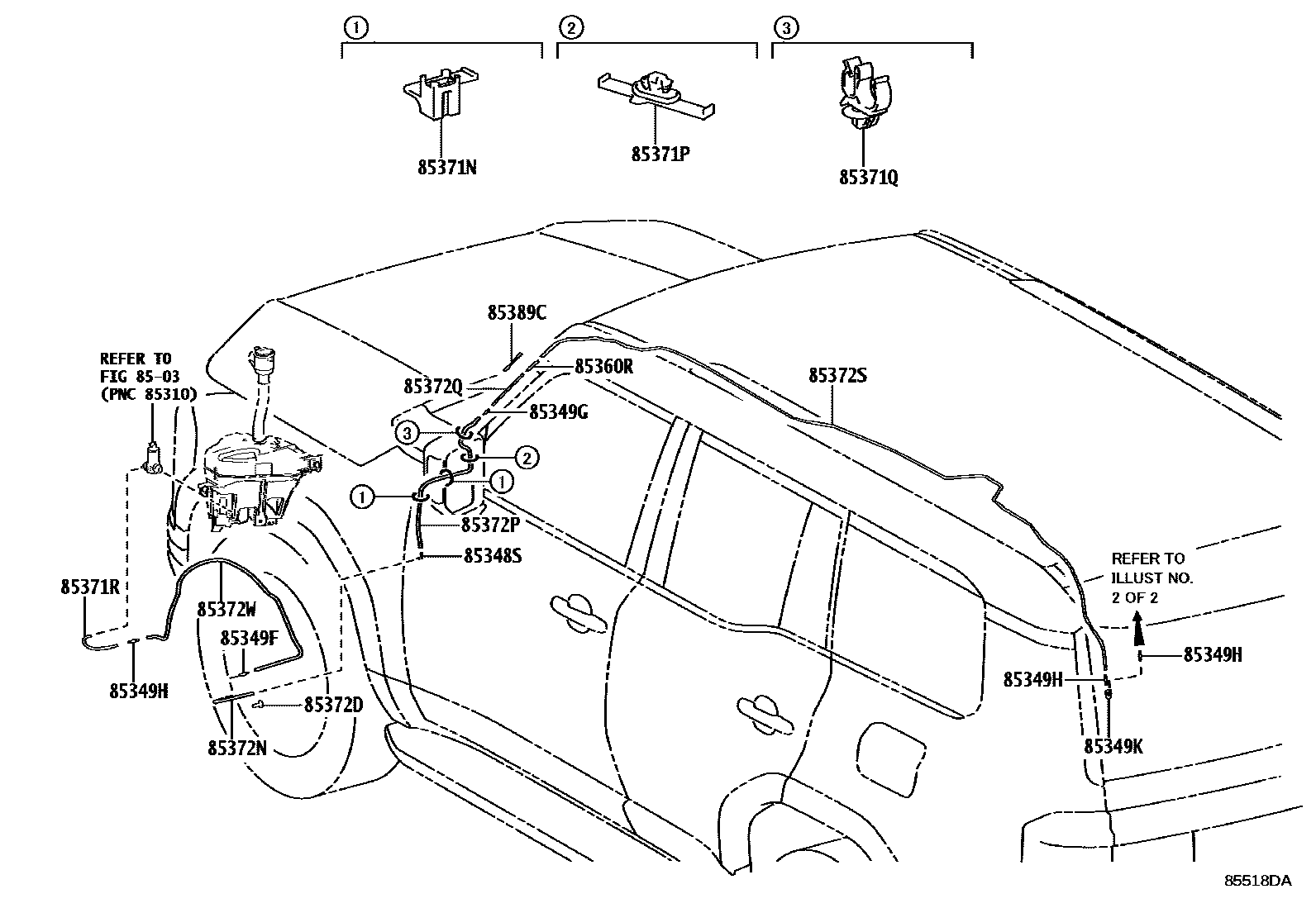

18 parts on this diagram · 2 diagrams in section
