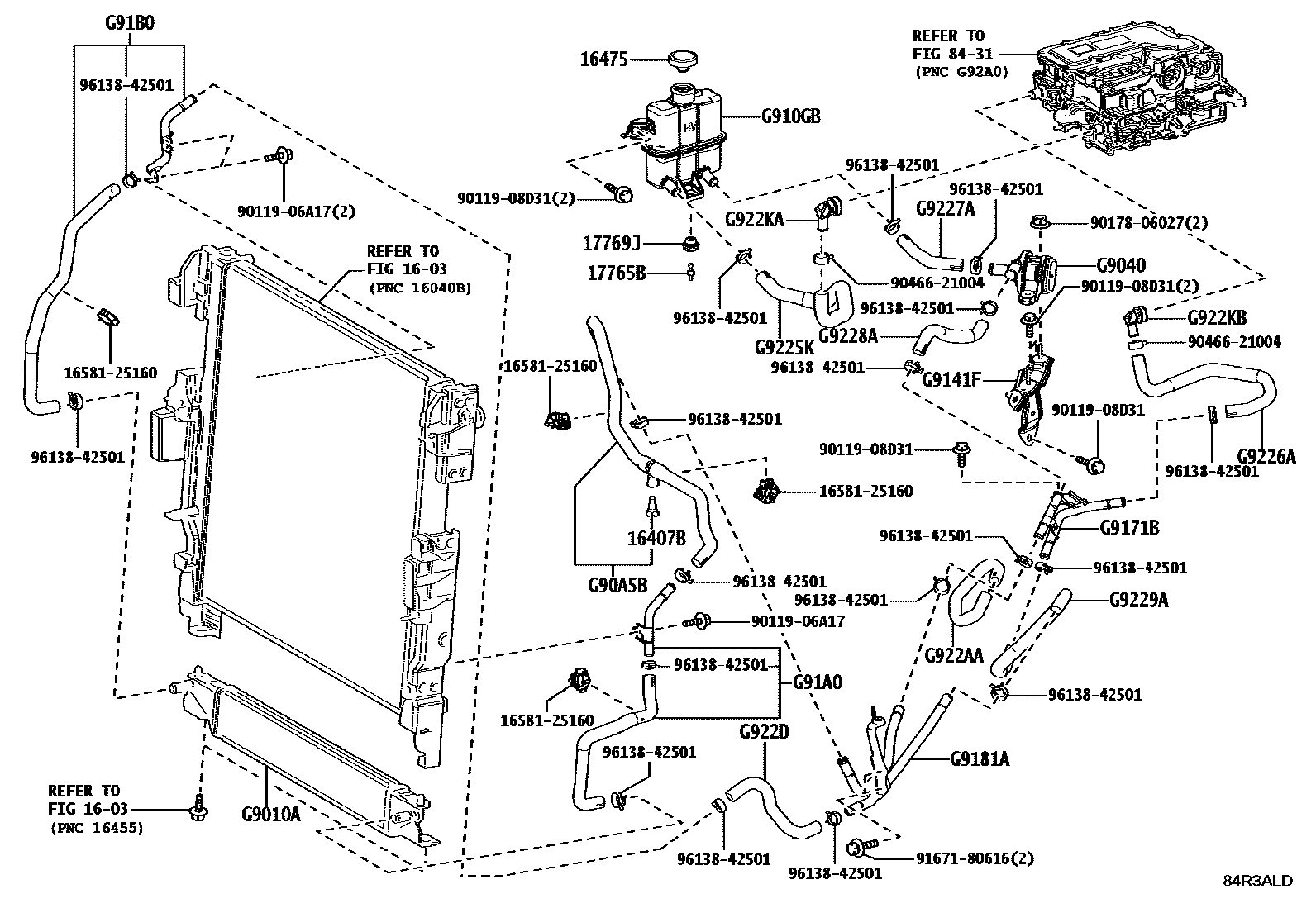

INVERTER COOLING

1603

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iT24..TJH252202403

16475CAP, RESERVE TANK

main16475-28140iT24..TJH252202403

17765BSTAY, AIR CLEANER, NO.1

main17765-25010iT24..TJH252202403

17769JSUPPORT, AIR CLEANER

main17769-25030iT24..TJH252202403

8431

G9010ARADIATOR ASSY

mainG901060020iTJH252202403

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904048060iTJH252202403

G90A5BHOSE SUB-ASSY, INVERTER COOLING, NO.5

mainG90A560020iTJH252202403

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G60010iTJH252202403

G9141FBRACKET, HV WATER PUMP

mainG914160020iTJH252202403

G9171BPIPE, INVERTER COOLING, NO.3

mainG917160020iTJH252202403

G9181APIPE, INVERTER COOLING, NO.2

mainG918160020iTJH252202403

G91A0PIPE ASSY, INVERTER COOLING, INLET

mainG91A060010iTJH252202403

G91B0PIPE ASSY, INVERTER COOLING, OUTLET

mainG91B060010iTJH252202403

G9225KHOSE, INVERTER COOLING, NO.1

mainG922560010iTJH252202403

G9226AHOSE, INVERTER COOLING, NO.2

mainG922660010iTJH252202403

G9227AHOSE, INVERTER COOLING, NO.3

mainG922760020iTJH252202403

G9228AHOSE, INVERTER COOLING, NO.4

mainG922860020iTJH252202403

G9229AHOSE, INVERTER COOLING, NO.5

mainG922960020iTJH252202403

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A60010iTJH252202403

G922DHOSE, INVERTER COOLING OUTLET, NO.2

mainG922D60020iTJH252202403

G922KACONNECTOR, HYBRID WATER HOSE, NO.1

mainG922K47011iTJH252202403

G922KBCONNECTOR, HYBRID WATER HOSE, NO.2

mainG922K47011iTJH252202403

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

9011906A17

main90119-06A17

9011908D31

main90119-08D31

9017806027

main90178-06027

9046621004

main90466-21004

9167180616

main91671-80616

9613842501

main96138-42501

31 parts on this diagram · 1 diagram in section
