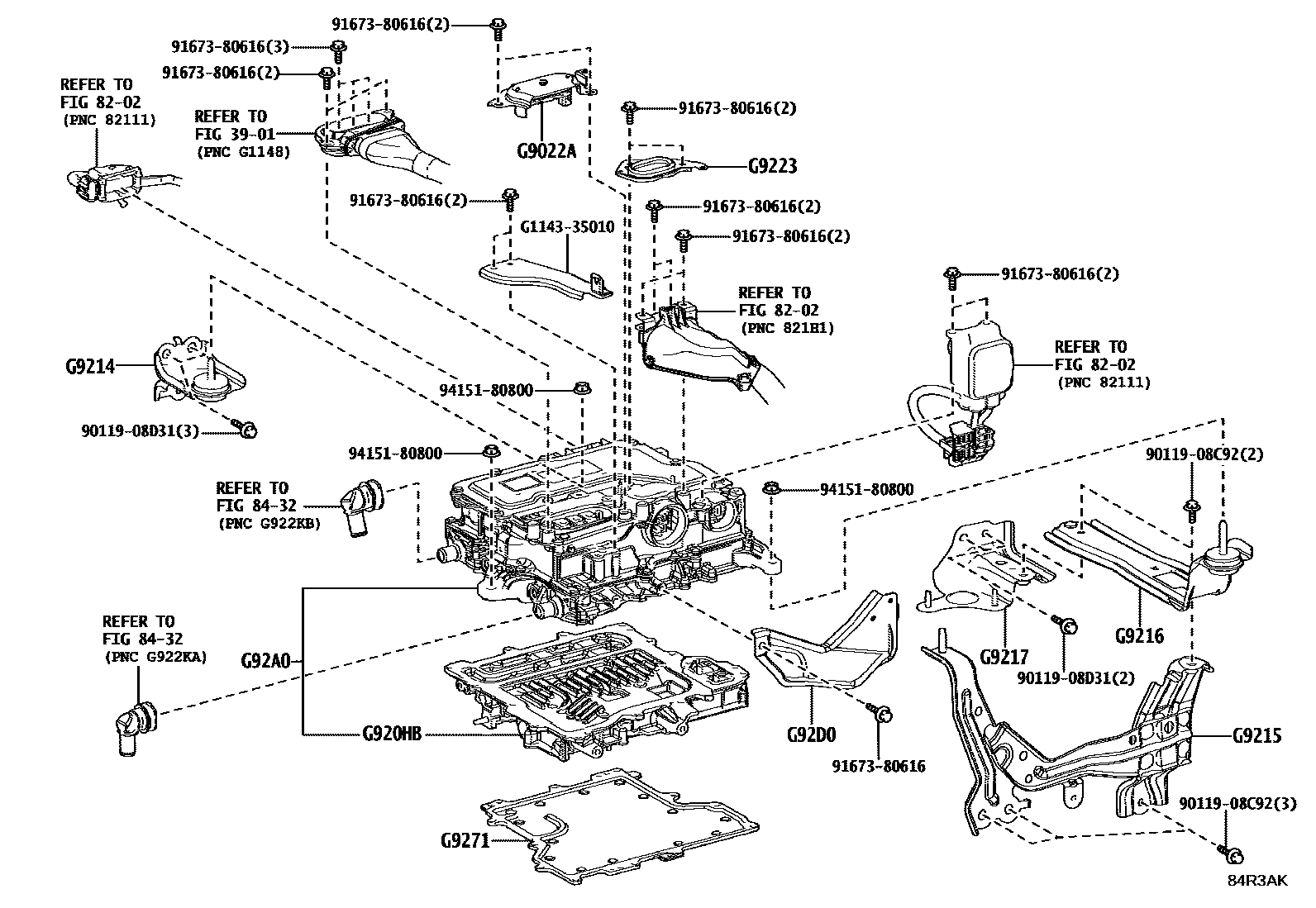

HEV INVERTER
3901
8202
8432
G9022ACOVER SUB-ASSY, INVERTER, UPPER
G920HBCONVERTER SET, HYBRID VEHICLE
G9214BRACKET, INVERTER, NO.1
G9215BRACKET, INVERTER, NO.2
G9216BRACKET, INVERTER, NO.3
G9217BRACKET, INVERTER, NO.4
G9223COVER, INVERTER TERMINAL
G9271COVER, CONVERTER
G92A0INVERTER ASSY, HYBRID MOTOR CONTROL
G92D0PROTECTOR ASSY, HYBRID INVERTER
9011908C92
main90119-08C92
9011908D31
main90119-08D31
9167380616
main91673-80616
9415180800
main94151-80800
G114335010BRACKET, MOTOR CABLE
mainG1143-35010
18 parts on this diagram · 1 diagram in section
