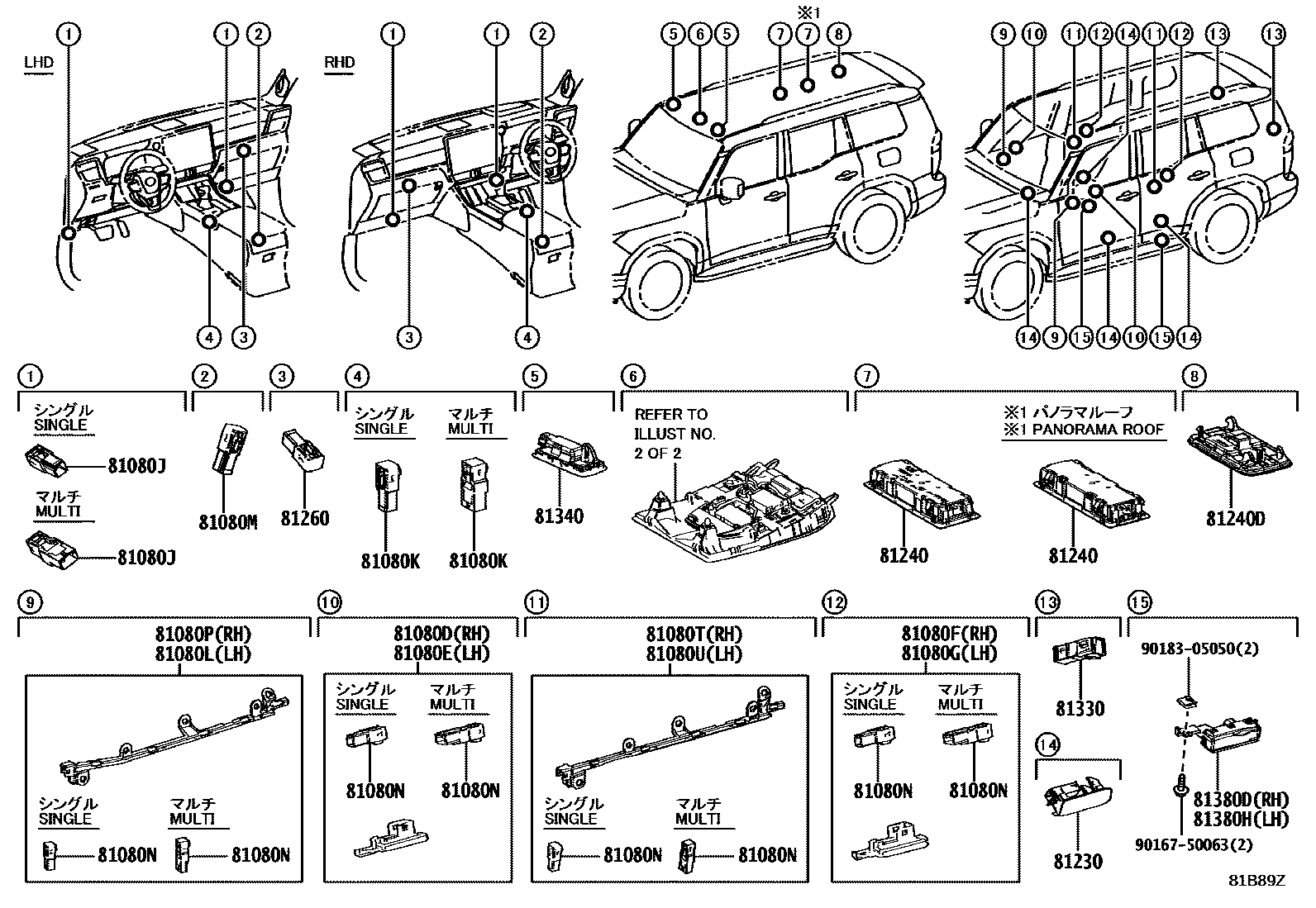

INTERIOR LAMP
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080TLAMP ASSY, INTERIOR ILLUMINATION, NO.2 RH
81080ULAMP ASSY, INTERIOR ILLUMINATION, NO.2 LH
81230LAMP ASSY, COURTESY
81240LAMP ASSY, ROOM, NO.1
BLACK,TRIM1#,2#,4#
81240DLAMP ASSY, ROOM, NO.2
BLACK,TRIM1#,2#,4#
81260LAMP ASSY, GLOVE BOX
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81340LAMP ASSY, VANITY
81380DLAMP ASSY, STEP
RH
LUXURY+ PACKAGE,RH
STEP & STEP COVER-SIDE AUTO WITHOUT(OUT-MODE),RH
81380HLAMP ASSY, STEP
LH
LUXURY+ PACKAGE,LH
STEP & STEP COVER-SIDE AUTO WITHOUT(OUT-MODE),LH
9016750063
9018305050
22 parts on this diagram · 2 diagrams in section
