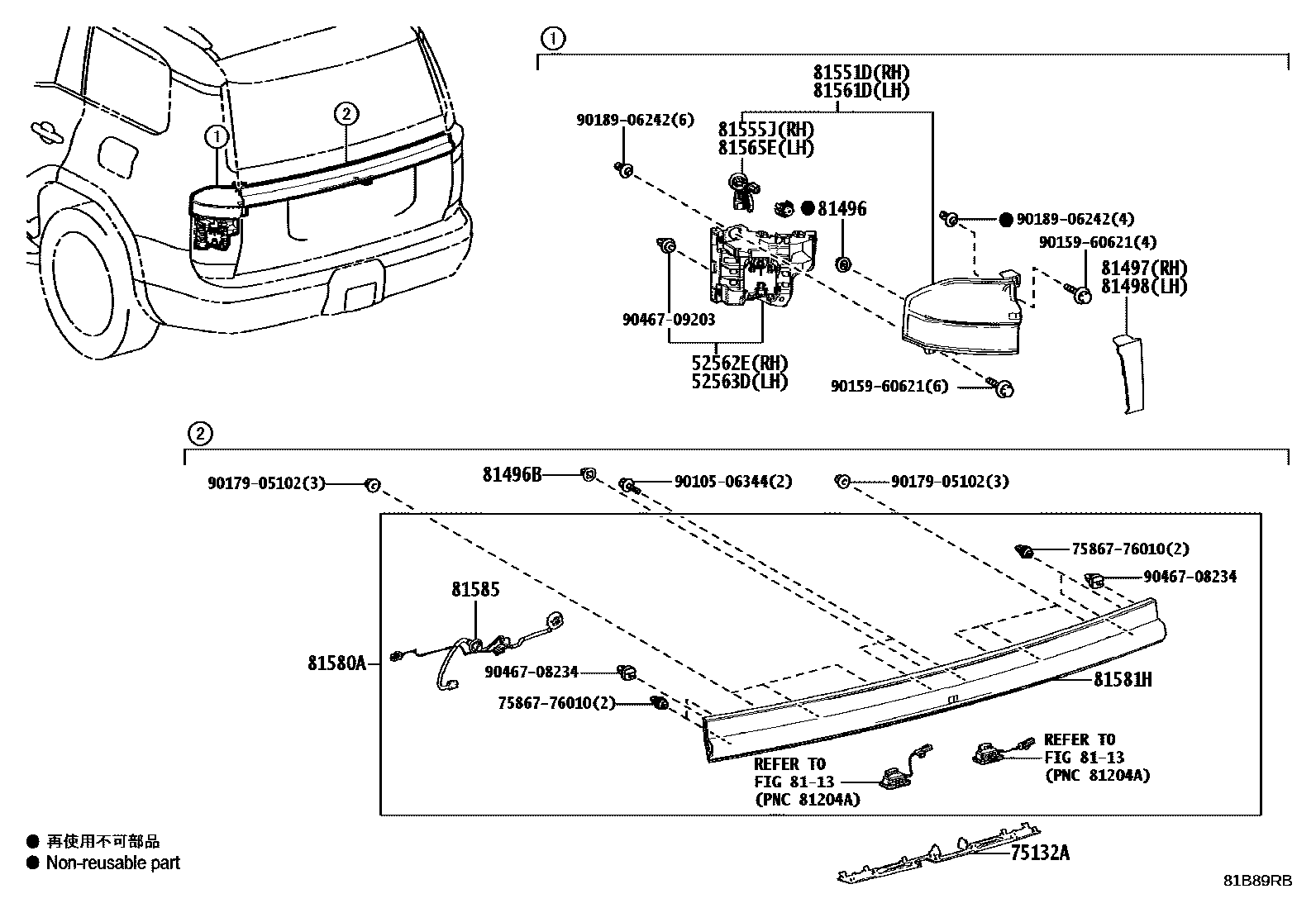

REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-60150iTJH252,VJA252202402

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-60150iTJH252,VJA252202402

75132ACOVER, LICENSE REAR LAMP

main76813-60110iTJH252,VJA252202402

8113

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iTJH252,VJA252202402

81496BGUIDE, REAR LAMP

main81496-78010iTJH252,VJA252202402

81497COVER, REAR COMBINATION LAMP, RH

main81497-60070iTJH252,VJA252202402

81498COVER, REAR COMBINATION LAMP, LH

main81498-60070iTJH252,VJA252202402

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-60E20iTJH252,VJA252202402

81555JSOCKET & WIRE, REAR COMBINATION LAMP, RH

main81555-60E20iTJH252,VJA252202402

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-60E20iTJH252,VJA252202402

81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH

main81555-60E20iTJH252,VJA252202402

81580ALAMP ASSY, REAR

main81580-60590iTJH252,VJA252..ARL,CHI,GEN202402

main81580-60620iVJA252..RUS202402

81581HLENS & BODY, REAR LAMP

main81581-60590iTJH252,VJA252..ARL,CHI,GEN202402

main81581-60620iVJA252..RUS202402

81585SOCKET & WIRE, REAR LAMP

main81585-60590iTJH252,VJA252202402

7586776010MOULDING, FRONT PANEL

main75867-76010

9010506344

main90105-06344

9015960621

main90159-60621

9017905102

main90179-05102

9018906242

main90189-06242

9046708234

main90467-08234

9046709203

main90467-09203

22 parts on this diagram · 1 diagram in section
