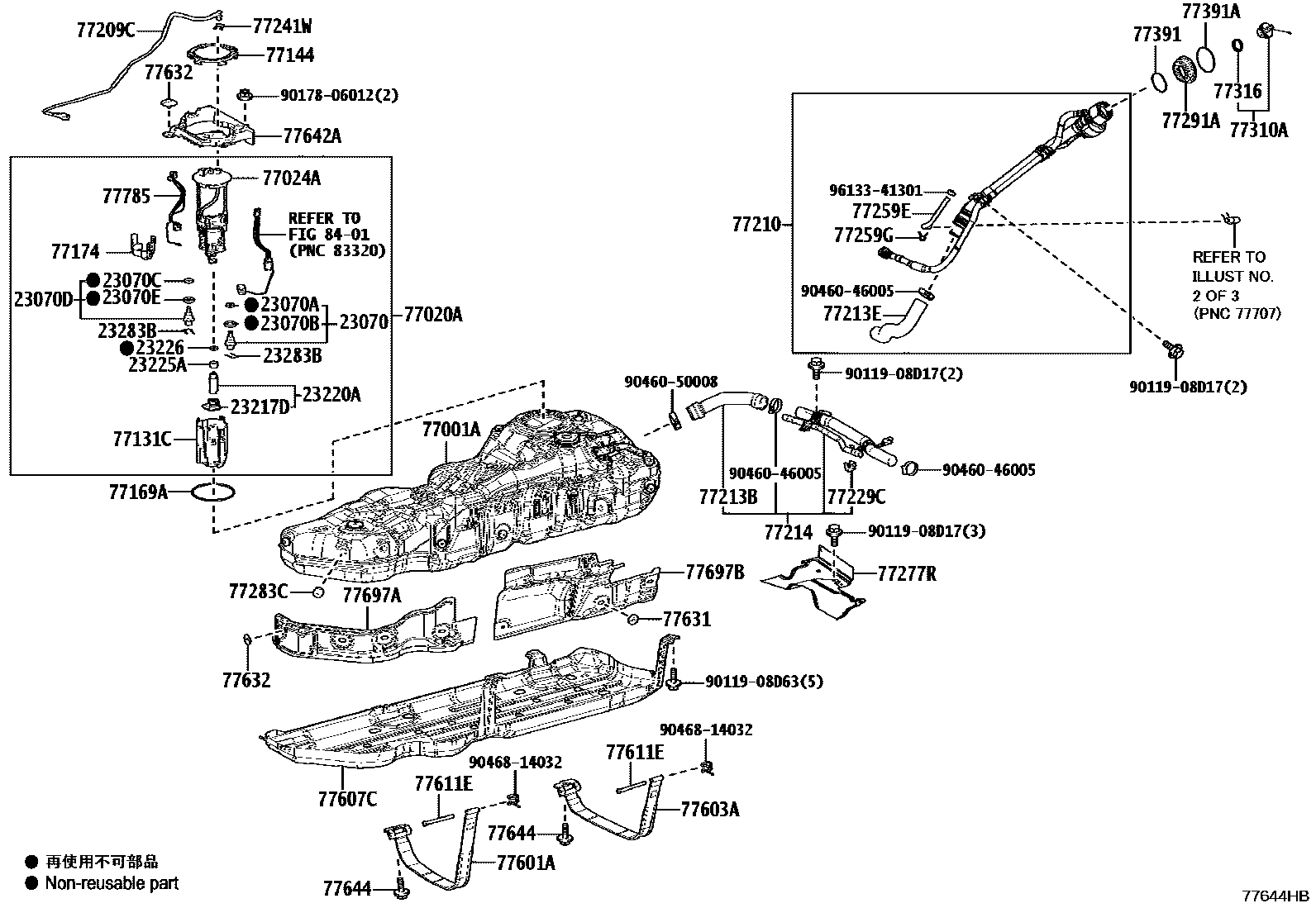

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
23070BRING, O, NO.2(FOR FUEL MAIN VALVE)
23070CRING, O, NO.3(FOR FUEL MAIN VALVE)
23070DVALVE ASSY, FUEL MAIN, NO.2
23070ERING, O, NO.4(FOR FUEL MAIN VALVE)
23217DFILTER, FUEL PUMP
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23226RING, O(FOR FUEL PUMP)
23283BHOLDER, FUEL PRESSURE REGULATOR
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77209CTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77213EHOSE, FUEL TANK TO FILLER PIPE
77214PIPE, FUEL TANK FILLER
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77259EHOSE, FUEL
77259GCLIP, FUEL HOSE
77277RPROTECTOR, FUEL TANK FILLER PIPE
77283CBRACKET, FUEL TANK PROTECTOR
77291ASHIELD, FUEL TANK FILLER PIPE
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77603ABAND SUB-ASSY, FUEL TANK, NO.2
77611EPIN, FUEL TANK BAND
77631BRACKET, FUEL TANK, NO.1
77632BRACKET, FUEL TANK, NO.2
77644BOLT, FUEL TANK
77785HARNESS, FUEL PUMP
8401
9011908D17
main90119-08D17
9011908D63
main90119-08D63
9017806012
main90178-06012
9046046005
main90460-46005
9046050008
main90460-50008
9046814032
main90468-14032
9613341301
main96133-41301
53 parts on this diagram · 7 diagrams in section
