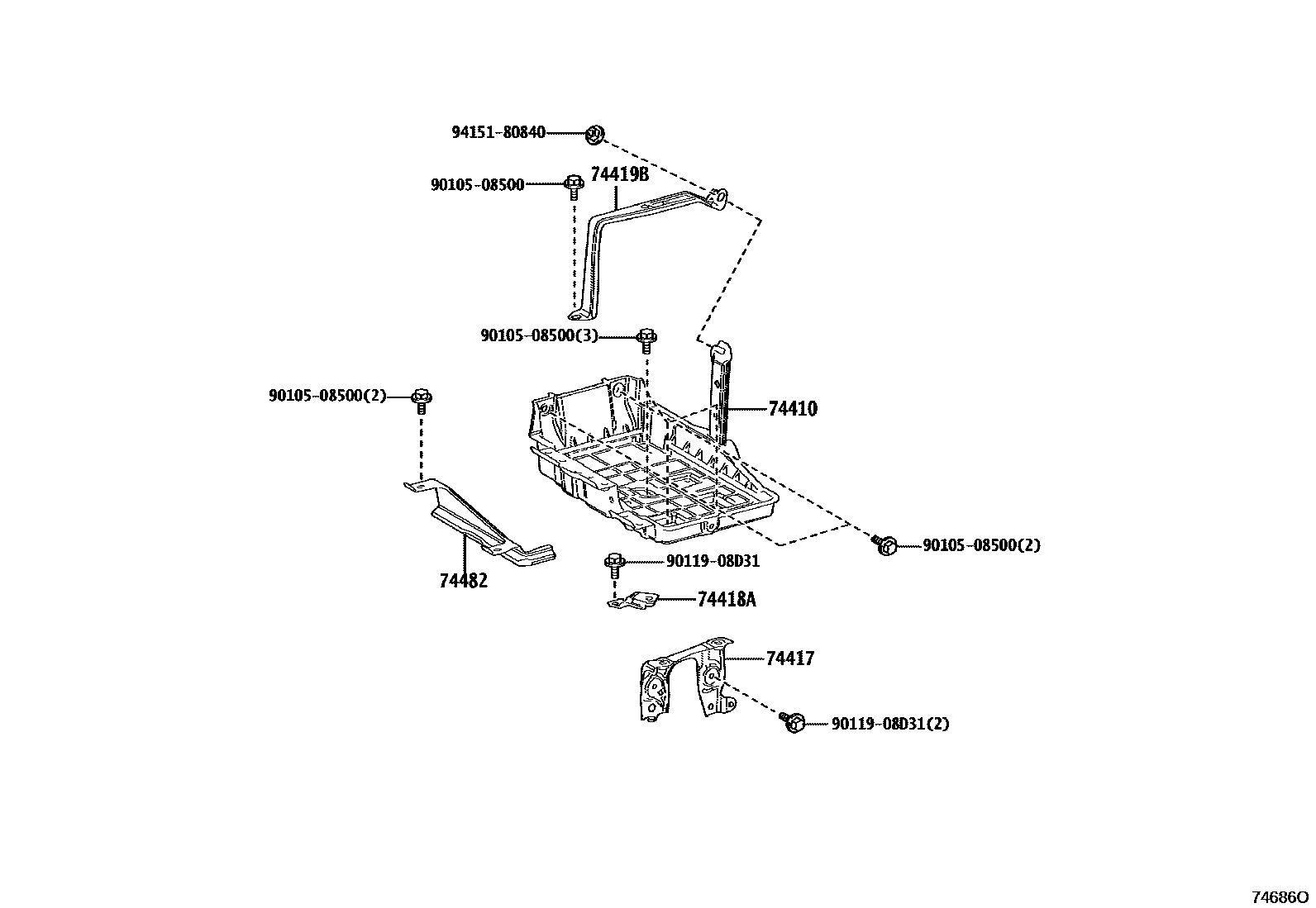

BATTERY CARRIER

0001 1 0002 1 0003 1

74410CARRIER ASSY, BATTERY

main74410-60060iVJA252..LHD202402

main74410-60070iVJA252..ARL202402

74417BRACKET, BATTERY CARRIER

main74417-60050iVJA252..LHD202402

main74417-60060iVJA252..ARL202402

74418ABRACKET, BATTERY CARRIER, NO.4

main74418-60020iVJA252..LHD202402

main74418-60030iVJA252..ARL202402

74419BBRACKET, BATTERY CARRIER, NO.2

main74419-60040iVJA252..LHD202402

main74419-60050iVJA252..ARL202402

74482CLAMP, BATTERY, NO.2

main74482-60080iVJA252..LHD202402

main74482-60090iVJA252..ARL202402

9010508500

main90105-08500

9011908D31

main90119-08D31

9415180840

main94151-80840

8 parts on this diagram · 3 diagrams in section
