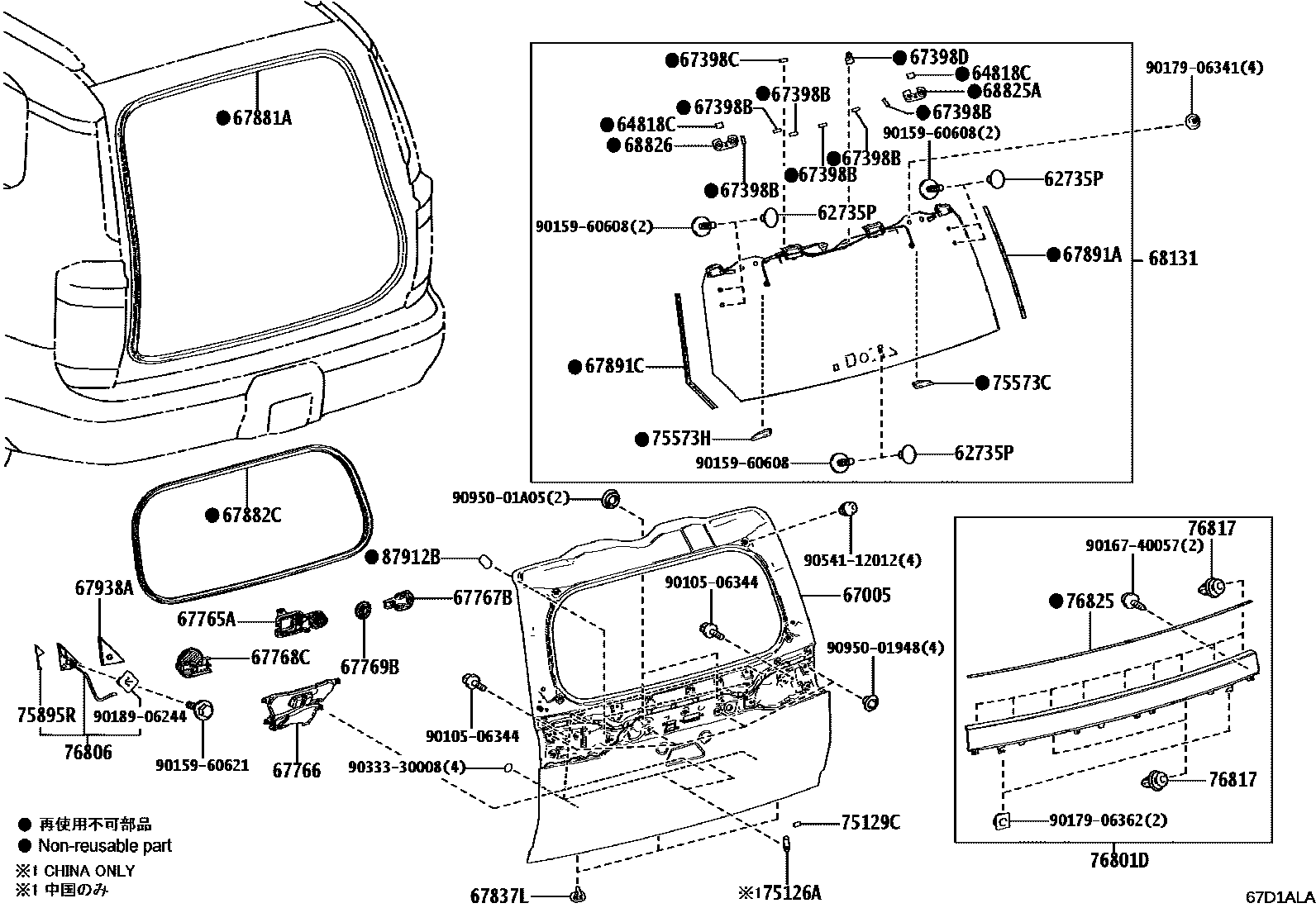

BACK DOOR PANEL & GLASS
62735PRETAINER, BACK DOOR WINDOW HINGE
64818CSPACER, BACK WINDOW GLASS, NO.1
67398BGUIDE, BACK DOOR WIRE HARNESS, NO.1
67398CGUIDE, BACK DOOR WIRE HARNESS, NO.2
67398DGUIDE, BACK DOOR WIRE HARNESS, NO.3
67765ACOVER, BACK DOOR SERVICE HOLE, NO.1
67766COVER, BACK DOOR SERVICE HOLE, NO.2
67767BCOVER, BACK DOOR SERVICE HOLE, NO.3
67768CCOVER, BACK DOOR SERVICE HOLE, NO.4
67769BCOVER, BACK DOOR SERVICE HOLE, NO.5
67837LSEAL, DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
67882CWEATHERSTRIP, BACK DOOR, NO.2
67891ASEAL, BACK DOOR
67891CSEAL, BACK DOOR
67938AGARNISH, BACK DOOR SIDE, LH
BLACK,TRIM1#,2#,4#
68131GLASS, BACK DOOR
68825APLATE, BACK DOOR HINGE, RH
68826PLATE, BACK DOOR HINGE, LH
75126APLATE, REAR LICENSE PLATE BRACKET SUPPORT
75129CCUSHION, REAR LICENCE PLATE
75573CMOULDING, BACK WINDOW, OUTSIDE
75573HMOULDING, BACK WINDOW, OUTSIDE
75895RTAPE, MOULDING, NO.1
76801DGARNISH SUB-ASSY, BACK DOOR, OUTSIDE
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7 ,M06
TITANIUM CARBIDE GRAY,1L8 ,M07
GRAPHITE BLACK GF.,223
MOON DESERT,M08
TERRANE KHAKI M.M.,6X4 ,M09
DEEP BLUE MC.,8X5
##
76806GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER LH
76817CLIP, BACK DOOR OUTSIDE GARNISH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
87912BPROTECTOR, OUTER MIRROR
9010506344
main90105-06344
9015960608
main90159-60608
9015960621
main90159-60621
9016740057
main90167-40057
9017906341
main90179-06341
9017906362
main90179-06362
9018906244
main90189-06244
9033330008
main90333-30008
9054112012
main90541-12012
9095001948
main90950-01948
9095001A05
main90950-01A05
41 parts on this diagram · 2 diagrams in section
