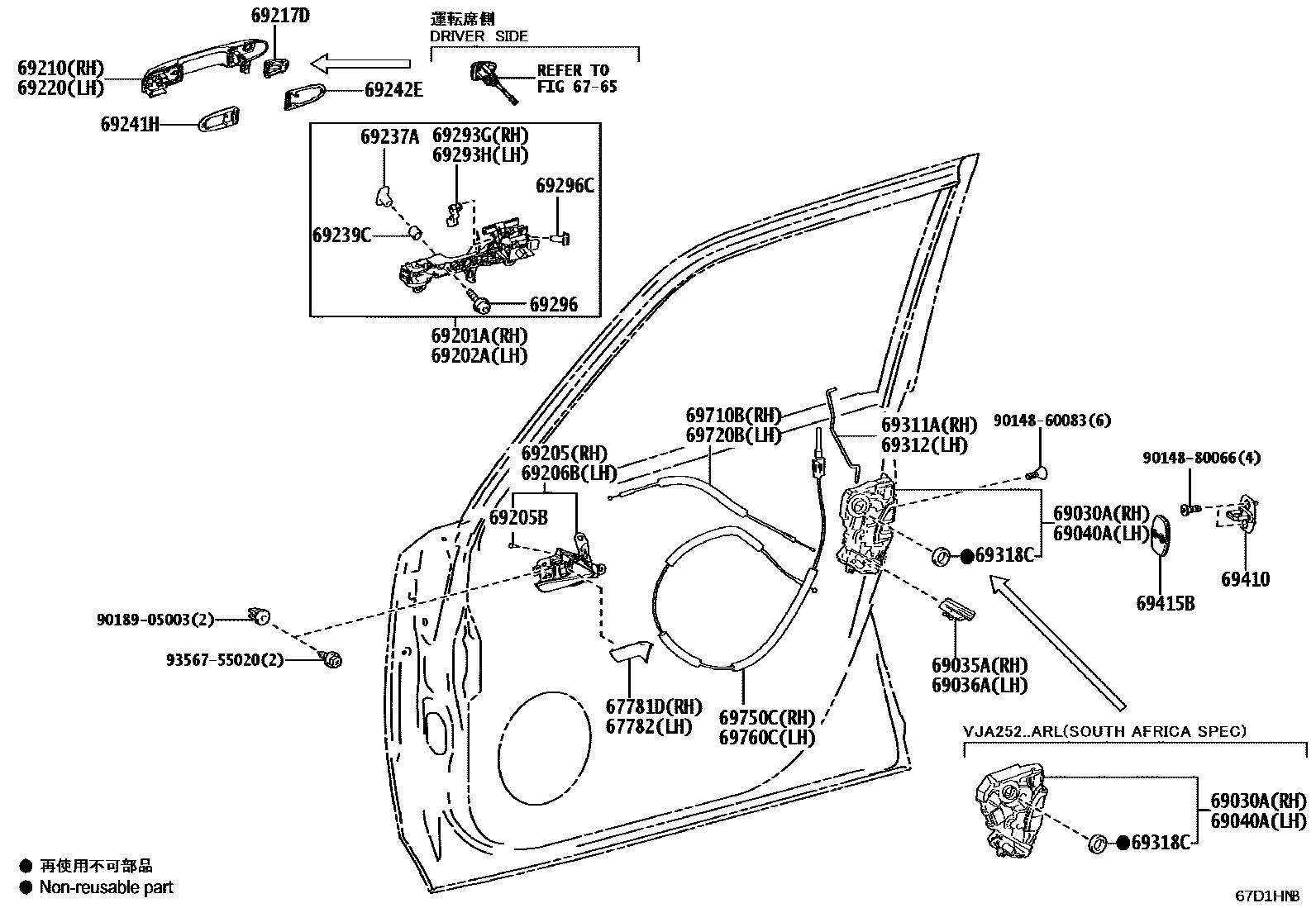

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

6765

67781DCOVER, FRONT DOOR TRIM, UPPER RH

main67781-60590-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

67782COVER, FRONT DOOR TRIM, UPPER LH

main67782-60610-C0iTJH252,VJA252202402

BLACK,TRIM1#,2#,4#

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-28190iVJA252..ARL202402

main69030-60350iVJA252..RUS202402

main69030-V2010iTJH252,VJA252..CHI,GEN202402

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-28010iTJH252,VJA252202402

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-28010iTJH252,VJA252202402

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-42310iTJH252,VJA252..CHI,GEN202402

main69040-60320iVJA252..RUS202402

main69040-V2010iVJA252..ARL202402

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-60120iTJH252,VJA252202402

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-60060iTJH252,VJA252..ARL,CHI,GEN202402

main69202-60100iVJA252..RUS202402

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69270-60060iTJH252,VJA252202402

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iTJH252,VJA252202402

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69280-60060iTJH252,VJA252202402

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-60220-A2iVJA252..ARL202402

SONIC QUARTZ,085

main69210-60220-B1iVJA252..ARL202402

MERCURY GRAY MC.,1H9

main69210-60220-B2iVJA252..ARL202402

SONIC TITANIUM,1J7

main69210-60220-B3iVJA252..ARL202402

TITANIUM CARBIDE GRAY,1L8

main69210-60220-C0iVJA252..ARL202402

BLACK,085 ,1J7 ,1L8 ,223 ,6X4 ,M06 ,M07 ,M08 ,M09

main69210-60220-C2iVJA252..ARL202402

GRAPHITE BLACK GF.,223

main69210-60220-G0iVJA252..ARL202402

TERRANE KHAKI M.M.,6X4

main69210-60220-J0iVJA252..ARL202402

DEEP BLUE MC.,8X5

main69210-60230-A2iVJA252..LHD202402

SONIC QUARTZ,085

main69210-60230-B1iVJA252..LHD202402

MERCURY GRAY MC.,1H9

main69210-60230-B2iVJA252..LHD202402

SONIC TITANIUM,1J7

main69210-60230-B3iVJA252..LHD202402

TITANIUM CARBIDE GRAY,1L8

main69210-60230-C0iVJA252..LHD202402

BLACK,085 ,1J7 ,1L8 ,223 ,6X4 ,M06 ,M07 ,M08 ,M09

main69210-60230-C2iVJA252..LHD202402

GRAPHITE BLACK GF.,223

main69210-60230-G0iVJA252..LHD202402

TERRANE KHAKI M.M.,6X4

main69210-60230-J0iVJA252..LHD202402

DEEP BLUE MC.,8X5

main69210-60440-A2iTJH252202403

SONIC QUARTZ,085

main69210-60440-B1iTJH252202403

MERCURY GRAY MC.,1H9

main69210-60440-B2iTJH252202403

SONIC TITANIUM,1J7

main69210-60440-B3iTJH252202403

TITANIUM CARBIDE GRAY,1L8

main69210-60440-C0iTJH252202403

BLACK,085 ,1J7 ,1L8 ,223 ,6X4 ,M06 ,M07 ,M08 ,M09

main69210-60440-C2iTJH252202403

GRAPHITE BLACK GF.,223

main69210-60440-G0iTJH252202403

TERRANE KHAKI M.M.,6X4

main69210-60440-J0iTJH252202403

DEEP BLUE MC.,8X5

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-60280iTJH252,VJA252202402

BLACK

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-60220-A2iVJA252..LHD202402

SONIC QUARTZ,085

main69210-60220-B1iVJA252..LHD202402

MERCURY GRAY MC.,1H9

main69210-60220-B2iVJA252..LHD202402

SONIC TITANIUM,1J7

main69210-60220-B3iVJA252..LHD202402

TITANIUM CARBIDE GRAY,1L8

main69210-60220-C0iVJA252..LHD202402

BLACK,085 ,1J7 ,1L8 ,223 ,6X4 ,M06 ,M07 ,M08 ,M09

main69210-60220-C2iVJA252..LHD202402

GRAPHITE BLACK GF.,223

main69210-60220-G0iVJA252..LHD202402

TERRANE KHAKI M.M.,6X4

main69210-60220-J0iVJA252..LHD202402

DEEP BLUE MC.,8X5

main69210-60230-A2iVJA252..ARL202402

SONIC QUARTZ,085

main69210-60230-B1iVJA252..ARL202402

MERCURY GRAY MC.,1H9

main69210-60230-B2iVJA252..ARL202402

SONIC TITANIUM,1J7

main69210-60230-B3iVJA252..ARL202402

TITANIUM CARBIDE GRAY,1L8

main69210-60230-C0iVJA252..ARL202402

BLACK,085 ,1J7 ,1L8 ,223 ,6X4 ,M06 ,M07 ,M08 ,M09

main69210-60230-C2iVJA252..ARL202402

GRAPHITE BLACK GF.,223

main69210-60230-G0iVJA252..ARL202402

TERRANE KHAKI M.M.,6X4

main69210-60230-J0iVJA252..ARL202402

DEEP BLUE MC.,8X5

main69210-60430-A2iTJH252202403

SONIC QUARTZ,085

main69210-60430-B1iTJH252202403

MERCURY GRAY MC.,1H9

main69210-60430-B2iTJH252202403

SONIC TITANIUM,1J7

main69210-60430-B3iTJH252202403

TITANIUM CARBIDE GRAY,1L8

main69210-60430-C0iTJH252202403

BLACK,085 ,1J7 ,1L8 ,223 ,6X4 ,M06 ,M07 ,M08 ,M09

main69210-60430-C2iTJH252202403

GRAPHITE BLACK GF.,223

main69210-60430-G0iTJH252202403

TERRANE KHAKI M.M.,6X4

main69210-60430-J0iTJH252202403

DEEP BLUE MC.,8X5

69237ANUT, FRONT DOOR HANDLE

main69237-60010iTJH252,VJA252202402

69239CBUSH, FRONT DOOR HANDLE

main69239-60020iTJH252,VJA252202402

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-60080iTJH252,VJA252202402

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-60090iTJH252,VJA252202402

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-33030iTJH252,VJA252202402

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-33040iTJH252,VJA252202402

69296SCREW, DOOR INSIDE HANDLE

main90148-50006iTJH252,VJA252202402

69296CSCREW, DOOR INSIDE HANDLE

main90148-50003iVJA252..RUS202402

RH

main90148-50008iVJA252..RUS202402

LH

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-60100iTJH252,VJA252202402

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-60100iTJH252,VJA252202402

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iTJH252,VJA252202402

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33030iTJH252,VJA252202402

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-60020iTJH252,VJA252202402

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-60090iTJH252,VJA252202402

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-60090iTJH252,VJA252202402

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-60100iTJH252,VJA252202402

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-60100iTJH252,VJA252202402

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356755020

main93567-55020

36 parts on this diagram · 2 diagrams in section
