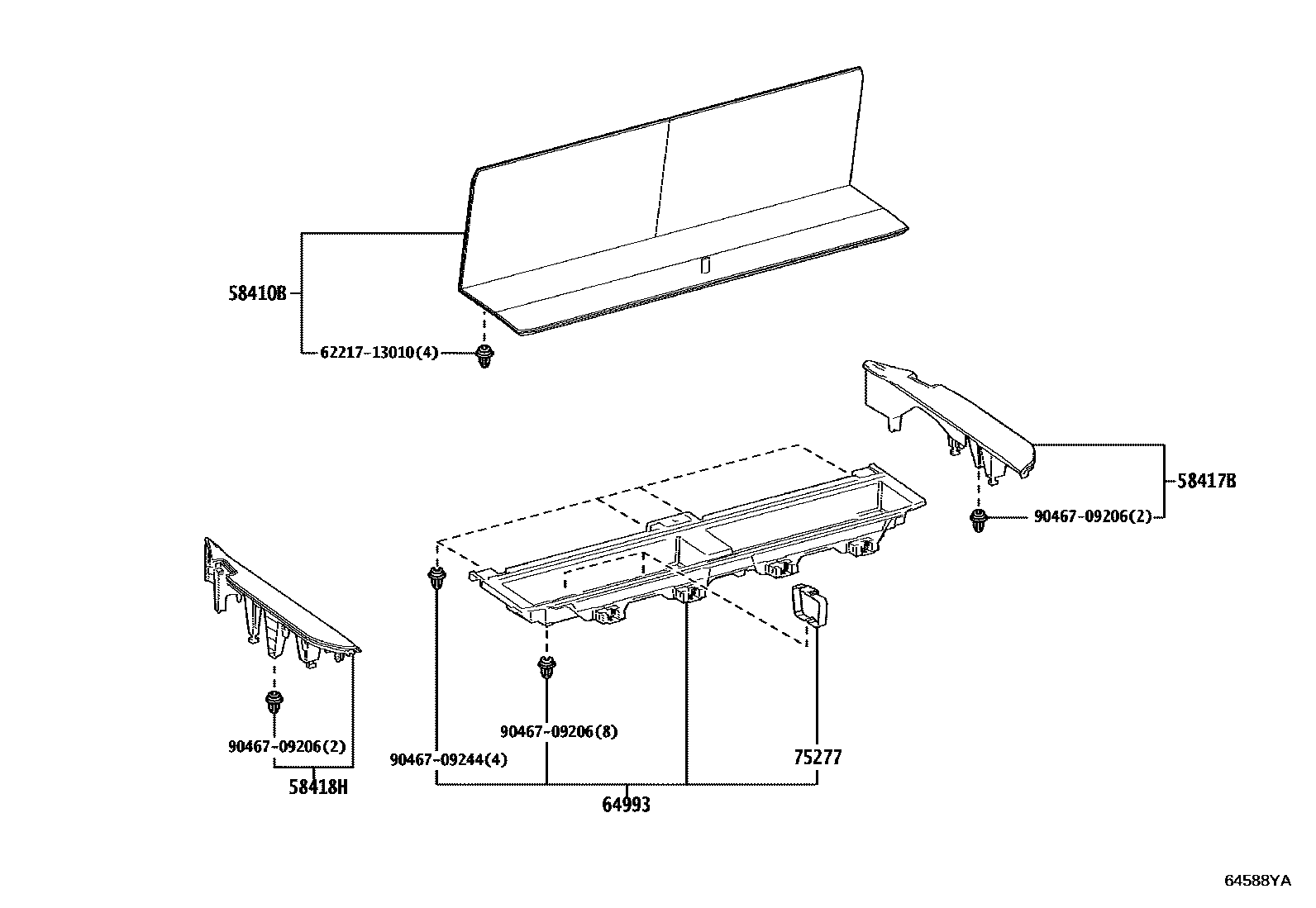

DECK BOARD & DECK TRIM COVER

0001 1W(REAR NO.2 SEAT) 0002 1W/O(REAR NO.2 SEAT) 0003 1W(REAR NO.2 SEAT) 0004 1W/O(REAR NO.2 SEAT)

58410BBOARD ASSY, DECK

main58410-60050-C2iVJA252..ARL,GEN202402

BLACK,TRIM1#,2#,4#

main58410-60060-C2iVJA252..RUS202402

BLACK,TRIM1#,2#,4#

main58410-60060-C2iVJA252..RUS202402

"OVERTRAIL" PACKAGE,BLACK,TRIM1#,2#

58417BBOARD, REAR FLOOR, REAR RH

main58417-60090-C3iVJA252..ARL,GEN202402

BLACK,TRIM1#,2#,4#

main58417-60100-C2iVJA252..RUS202402

BLACK,TRIM1#,2#,4#

main58417-60100-C2iVJA252..RUS202402

"OVERTRAIL" PACKAGE,BLACK,TRIM1#,2#

main58417-60110-C2iTJH252202403

BLACK,TRIM1#,2#,4#

58418HBOARD, REAR FLOOR, REAR LH

main58418-60050-C3iVJA252..ARL,GEN202402

BLACK,TRIM1#,2#,4#

main58418-60060-C2iVJA252..RUS202402

BLACK,TRIM1#,2#,4#

main58418-60060-C2iVJA252..RUS202402

"OVERTRAIL" PACKAGE,BLACK,TRIM1#,2#

main58418-60090-C1iTJH252202403

BLACK,TRIM1#,2#,4#

64993BOX, DECK FLOOR, REAR

main64993-60010iTJH252202403

main64993-60020iVJA252..ARL,GEN202402

75277BAND, TOOL, NO.1

main64279-60030iVJA252202402

main64279-60030iTJH252202403

LUXURY+ PACKAGE

main64279-60030iTJH252202403

"OVERTRAIL+" PACKAGE

6221713010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-13010

9046709206

main90467-09206

9046709244

main90467-09244

8 parts on this diagram · 4 diagrams in section
