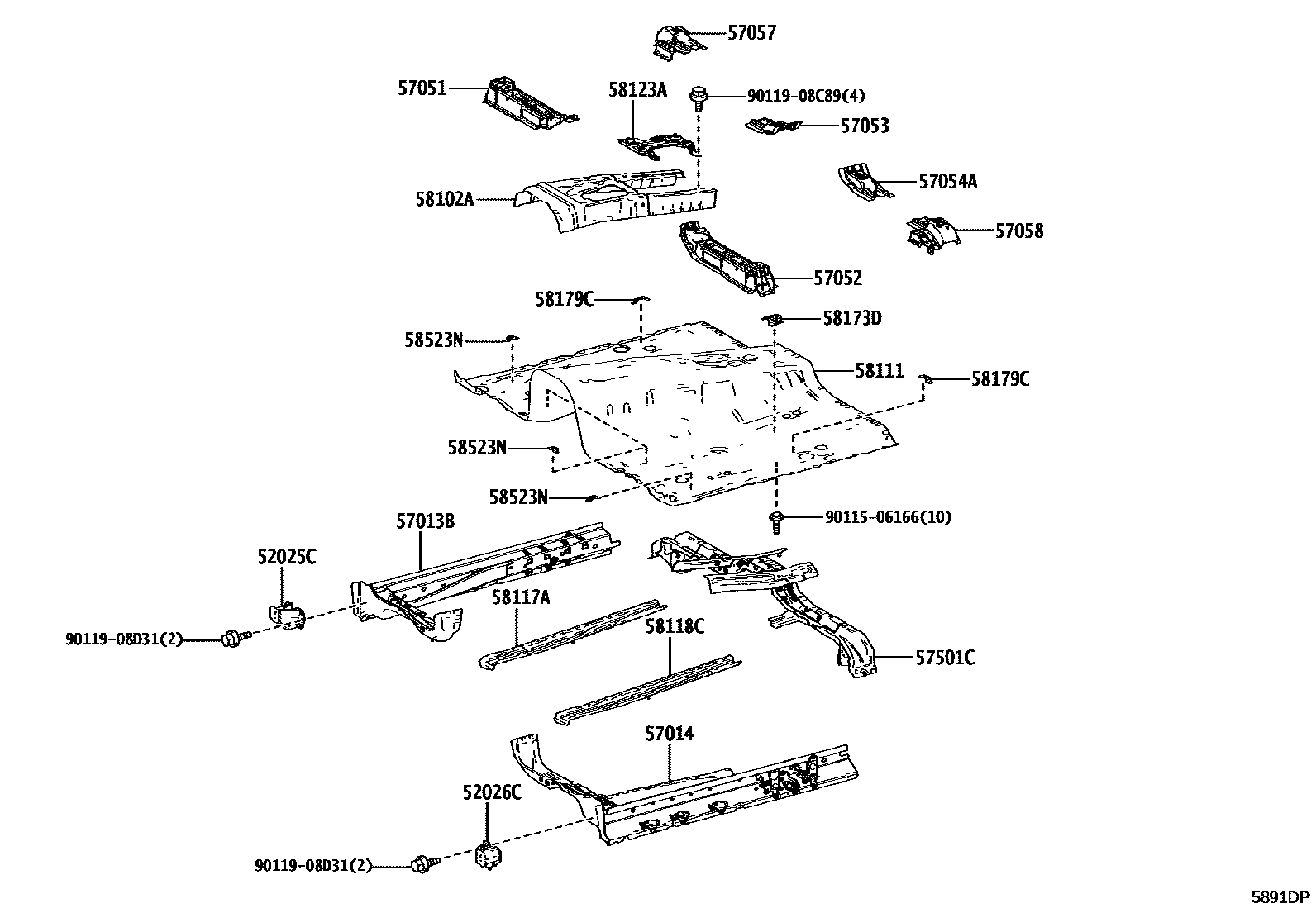

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FLOOR PANEL & FLOOR MEMBER 0002 1FLOOR PANEL & FLOOR MEMBER 0003 1FLOOR PANEL & FLOOR MEMBER 0004 1SIDE STEP(TYPE A) 0005 1SIDE STEP(TYPE B) 0006 1SIDE STEP(TYPE C)

52025CEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH

main52025-60070iTJH252,VJA252¥2,250202402

52026CEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH

main52026-60070iTJH252,VJA252¥2,240202402

57013BMEMBER SUB-ASSY, FLOOR, FRONT RH

main57013-60050iVJA252¥19,700202402

main57013-60060iTJH252202403

57014MEMBER SUB-ASSY, FLOOR, FRONT LH

main57014-60050iVJA252¥19,700202402

main57014-60060iTJH252202403

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-60100iTJH252,VJA252¥4,110202402

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-60100iTJH252,VJA252¥4,110202402

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-60070iVJA252¥2,470202402

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-60030iVJA252¥2,470202402

57057REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 RH

main57057-60020iVJA252¥3,140202402

57058REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 LH

main57058-60020iVJA252¥3,230202402

57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-60030iVJA252¥13,400202402

main57501-60040iTJH252202403

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-60130iTJH252,VJA252¥6,600202402

58111PAN, FRONT FLOOR

main58111-60G50iTJH252202403

main58111-60G60iVJA252¥39,300202402

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-60050iTJH252,VJA252¥3,860202402

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-60040iTJH252,VJA252¥3,880202402

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-60120iTJH252,VJA252..LHD202402

main58123-60130iVJA252..ARL¥2,440202402

58173DBRACKET, COMPUTER MOUNTING, NO.4

main58173-60010iTJH252,VJA252¥510202402

58179CBRACKET, CLAMP FLOOR

main58179-60040iTJH252,VJA252¥220202402

58523NBRACKET, FLOOR CARPET SET

main58523-60020iTJH252,VJA252¥200202402

9011506166

main90115-06166¥90

9011908C89

main90119-08C89¥80

9011908D31

main90119-08D31¥80

22 parts on this diagram · 6 diagrams in section
