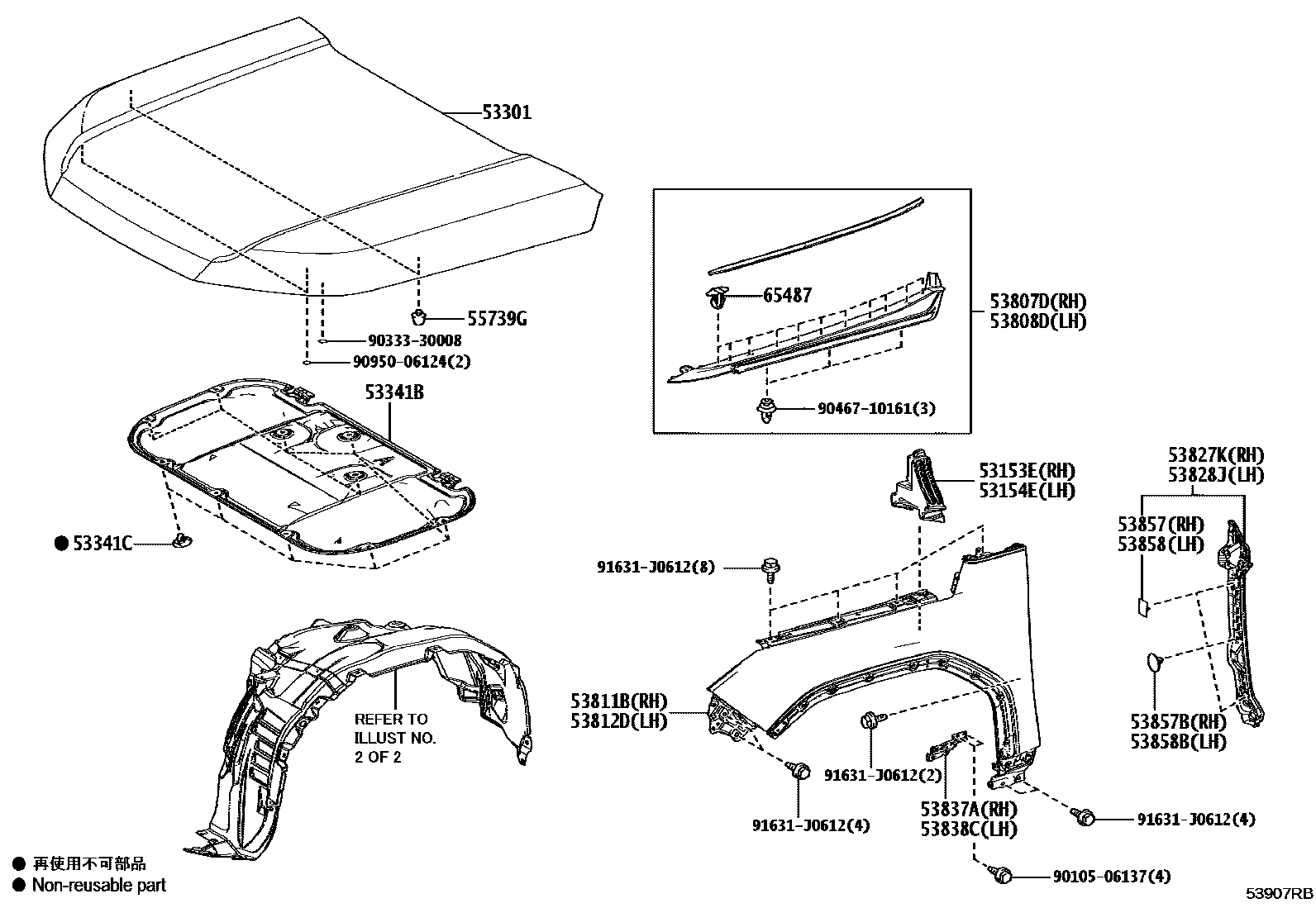

HOOD & FRONT FENDER

0001 1 0002 1

53153EGUIDE, FRONT SIDE AIR

main53153-60040iTJH252,VJA252¥3,110202402

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-60050iTJH252,VJA252¥3,080202402

53301HOOD SUB-ASSY

main53301-60820iTJH252,VJA252¥99,800202402

53341BINSULATOR, HOOD

main53341-60550iTJH252,VJA252¥10,300202402

53341CCLIP(FOR HOOD INSULATOR)

main90467-07229iTJH252,VJA252¥90202402

53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53807-60230iTJH252,VJA252¥3,700202402

53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53808-60180iTJH252,VJA252¥3,680202402

53811BPANEL, FRONT FENDER, RH

main53811-60E10iTJH252,VJA252¥51,700202402-202408

sub53811-60E11¥47,000

main53811-60E11iTJH252,VJA252¥47,000202409

53812DPANEL, FRONT FENDER, LH

main53812-60E10iTJH252,VJA252¥51,700202402-202408

sub53812-60E11¥47,000

main53812-60E11iTJH252,VJA252¥47,000202409

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-60070iTJH252,VJA252¥2,000202402

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-60100iTJH252,VJA252¥1,940202402

53837ABRACKET, FRONT SIDE PANEL, NO.2

main53837-60070iTJH252,VJA252¥880202402

53838CBRACKET, FRONT SIDE PANEL, NO.2 LH

main53838-60100iTJH252,VJA252¥880202402

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iTJH252,VJA252¥100202402

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iTJH252,VJA252¥60202402

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iTJH252,VJA252¥100202402

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iTJH252,VJA252¥60202402

55739GSTOPPER, HOOD

main55739-60040iTJH252,VJA252¥100202402

65487CLIP, CORNER PROTECTOR

main65487-60010iTJH252,VJA252¥80202402

9010506137

main90105-06137¥70

9033330008

main90333-30008¥70

9046710161

main90467-10161¥90

9095006124

main90950-06124¥90

91631J0612

main91631-J0612¥110

24 parts on this diagram · 2 diagrams in section
