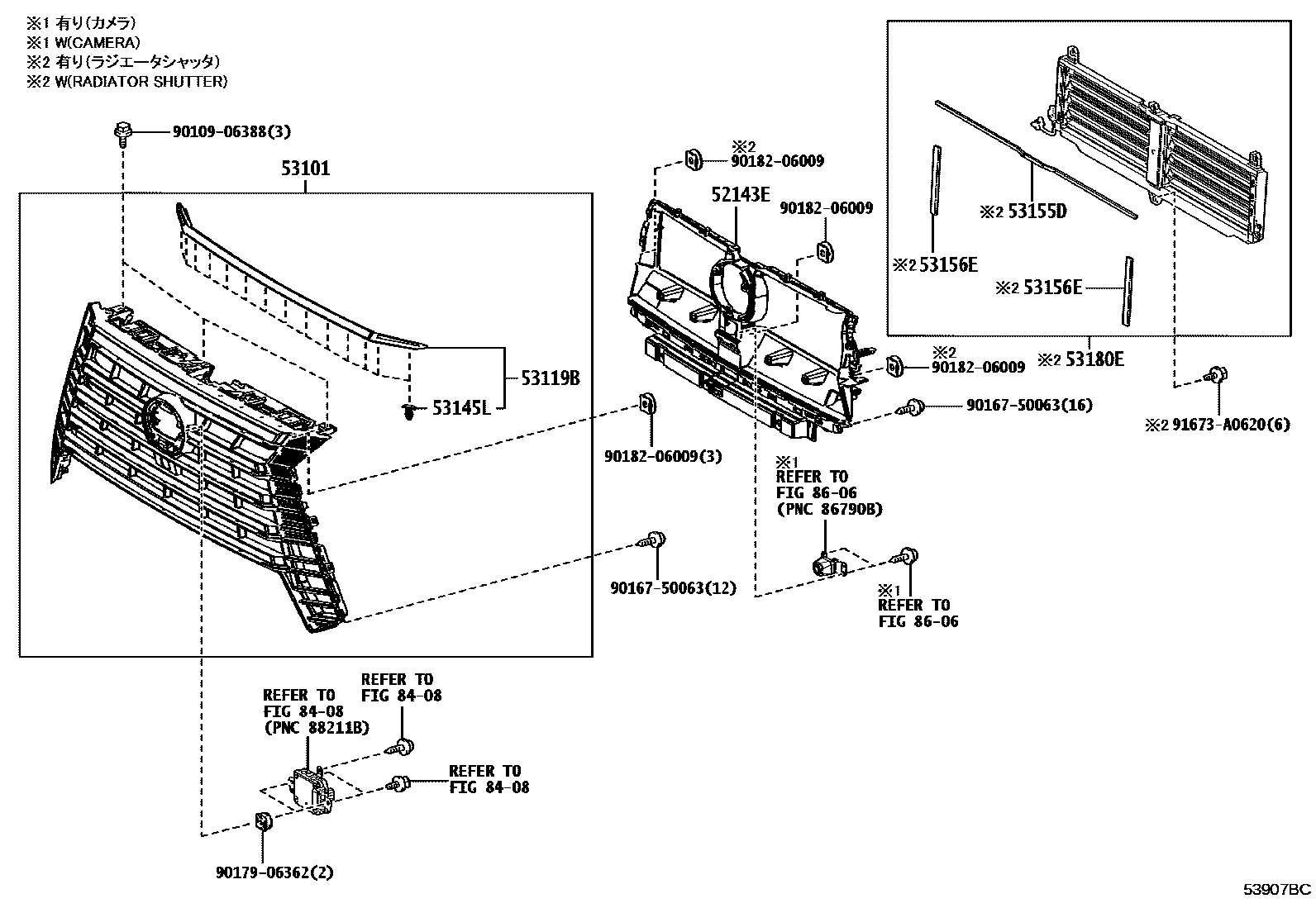

RADIATOR GRILLE
53101GRILLE SUB-ASSY, RADIATOR
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,PREMIUM+ PACKAGE
NO PAINT REQ.,LUXURY PACKAGE
NO PAINT REQ.,LUXURY+ PACKAGE
NO PAINT REQ.,"OVERTRAIL" PACKAGE
NO PAINT REQ.,"OVERTRAIL+" PACKAGE
NO PAINT REQ.
53119BPROTECTOR, RADIATOR GRILLE
53145LCLIP, RADIATOR GRILLE
53155DSEAL, RADIATOR GRILLE, NO.1
53156ESEAL, RADIATOR GRILLE, NO.2
53180ESHUTTER ASSY, RADIATOR
sub53180-60051
LUXURY PACKAGE&TIRE & DISC WHEEL-265/50R22 7.5J ALUMINUM
LUXURY+ PACKAGE&TIRE & DISC WHEEL-265/50R22 7.5J ALUMINUM
"OVERTRAIL" PACKAGE&TIRE & DISC WHEEL-265/70R18 7.5J ALUMINUM
"OVERTRAIL+" PACKAGE&TIRE & DISC WHEEL-265/70R18 7.5J ALUMINUM
8408
8606
9010906388
main90109-06388
9016750063
main90167-50063
9017906362
main90179-06362
9018206009
main90182-06009
91673A0620
main91673-A0620
14 parts on this diagram · 1 diagram in section
