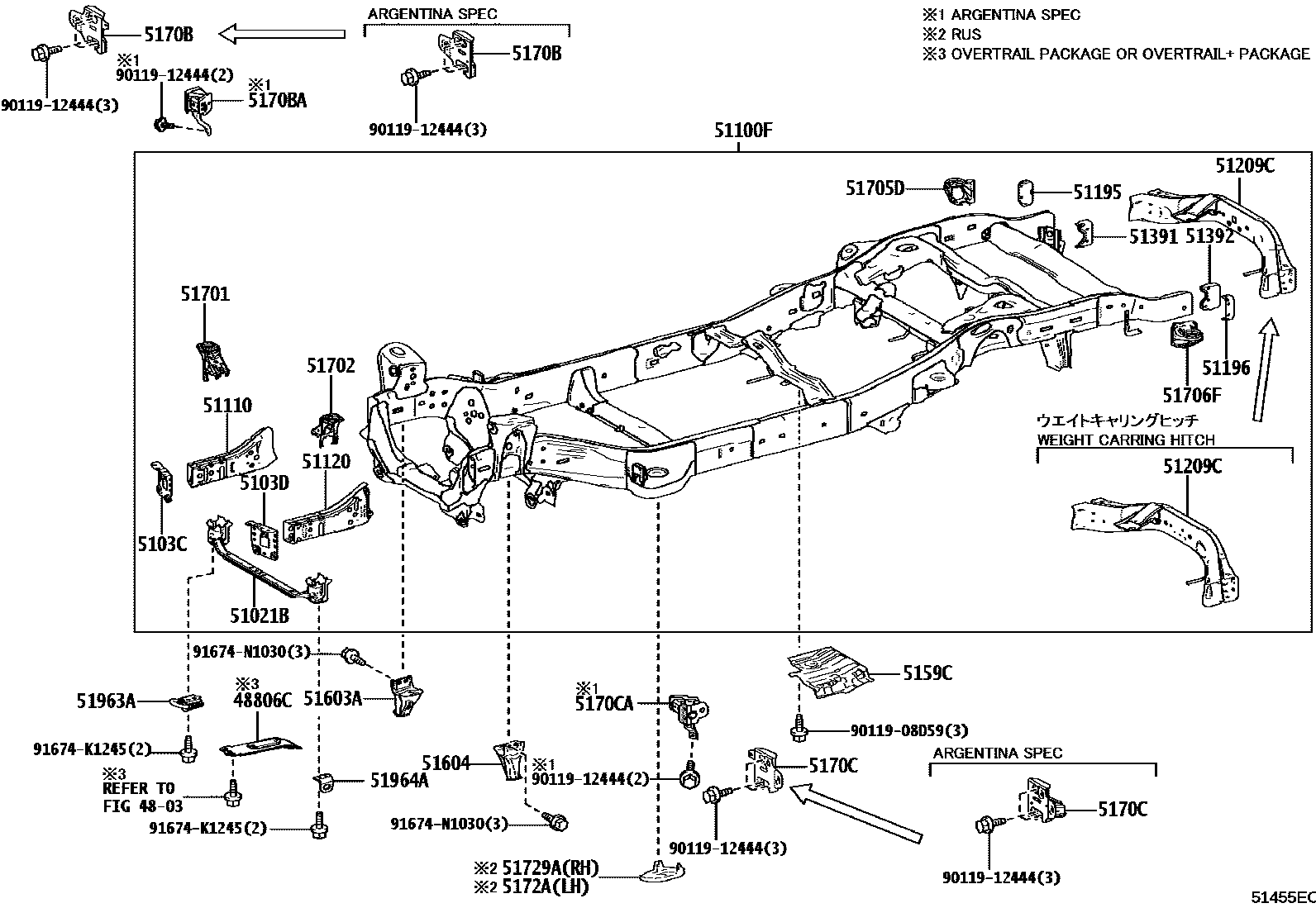

FRAME
4803
48806CBRACE SUB-ASSY, FRONT STABILIZAR, CENTER
"OVERTRAIL+" PACKAGE
51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY
5103CPLATE SUB-ASSY, SIDE RAIL EXTENSION, RH
5103DPLATE SUB-ASSY, SIDE RAIL EXTENSION, LH
51100FFRAME SUB-ASSY
51110EXTENSION ASSY, SIDE RAIL, RH
51120EXTENSION ASSY, SIDE RAIL, LH
51195PATCH, REAR FRAME RAIL, RH
51196PATCH, REAR FRAME RAIL, LH
51209CCROSSMEMBER SUB-ASSY, FRAME, REAR
51391GUSSET, FRAME REAR CROSSMEMBER, RH
51392GUSSET, FRAME REAR CROSSMEMBER, LH
51603ABRACKET SUB-ASSY, FRONT BOUND STOPPER, RH
51604BRACKET SUB-ASSY, FRONT BOUND STOPPER, LH
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51705DBRACKET SUB-ASSY, CAB REAR MOUNTING, RH
51706FBRACKET SUB-ASSY, CAB REAR MOUNTING, LH
5170BREINFORCE SUB-ASSY, CAB MOUNTING BRACKET, NO.1 RH
5170BAREINFORCE SUB-ASSY, CAB MOUNTING BRACKET, NO.2 RH
5170CREINFORCE SUB-ASSY, CAB MOUNTING BRACKET, NO.1 LH
5170CAREINFORCE SUB-ASSY, CAB MOUNTING BRACKET, NO.2 LH
51729ACOVER, NO.2 CAB MOUNTING, RH
5172ACOVER, NO.2 CAB MOUNTING, LH
51963AHOOK, TRANSPORT, FRONT RH
"OVERTRAIL" PACKAGE
51964AHOOK, TRANSPORT, FRONT LH
"OVERTRAIL" PACKAGE
"OVERTRAIL+" PACKAGE
9011908D59
main90119-08D59
9011912444
main90119-12444
91674K1245
main91674-K1245
91674N1030
main91674-N1030
32 parts on this diagram · 3 diagrams in section
