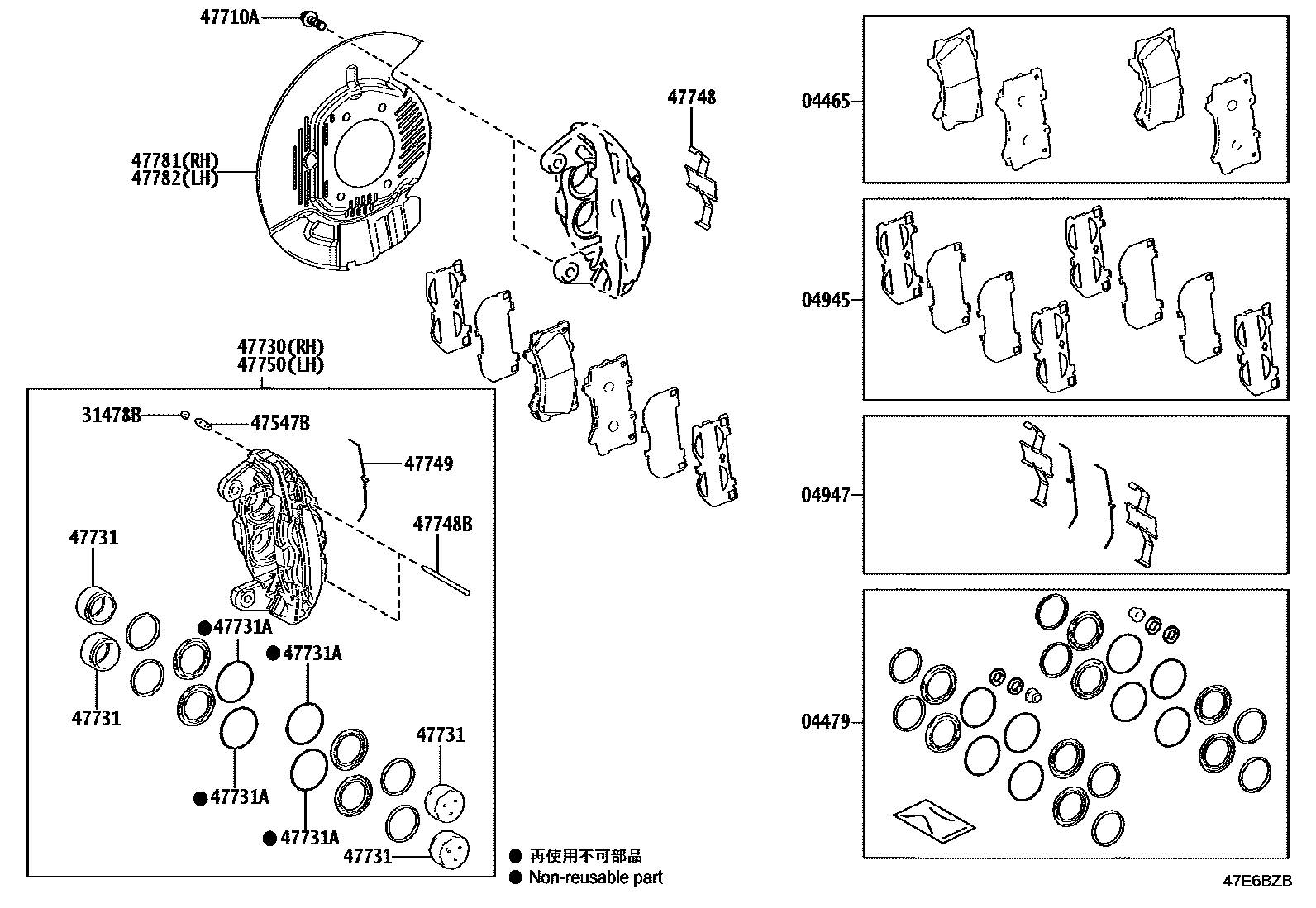

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-60380iTJH252,VJA252202402

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-60070iVJA252202402

main04478-60100iTJH252202403

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-60100iTJH252,VJA252202402

04947FITTING KIT, DISC BRAKE, FRONT

main04947-60150iTJH252,VJA252202402

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iTJH252,VJA252202402

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030iTJH252,VJA252202402

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14216iTJH252,VJA252202402

*14-1.5PX40-34

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-60470iTJH252202403

main47730-60480iVJA252202402

47731PISTON, FRONT DISC BRAKE

main47731-60430iTJH252202403

main47731-60440iVJA252202402

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-53002iTJH252202403

main90522-56003iVJA252202402

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-60440iTJH252,VJA252202402

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06024iTJH252,VJA252202402

47749CLIP, PIN HOLD

main47743-60280iTJH252,VJA252202402

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-60470iTJH252202403

main47750-60480iVJA252202402

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-60190iTJH252202403

main47781-60200iVJA252202402

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-60210iTJH252202403

main47782-60220iVJA252202402

16 parts on this diagram · 1 diagram in section
