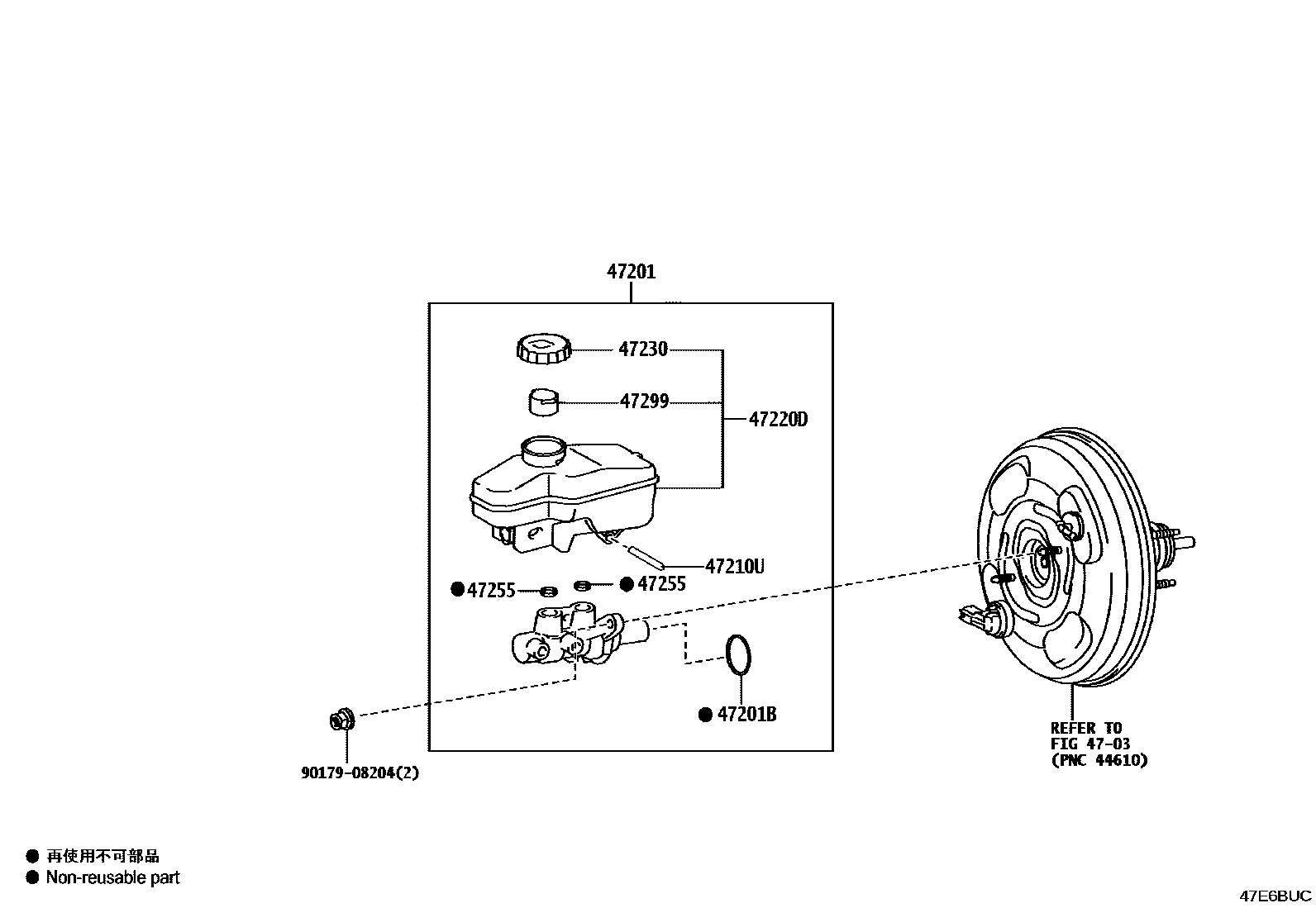

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-60B10iVJA252..ARL202402

main47201-60B30iVJA252..LHD202402

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iVJA252202402

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iVJA252202402

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-60280iVJA252202402

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iTJH252,VJA252..LHD202402

main47230-V2010iVJA252..ARL202402

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iVJA252202402

sub90016-AT001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iVJA252202402

9017908204

main90179-08204

9 parts on this diagram · 3 diagrams in section
