STEERING COLUMN & SHAFT

0001 1 0002 1MANUAL TILT & TELESCOPIC 0003 1POWER TILT & TELESCOPIC 0004 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-60330iVJA252..LHD202402

main45025-60340iTJH252202403

main45025-60350iVJA252..ARL202402

45203ASHAFT, STEERING INTERMEDIATE, NO.2

main45203-60300iTJH252,VJA252..LHD202402

main45203-60310iVJA252..ARL202402

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-60410iTJH252,VJA252..LHD202402

main45220-60420iVJA252..ARL202402

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iTJH252,VJA252..ARL,CHI,RUS202402

main45238-52010iVJA252..GEN202402-202411

45250COLUMN ASSY, STEERING

main45250-33D40iVJA252..GEN202402-202411

main45250-48420iTJH252202403

main45250-48430iVJA252..ARL,RUS202402

45286BCOVER, STEERING COLUMN, UPR

main45286-48100-C0iVJA252..ARL202402

BLACK,TRIM1#,2#,4#

main45286-78020-C0iVJA252..GEN202402-202411

BLACK,TRIM1#,2#,4#

main45286-78030-C0iVJA252..ARL202411

SOUTH AFRICA SPEC,BLACK,TRIM1#,2#,4#

main45286-78030-C0iTJH252,VJA252..CHI,RUS202402

BLACK,TRIM1#,2#,4#

main45286-78030-C0iVJA252..GEN202411

BRUNEI SPEC&,BLACK,TRIM1#,2#,4#

main45286-78030-C0iVJA252..GEN202411

MALAYSIA SPEC&,BLACK,TRIM1#,2#,4#

45287COVER, STEERING COLUMN, LWR

main45024-46080-C0iVJA252..GEN202402-202411

BLACK,TRIM1#,2#,4#

main45024-48110-C0iVJA252..ARL202402

BLACK,TRIM1#,2#,4#

main45024-60060-C0iTJH252,VJA252..CHI,RUS202402

BLACK,TRIM1#,2#,4#

main45024-60060-C0iVJA252..GEN202411

BRUNEI SPEC&,BLACK,TRIM1#,2#,4#

main45024-60060-C0iVJA252..GEN202411

MALAYSIA SPEC&,BLACK,TRIM1#,2#,4#

main45024-60060-C0iVJA252..GEN202411

SOUTH AFRICA SPEC,BLACK,TRIM1#,2#,4#

45897BOLT, STEERING LOCK SET

main45897-12020iVJA252..RUS202402

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iTJH252,VJA252202402

9011908560

main90119-08560

9016450034

main90164-50034

9017810027

main90178-10027

91553A0616

main91553-A0616

9356855014

main93568-55014

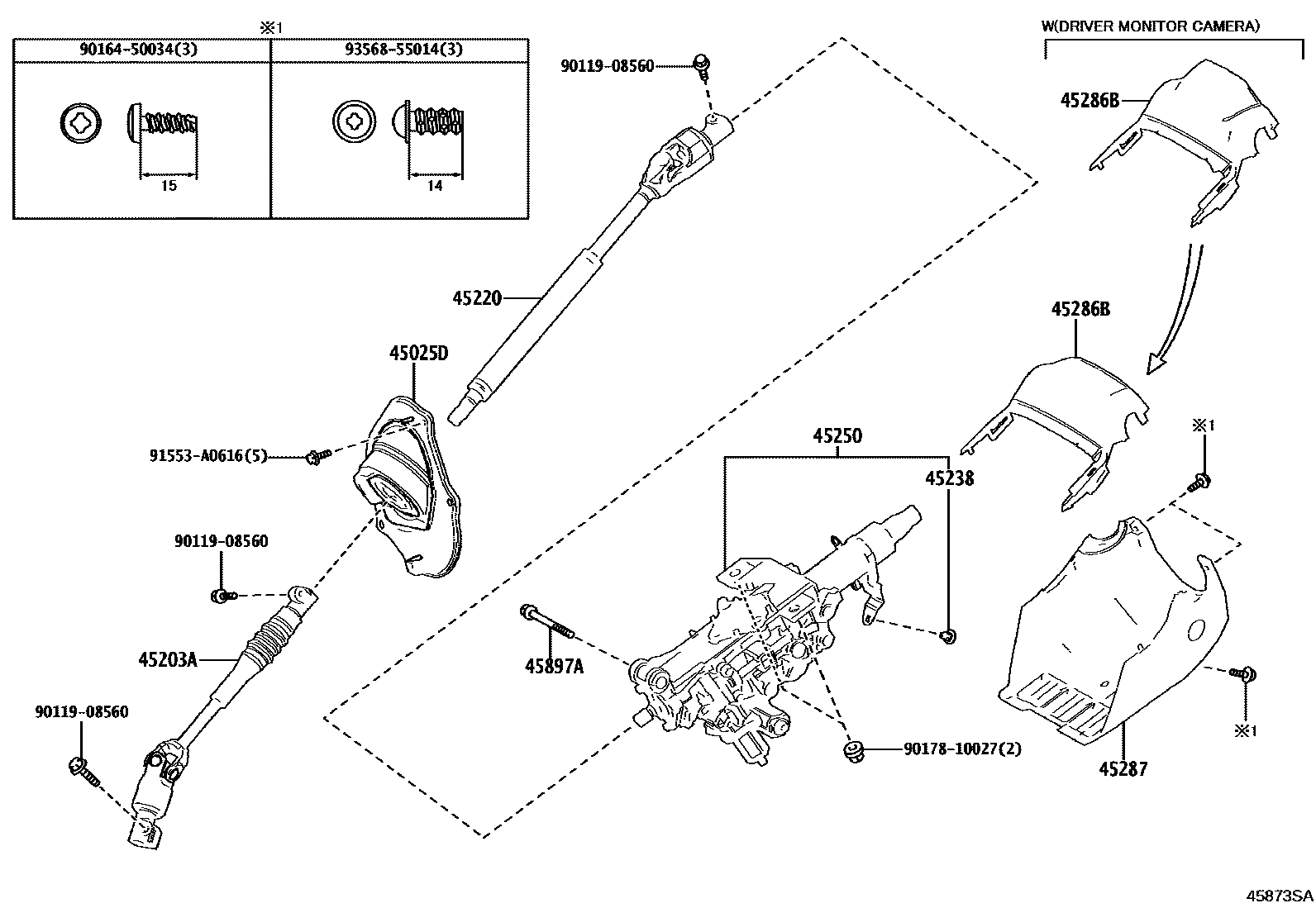

14 parts on this diagram · 4 diagrams in section
