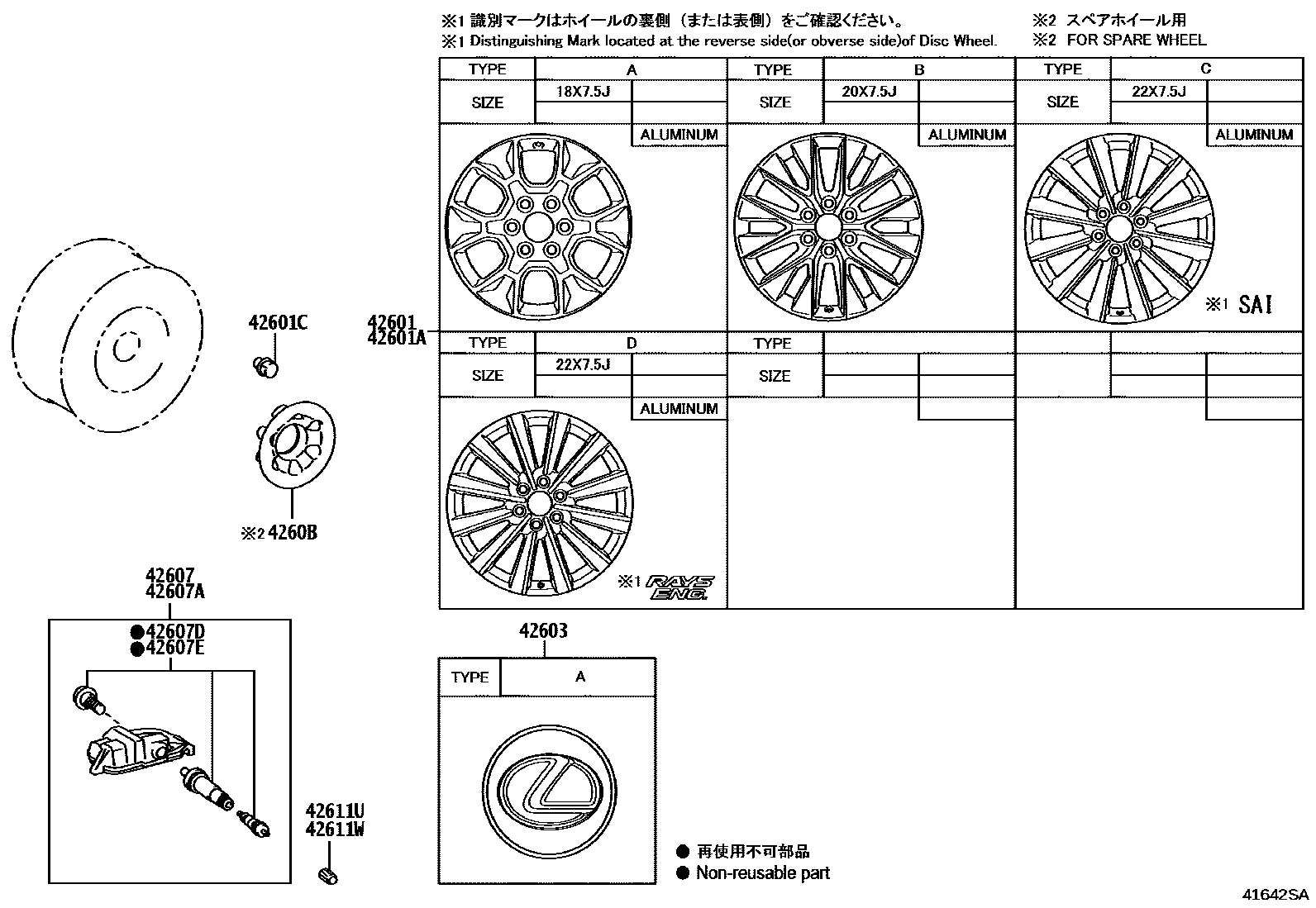

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
18X7.5J,"OVERTRAIL+" PACKAGE,TYPE A:REFER ILLUST.
18X7.5J,TIRE & DISC WHEEL-265/70R18 7.5J ALUMINUM,TYPE A:REFER ILLUST.
18X7.5J,"OVERTRAIL" PACKAGE,TYPE A:REFER ILLUST.
18X7.5J,MEXICO SPEC&"OVERTRAIL+" PACKAGE,TYPE A:REFER ILLUST.
18X7.5J,"OVERTRAIL+" PACKAGE,TYPE A:REFER ILLUST.
20X7.5J,PREMIUM+ PACKAGE,TYPE B:REFER ILLUST.
20X7.5J,TYPE B:REFER ILLUST.
20X7.5J,PREMIUM+ PACKAGE,TYPE B:REFER ILLUST.
20X7.5J,MEXICO SPEC&PREMIUM+ PACKAGE,TYPE B:REFER ILLUST.
20X7.5J,TYPE B:REFER ILLUST.
20X7.5J,TYPE B:REFER ILLUST.
20X7.5J,MEXICO SPEC,TYPE B:REFER ILLUST.
22X7.5J,LUXURY PACKAGE,TYPE C:REFER ILLUST.
22X7.5J,TIRE & DISC WHEEL-265/50R22 7.5J ALUMINUM,TYPE C:REFER ILLUST.
22X7.5J,LUXURY+ PACKAGE,TYPE C:REFER ILLUST.
22X7.5J,MEXICO SPEC&LUXURY PACKAGE,TYPE C:REFER ILLUST.
22X7.5J,MEXICO SPEC&LUXURY+ PACKAGE,TYPE C:REFER ILLUST.
22X7.5J,MEXICO SPEC&LUXURY+ PACKAGE,TYPE D:REFER ILLUST.
22X7.5J,LUXURY PACKAGE,TYPE D:REFER ILLUST.
22X7.5J,LUXURY+ PACKAGE,TYPE D:REFER ILLUST.
22X7.5J,TIRE & DISC WHEEL-265/50R22 7.5J ALUMINUM,TYPE D:REFER ILLUST.
22X7.5J,MEXICO SPEC&LUXURY PACKAGE,TYPE D:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
18X7.5J,"OVERTRAIL+" PACKAGE,TYPE A:REFER ILLUST.
18X7.5J,"OVERTRAIL" PACKAGE,TYPE A:REFER ILLUST.
18X7.5J,TIRE & DISC WHEEL-265/70R18 7.5J ALUMINUM,TYPE A:REFER ILLUST.
18X7.5J,"OVERTRAIL+" PACKAGE,TYPE A:REFER ILLUST.
18X7.5J,MEXICO SPEC&"OVERTRAIL+" PACKAGE,TYPE A:REFER ILLUST.
20X7.5J,PREMIUM+ PACKAGE,TYPE B:REFER ILLUST.
20X7.5J,PREMIUM+ PACKAGE,TYPE B:REFER ILLUST.
20X7.5J,TYPE B:REFER ILLUST.
20X7.5J,MEXICO SPEC&PREMIUM+ PACKAGE,TYPE B:REFER ILLUST.
20X7.5J,TYPE B:REFER ILLUST.
20X7.5J,TYPE B:REFER ILLUST.
20X7.5J,MEXICO SPEC,TYPE B:REFER ILLUST.
22X7.5J,TIRE & DISC WHEEL-265/50R22 7.5J ALUMINUM,TYPE C:REFER ILLUST.
22X7.5J,LUXURY PACKAGE,TYPE C:REFER ILLUST.
22X7.5J,MEXICO SPEC&LUXURY PACKAGE,TYPE C:REFER ILLUST.
22X7.5J,MEXICO SPEC&LUXURY+ PACKAGE,TYPE C:REFER ILLUST.
22X7.5J,LUXURY+ PACKAGE,TYPE C:REFER ILLUST.
22X7.5J,LUXURY PACKAGE,TYPE D:REFER ILLUST.
22X7.5J,LUXURY+ PACKAGE,TYPE D:REFER ILLUST.
22X7.5J,TIRE & DISC WHEEL-265/50R22 7.5J ALUMINUM,TYPE D:REFER ILLUST.
22X7.5J,MEXICO SPEC&LUXURY PACKAGE,TYPE D:REFER ILLUST.
22X7.5J,MEXICO SPEC&LUXURY+ PACKAGE,TYPE D:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
"OVERTRAIL" PACKAGE
"OVERTRAIL+" PACKAGE
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TYPE A:REFER ILLUST.
*ALU,"OVERTRAIL" PACKAGE,TYPE A:REFER ILLUST.
*ALU,"OVERTRAIL+" PACKAGE,TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
MEXICO SPEC&PREMIUM+ PACKAGE
MEXICO SPEC
MEXICO SPEC&LUXURY PACKAGE
MEXICO SPEC&LUXURY+ PACKAGE
MEXICO SPEC&"OVERTRAIL+" PACKAGE
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
MEXICO SPEC
MEXICO SPEC&PREMIUM+ PACKAGE
MEXICO SPEC&LUXURY PACKAGE
MEXICO SPEC&LUXURY+ PACKAGE
MEXICO SPEC&"OVERTRAIL+" PACKAGE
42607DVALVE, TIRE PRESSURE MONITOR
42607EVALVE, TIRE PRESSURE MONITOR (FOR SPARE)
4260BCOVER SUB-ASSY, WHEEL HUB
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
11 parts on this diagram · 2 diagrams in section
