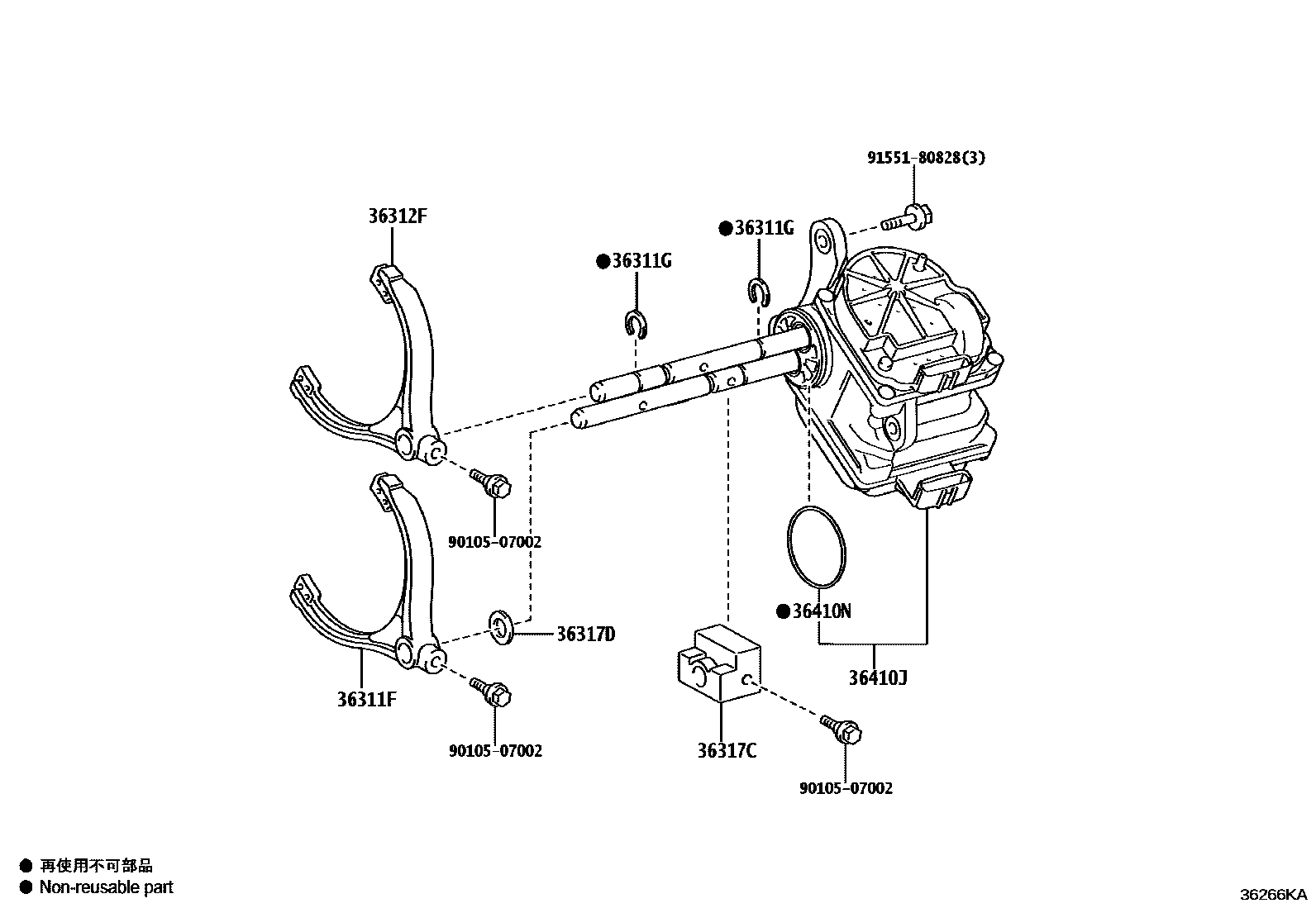

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36301-34010iVJA252202402

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13002iTJH252202403

main90520-13006iVJA252202402

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36302-35020iTJH252202403

main36311-60130iVJA252202402

36317CSTOPPER, TRANSFER SHIFT SHAFT

main36317-60030iVJA252202402

36317DSTOPPER, NO.2, TRANSFER SHIFT SHAFT

main36317-60040iVJA252202402

36410JACTUATOR ASSY, TRANSFER SHIFT

main36410-35110iTJH252202403

main36410-60130iVJA252202402

36410NRING, O (FOR TRANSFER SHIFT ACTUATOR)

main90301-56009iVJA252202402

9010507002

main90105-07002

9155180828

main91551-80828

9 parts on this diagram · 2 diagrams in section
