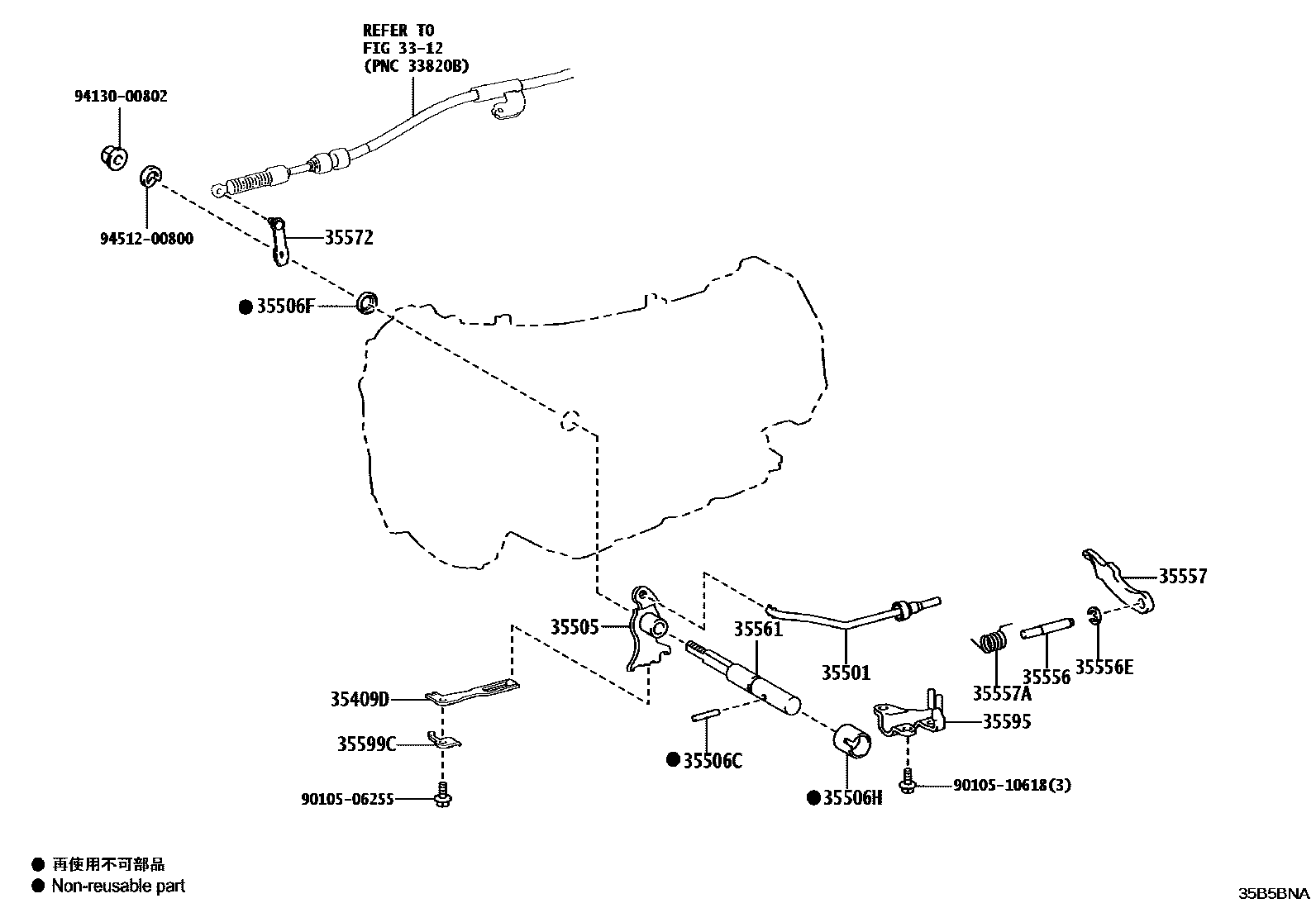

THROTTLE LINK & VALVE LEVER (ATM)

0001 1AJA0F 0002 1L580F

3312

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-22050iTJH252202403

main35409-60060iVJA252202402

35501ROD SUB-ASSY, PARKING LOCK

main35501-60050iVJA252202402

main35501-60060iTJH252202403

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-60110iVJA252202402

main35505-60120iTJH252202403

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iTJH252,VJA252202402

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iVJA252202402

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iTJH252,VJA252202402

35556SHAFT, PARKING LOCK PAWL

main35556-60020iTJH252202403

main35556-60030iVJA252202402

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iTJH252,VJA252202402

35557PAWL, PARKING LOCK

main35557-60060iVJA252202402

main35557-60070iTJH252202403

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03123iTJH252202403

main90949-03147iVJA252202402

35561SHAFT, MANUAL VALVE LEVER

main35561-60030iTJH252202403

main35561-60050iVJA252202402

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-60170iVJA252202402

35595BRACKET, PARKING LOCK PAWL

main35595-60050iVJA252202402

main35595-60060iTJH252202403

35599CCOVER, MANUAL DETENT SPRING

main35599-22050iTJH252202403

main35599-60040iVJA252202402

9010506255

main90105-06255

9010510618

main90105-10618

9413000802

main94130-00802

9451200800

main94512-00800

19 parts on this diagram · 2 diagrams in section
