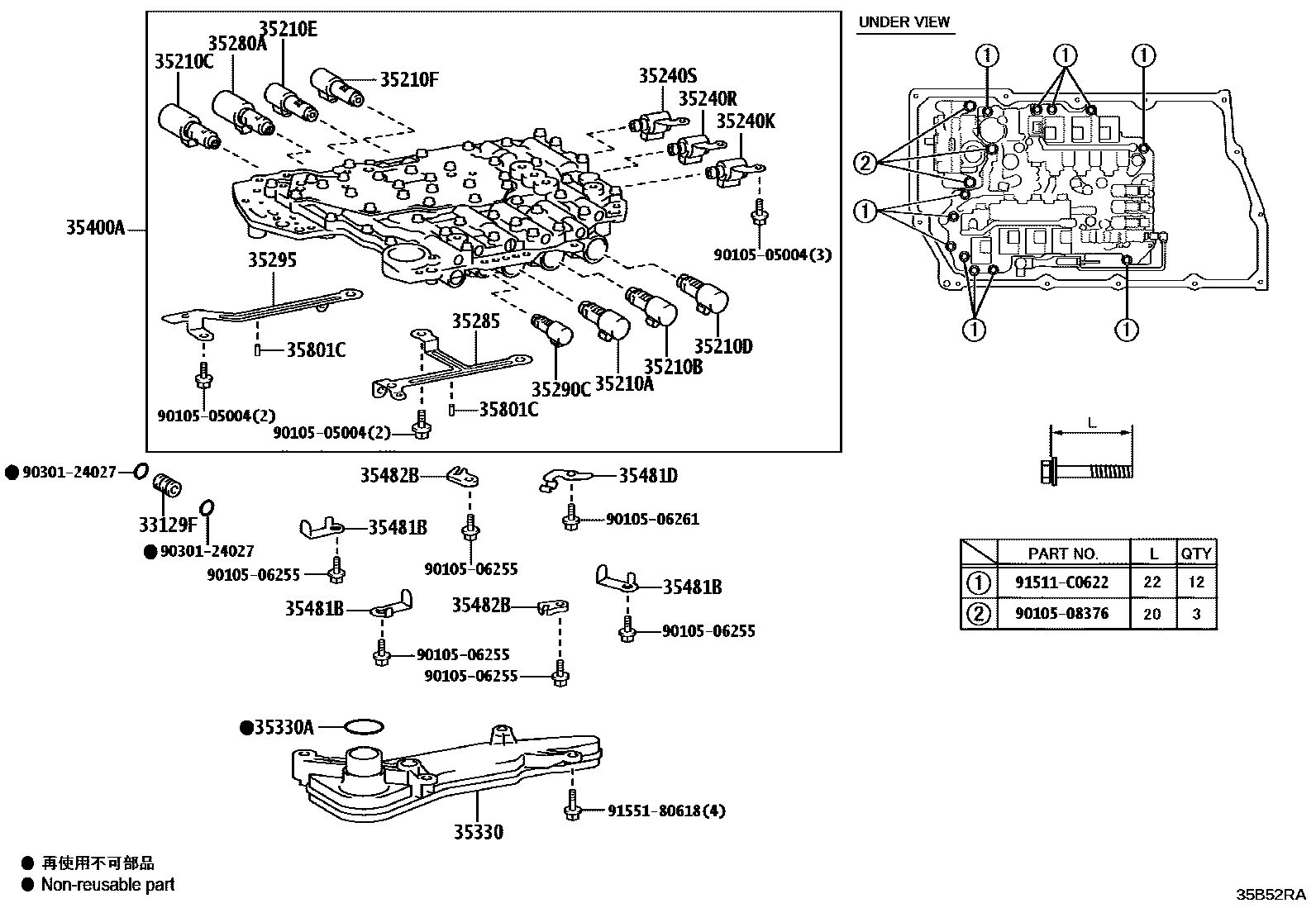

VALVE BODY & OIL STRAINER (ATM)
35210AVALVE, SOLENOID(SL1)
35210BVALVE, SOLENOID(SL3)
35210CVALVE, SOLENOID(SL2)
35210DVALVE, SOLENOID(SL4)
35210EVALVE, SOLENOID(SL5)
35210FVALVE, SOLENOID(SL6)
35240KSOLENOID ASSY, TRANSMISSION 3WAY(SC1)
35240RSOLENOID ASSY, TRANSMISSION 3WAY(SR)
35240SSOLENOID ASSY, TRANSMISSION 3WAY(SL)
35285PLATE, SOLENOID LOCK
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.3:REFER ILLUST.
35290SOLENOID ASSY, LINE PRESSURE CONTROL
35290CVALVE, SOLENOID(SLT)
35295PLATE, SOLENOID LOCK, NO.2
35400ABODY ASSY, TRANSMISSION VALVE W/SOLENOID
35481BCLAMP, VALVE BODY WIRE HARNESS
35481DCLAMP, VALVE BODY WIRE HARNESS, NO.2
35801CPIN, STRAIGHT
9010505004
9010506255
9010506261
9010508376
9030124027
91511C0622
9155180618
29 parts on this diagram · 4 diagrams in section
