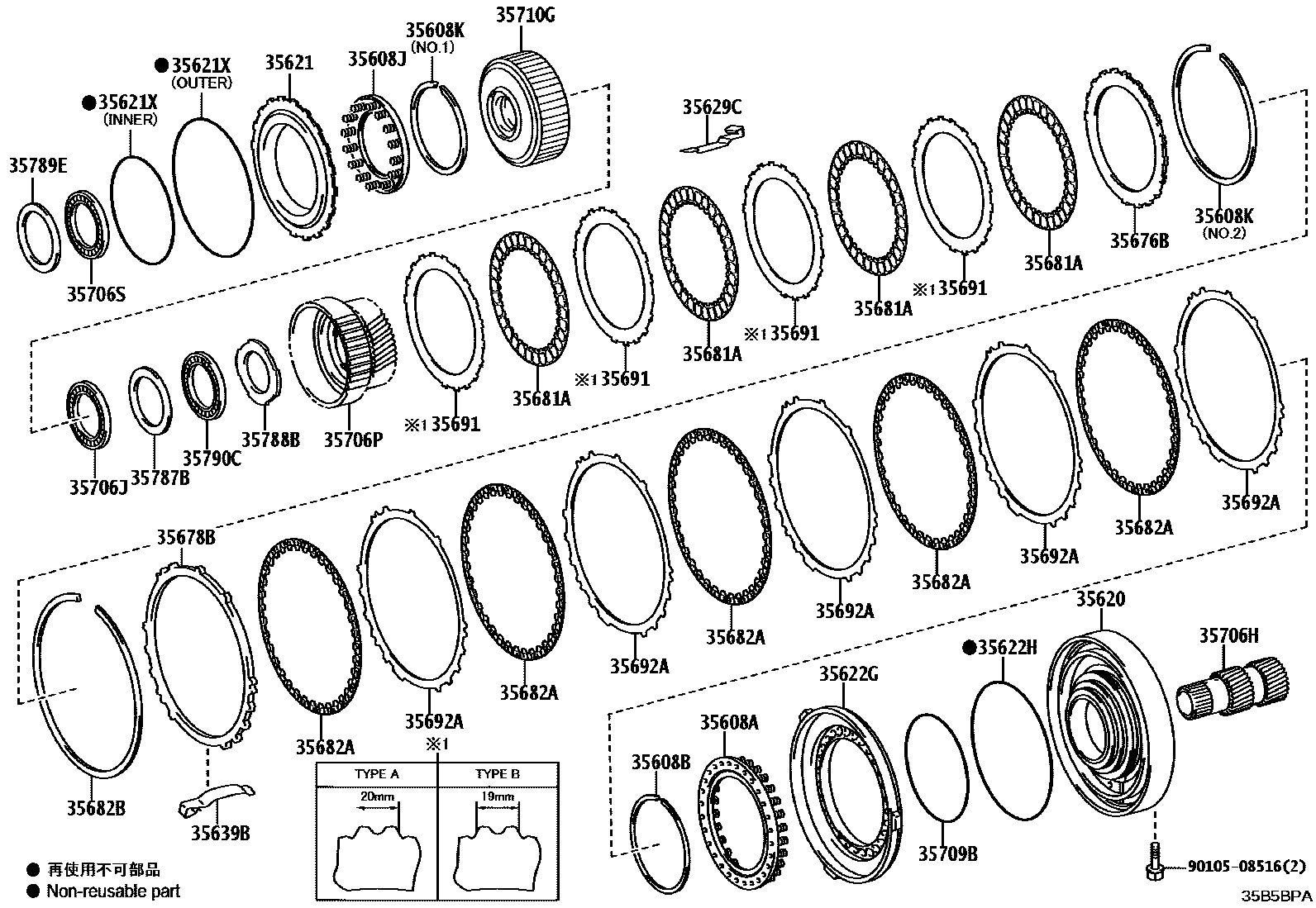

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35608ASPRING SUB-ASSY, BRAKE PISTON RETURN
35608BRING, HOLE SNAP (FOR BRAKE PISTON RETURN SPRING)
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35621PISTON, BRAKE, NO.1
35621XRING, O (FOR BRAKE PISTON NO.1)
INNER
OUTER
35622GPISTON, BRAKE, NO.2
35622HRING, O (FOR BRAKE PISTON NO.2)
35629CSPRING, 1ST & REVERSE BRAKE PLATE STOPPER
35639BSPRING, BRAKE PLATE STOPPER
35676BFLANGE, BRAKE, NO.1
T=5.5
T=5.5
T=5.6
T=5.6
T=5.7
T=5.7
T=5.8
T=5.8
T=5.9
T=5.9
T=6.0
T=6.0
T=6.1
T=6.1
35678BFLANGE, BRAKE, NO.2
T=6.8,MARK 0
T=6.9,MARK 1
T=7.0,MARK 2
T=7.1,MARK 3
T=7.2,MARK 4
T=7.3,MARK 5
T=7.4,MARK 6
T=7.5,MARK 7
T=7.6,MARK 8
T=4.3
35681ADISC, BRAKE, NO.1
35682BRING, HOLE SNAP(FOR DISC BRAKE NO.2)
35691PLATE, BRAKE, NO.1
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
35706HGEAR SUB-ASSY, PLANETARY SUN
35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
35706PGEAR SUB-ASSY, FRONT PLANETARY SUN
35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)
35709BRING, O (FOR CENTER SUPPORT)
35710GGEAR ASSY, PLANETARY SUN
35787BRACE, THRUST BEARING, NO.2
35788BRACE, THRUST BEARING, NO.3
35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)
T=2.5
T=2.9
T=2.7
35790CBEARING, THRUST NEEDLE ROLLER
9010508516
29 parts on this diagram · 2 diagrams in section
