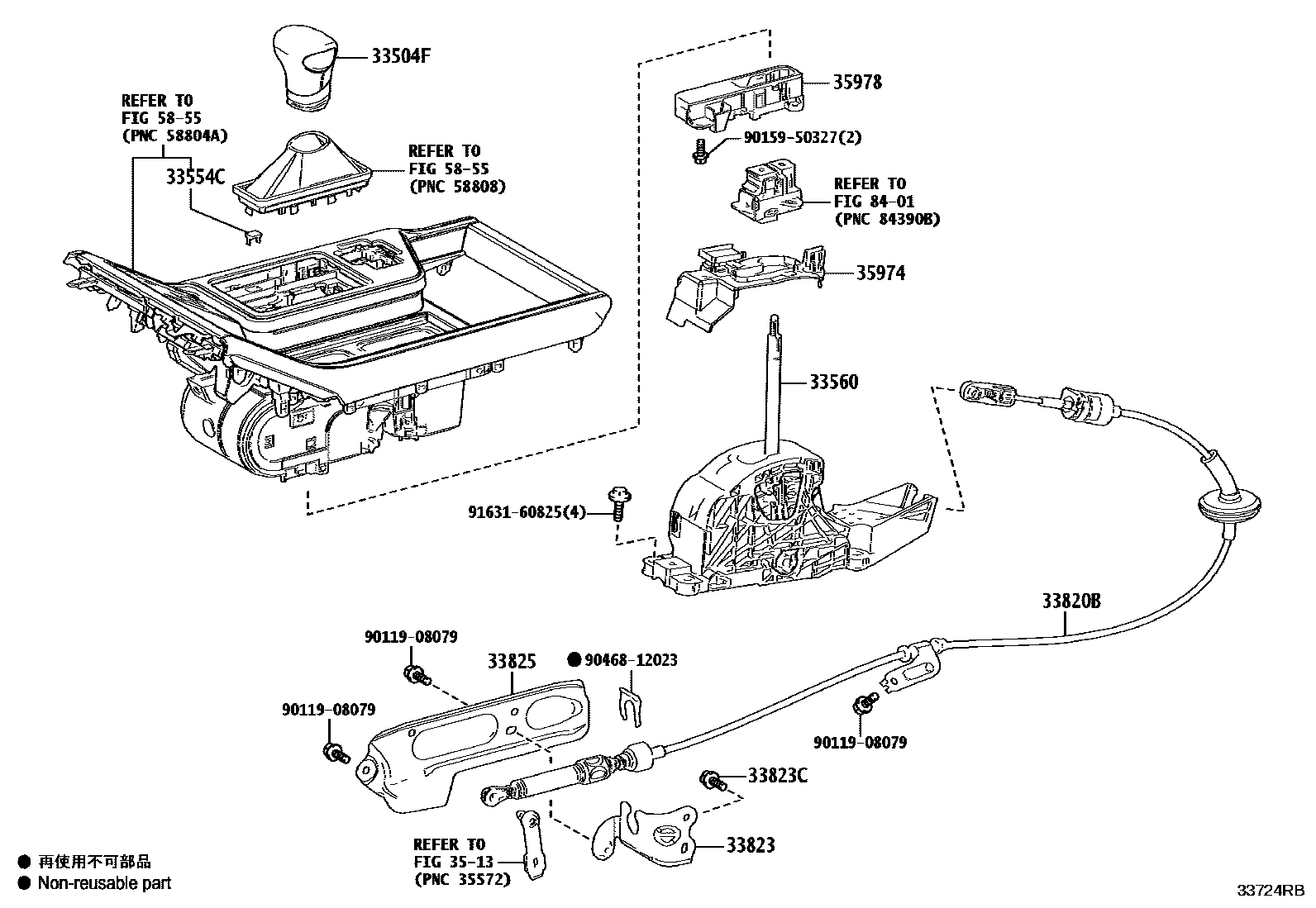

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-33200-C0iTJH252,VJA252..LHD202402

BLACK,TRIM1#,2#,4#

main33504-33220-C0iVJA252..ARL202402

BLACK,TRIM1#,2#,4#

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-60230iTJH252,VJA252202402

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-60250iVJA252..LHD202402

main33560-60260iVJA252..ARL202402

main33560-60290iTJH252202403

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-60260iTJH252202403

main33820-60290iVJA252202402

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-60040iVJA252202402

main33823-60070iTJH252202403

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iTJH252,VJA252202402

33825INSULATOR, TRANSMISSION CONTROL CABLE

main33825-60020iVJA252202402

3513

35974HOUSING, POSITION INDICATOR, LOWER

main35974-60240iVJA252..ARL202402

main35974-60250iVJA252..LHD202402

main35974-60260iTJH252202403

35978INDICATOR, SHIFT POSITION

main35978-60220iVJA252..ARL202402

main35978-60230iTJH252,VJA252..LHD202402

5855

8401

9011908079

main90119-08079

9015950327

main90159-50327

9046812023

main90468-12023

9163160825

main91631-60825

16 parts on this diagram · 3 diagrams in section
