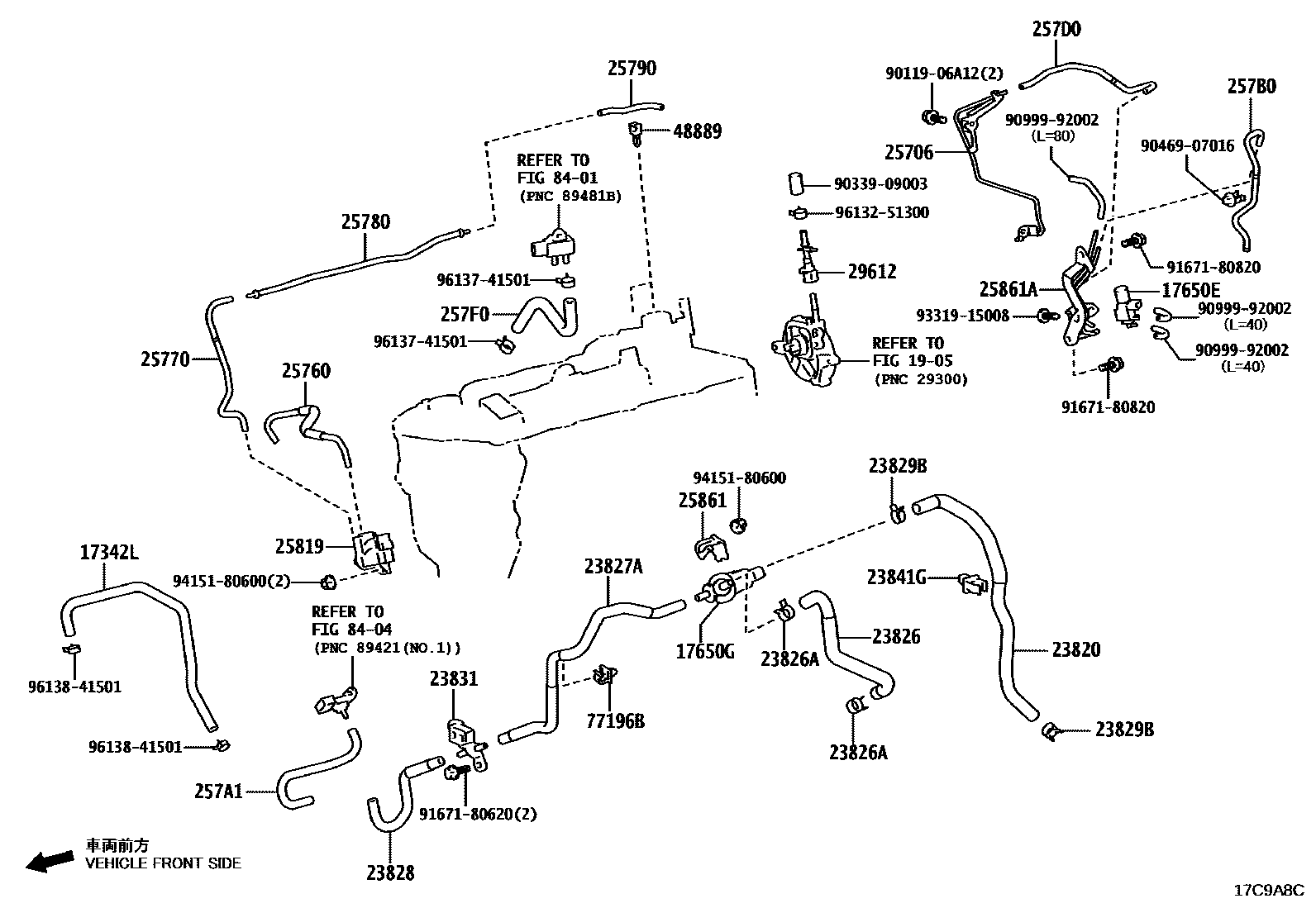

VACUUM PIPING
17342LHOSE, AIR, NO.2
17650EVALVE, VACUUM SWITCHING
17650GVALVE, DUTY VACUUM SWITCHING
1905
23820HOSE ASSY, FUEL VAPOR FEED
23826HOSE, FUEL VAPOR FEED, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
23827AHOSE, FUEL VAPOR FEED, NO.2
23828HOSE, FUEL VAPOR FEED, NO.3
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
23831CONNECTOR, FUEL VAPOR FEED, NO.1
25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25760HOSE ASSY, VACUUM TRANSMITTING
25770HOSE ASSY, VACUUM TRANSMITTING, NO.2
25780HOSE ASSY, VACUUM TRANSMITTING, NO.3
25790HOSE ASSY, VACUUM TRANSMITTING, NO.4
257A1HOSE, VACUUM TRANSMITTING, NO.5
257B0HOSE ASSY, VACUUM TRANSMITTING, NO.6
257D0HOSE ASSY, VACUUM TRANSMITTING, NO.8
257F0HOSE ASSY, VACUUM TRANSMITTING, NO.10
25819VALVE ASSY, VACUUM REGULATING
25861BRACKET, VACUUM SWITCHING VALVE
25861ABRACKET, VACUUM SWITCHING VALVE, NO.2
29612CONNECTOR, VACUUM PUMP
48889CLAMP, STABILIZER CONTROL TUBE
77196BCLAMP, EVAPORATION VENT TUBE, NO.1
8401
8404
9011906A12
9033909003
9046907016
9099992002
9167180620
9167180820
9331915008
9415180600
9613251300
9613741501
9613841501
40 parts on this diagram · 2 diagrams in section
