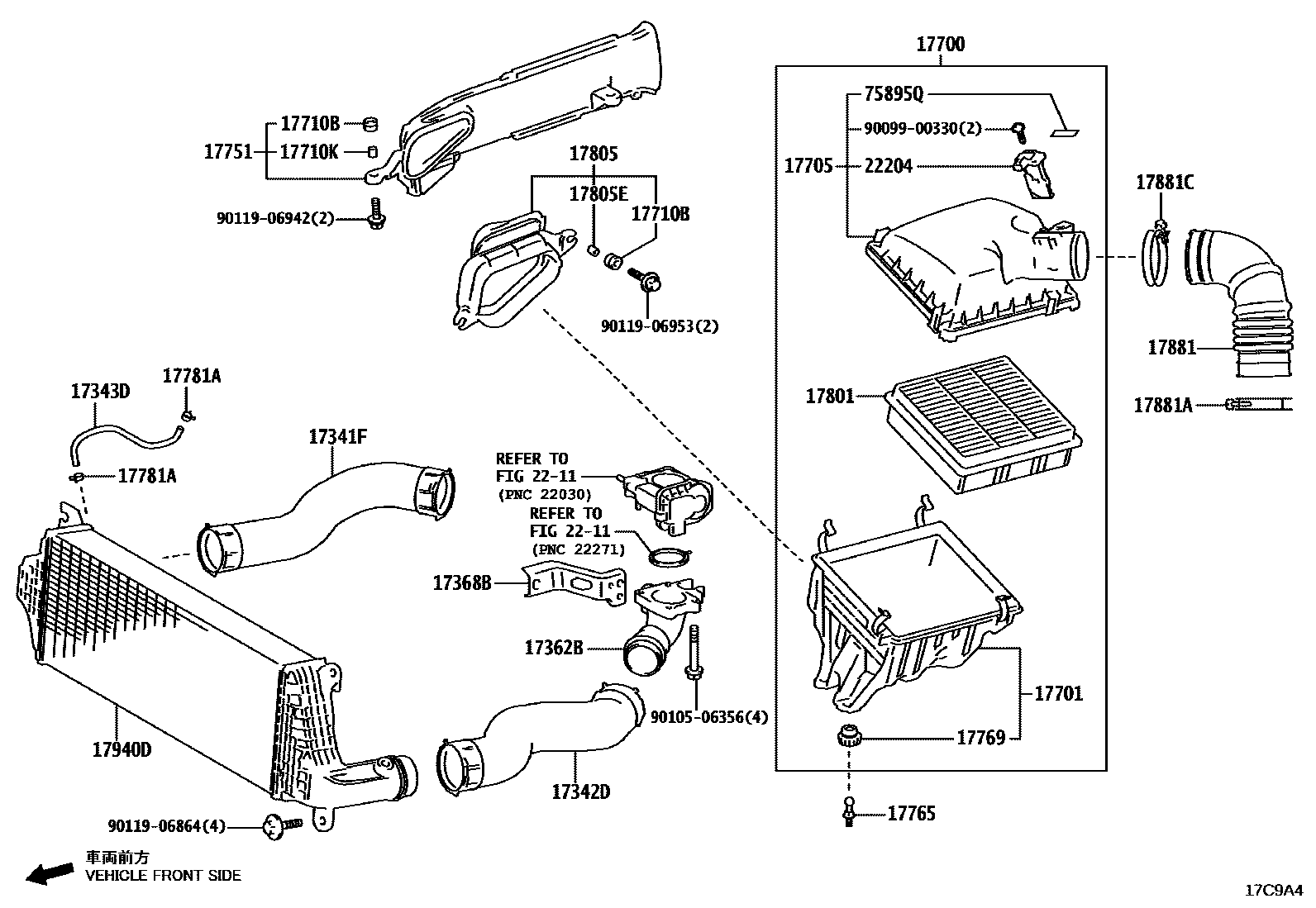

AIR CLEANER

0001 1 0002 1 0003 1

17341FHOSE, AIR, NO.1

main17341-25010iT24..TJH252202403

17342DHOSE, AIR, NO.2

main17342-25061iT24..TJH252202403

17343DHOSE, AIR, NO.3

main17343-25010iT24..TJH252202403

17362BTUBE, AIR, NO.2

main17030-25020iT24..TJH252202403-202410

main17030-25021iT24..TJH252202411

17368BSUPPORT, AIR TUBE

main17368-25030iT24..TJH252202403

17700CLEANER ASSY, AIR

main17700-25240iT24..TJH252202403

17701CASE SUB-ASSY, AIR CLEANER

main17701-25130iT24..TJH252202403

main17701-70180iV35AFTS..VJA252202402

17705CAP SUB-ASSY, AIR CLEANER

main17705-25100iT24..TJH252202403

17710BGROMMET

main90480-14021iV35AFTS..VJA252202402

17710KCOLLAR(FOR AIR CLEANER)

main90387-07016iT24..TJH252202402

17751INLET, AIR CLEANER, NO.1

main17751-25100iT24..TJH252202403

main17751-70180iV35AFTS..VJA252202402

17765STAY, AIR CLEANER, NO.1

main17765-25010iV35AFTS..VJA252202402

17769SUPPORT, AIR CLEANER

main17769-25030iV35AFTS..VJA252202402

17781ACLAMP, HOSE

main96133-40701iT24..TJH252202403

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31141iV35AFTS..VJA252202402

main17801-31180iT24..TJH252202403

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-25010iT24..TJH252202403

main17805-70120iV35AFTS..VJA252202402

17805ECOLLAR(FOR INTAKE AIR CONNECTOR)

main90387-07016iT24..TJH252202403

17881HOSE, AIR CLEANER, NO.1

main17881-25090iT24..TJH252202403

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10800iT24..TJH252202403

17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10830iT24..TJH252202403

17940DINTERCOOLER ASSY

main17900-70010iV35AFTS..VJA252202402

main17940-25020iT24..TJH252202403

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-24010iV35AFTS..VJA252202402

75895QTAPE, MOULDING, NO.1

main75895-52050iTJH252202403

9009900330

main90099-00330

9010506356

main90105-06356

9011906864

main90119-06864

9011906942

main90119-06942

9011906953

main90119-06953

29 parts on this diagram · 3 diagrams in section
