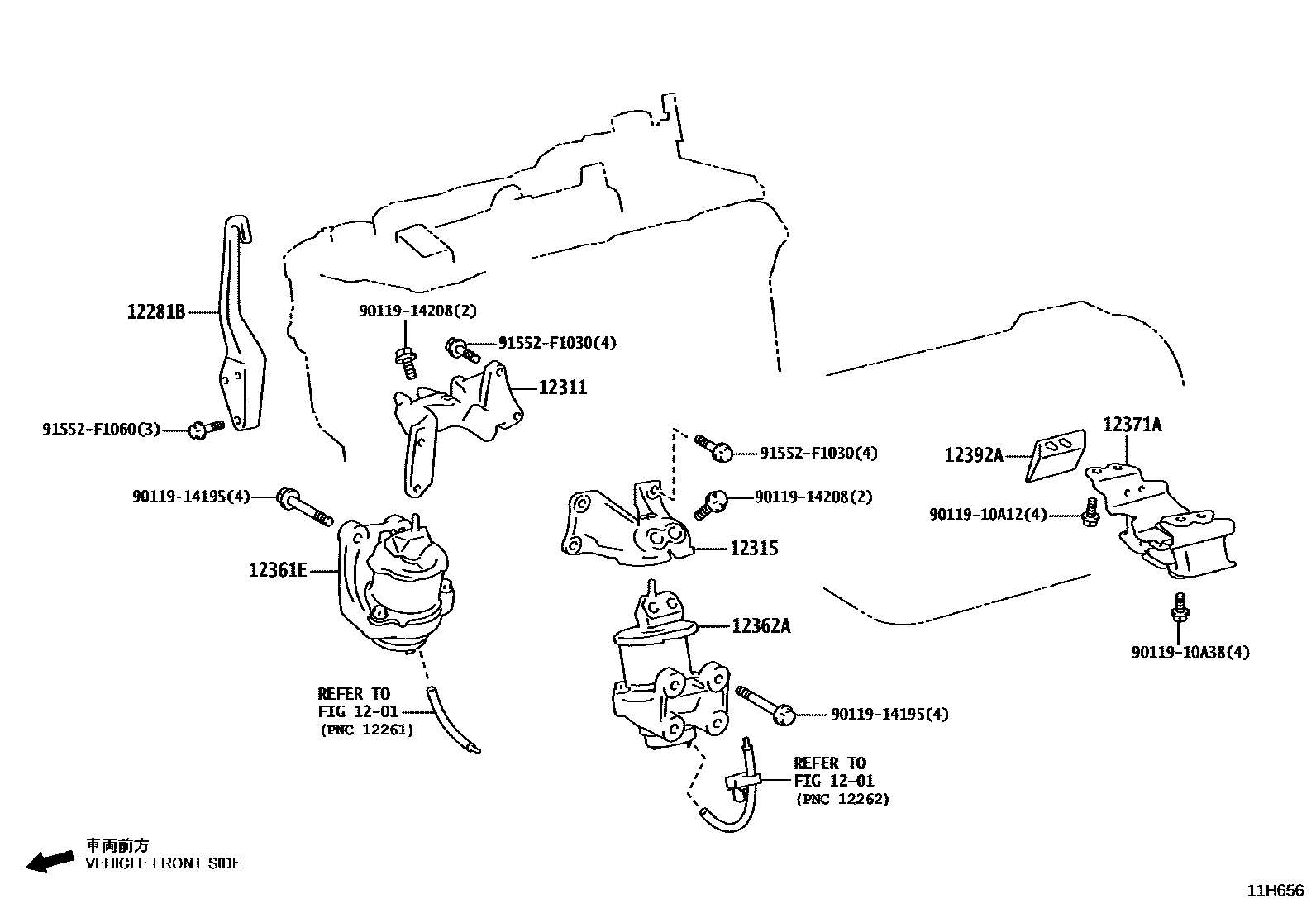

MOUNTING

0001 1 0002 1

1201

12281BHANGER, ENGINE, NO.1

main12281-25110iT24..TJH252202403

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-25150iT24..TJH252202403

main12311-70190iV35AFTS..VJA252202402

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-25060iT24..TJH252202403

main12315-70160iV35AFTS..VJA252202402

12361EINSULATOR, ENGINE MOUNTING, FRONT RH

main12361-25160iT24..TJH252202403

main12361-70320iV35AFTS..VJA252202402

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12362-25030iT24..TJH252202403

main12362-70030iV35AFTS..VJA252202402

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-25200iT24..TJH252202403

main12371-70130iV35AFTS..VJA252202402

12392AINSULATOR, ENGINE MOUNTING HEAT, REAR

main12391-25030iT24..TJH252202403

main12391-70050iV35AFTS..VJA252202402

9011910A12

main90119-10A12

9011910A38

main90119-10A38

9011914195

main90119-14195

9011914208

main90119-14208

91552F1030

main91552-F1030

91552F1060

main91552-F1060

14 parts on this diagram · 2 diagrams in section
