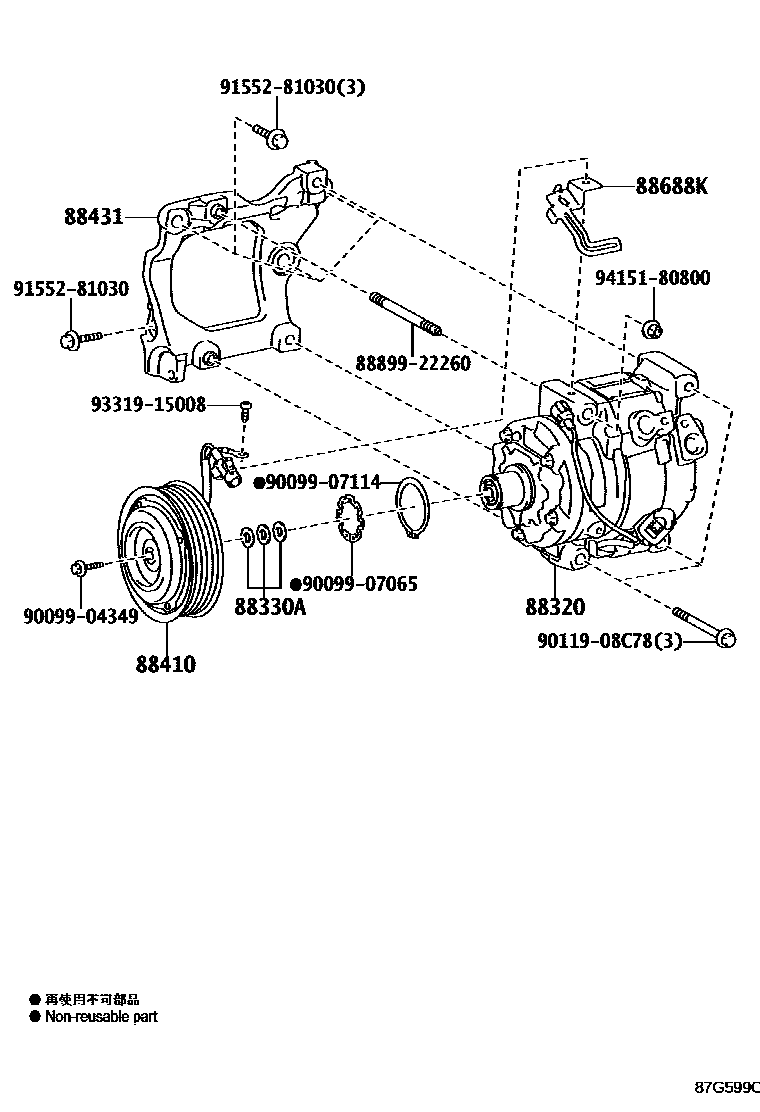

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88320COMPRESSOR ASSY, COOLER

main88320-60800iGDJ155..LHD..6F202008-202312

WVTA COUNTRIES, MACEDONIA SPEC

main88320-60800iGDJ15#..6FC..EUR202008-202312

ICELAND SPEC

main88320-60800iGDJ15#..6FC..EUR202008-202312

TURKEY SPEC

main88320-60800iGDJ15#..6FC..EUR202008-202312

ISRAEL SPEC

main88320-60800iGDJ155..RHD..6F202208-202312

main88320-60A01iGDJ150..6FC..EUR;GDJ155,TRJ150..5F,6FC201708-202312

main88320-60A40iTRJ150202008-202312

main88320-60D10iGRJ150202106-202312

main88320-6A460iKDJ150201708-202007

TYPE A:REFER ILLUST.

main88320-6A540iGRJ150201708-202106

TYPE A:REFER ILLUST.

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

88410CLUTCH ASSY, MAGNET

main88410-2F010iGRJ150201708-202106

main88410-60450iGRJ150201708-202312

main88410-60470iTRJ150202008-202312

main88410-6A180iKDJ150201708-202007

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main16620-30010iKDJ150201708-202007

main88431-60320iTRJ150201708-202312

main88431-60330iGDJ15#201708-202312

88688KBRACKET, COOLER COMPRESSOR

main88688-6B260iGRJ150201708-202312

main88688-6B260iGRJ150201708-202106

TYPE A:REFER ILLUST.

main88688-6B270iKDJ150201708-202007

TYPE A:REFER ILLUST.

8889922260COVER, EVAPORATOR

main88899-22260

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9011908C78

main90119-08C78

9155281030

main91552-81030

9331915008

main93319-15008

9415180800

main94151-80800

13 parts on this diagram · 4 diagrams in section
