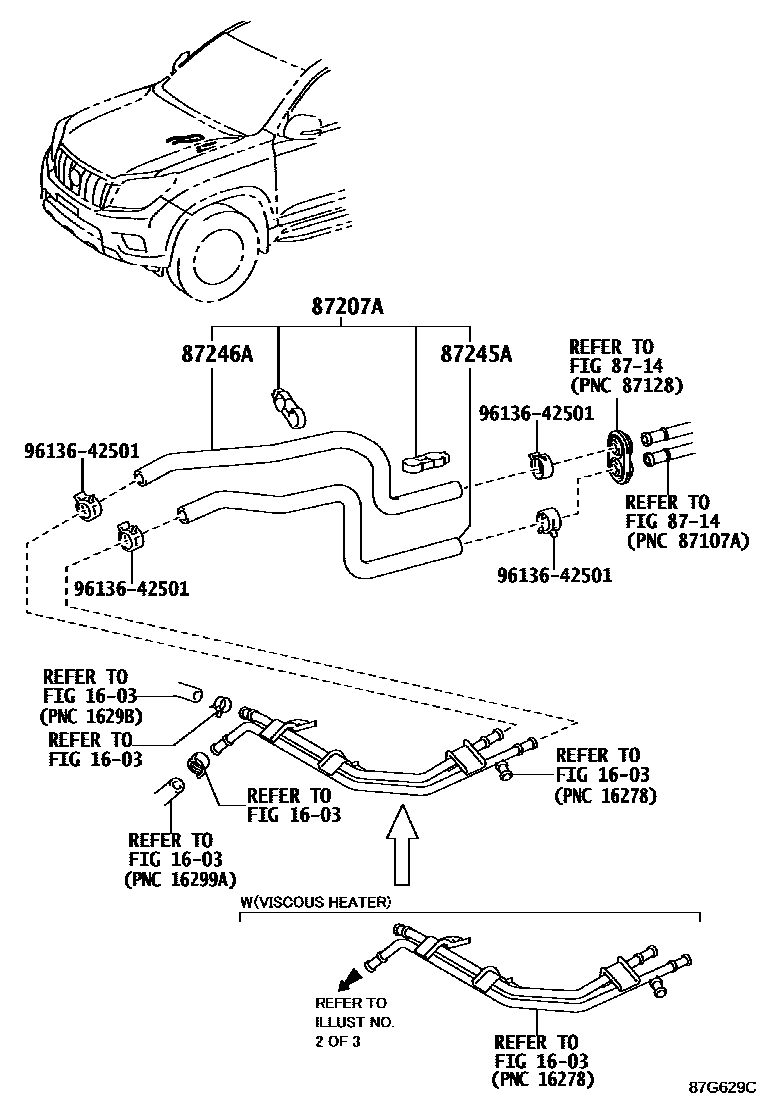

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT,W(REAR HEATER) 0003 1FRONT,W(STOVE HEATER) 0004 1FRONT,W(REAR HEATER & STOVE H0005 1FRONT 0006 1FRONT,W(REAR HEATER) 0007 1FRONT 0008 1FRONT,W(REAR HEATER) 0009 1FRONT 0010 1FRONT,W(REAR HEATER) 0011 1REAR 0012 1REAR 0013 1REAR 0014 1FRONT,W(VISCOUS HEATER) 0015 1REAR

1603

8714

87207APIPE & HOSE SUB-ASSY, WATER A

main87207-60120iKDJ150201708-202007

main87207-60340iGDJ150..RUS201708-201806

HEATER-STOVE TYPE & WITH(PTC & VISCOUS)

main87207-60440iGDJ150..RUS201806-202008

EXHAUST EMISSION CONTROL-EURO 5&HEATER-STOVE TYPE & WITH(PTC & VISCOUS)

main87207-60530iGDJ150..RUS202008-202312

main87209-60F00iGDJ15#..EUR201806-202008

main87209-60G50iGDJ15#..EUR201708-201806

main87209-60M50iGDJ15#..EUR202008-202312

87245HOSE, HEATER WATER, INLET

main87245-60D50

main87245-60D70

main87245-60D90

main87245-60E20

main87209-60E41

main87245-60E60

main87209-60E71

main87245-60F00

main87245-60F20

main87245-60F30

main87245-60F70

main87245-60F81

main87245-60G00

main87245-60G31

main87245-60J00

main87209-60J00

main87245-60J20

main87245-60K20

main87245-60L00

main87245-60L30

main87245-60L70

main87245-60L90

main87245-60M10

main87245-60M50

main87245-60N00

main87245-60N40

main87245-60N50

main87245-60N90

main87245-60P20

main87245-60P70

main87245-60P90

main87245-60Q00

main87245-60Q20

main87245-60Q30

87245AHOSE, HEATER WATER, INLET A

main87245-60D50iGRJ150201708-202312

AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G),FRAME NO.=KXXXXXX

main87245-60D50iGRJ150201708-202312

FRAME NO.=KXXXXXX

main87245-60D50iGRJ150201708-202312

AIR CONDITIONER-DUAL(AUTO),FRAME NO.=KXXXXXX

main87245-60D70iKDJ150201708-202007

main87245-60D90iTRJ150201708-202312

main87245-60K20iGDJ15#..EUR201806-202008

sub87245-60Q00

main87245-60L00iGRJ150201708-202312

AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G),FRAME NO.=5XXXXXX

main87245-60L00iGRJ150201708-202312

AIR CONDITIONER-DUAL(AUTO),FRAME NO.=5XXXXXX

main87245-60L00iGRJ150201708-202312

FRAME NO.=5XXXXXX

main87245-60L90iGDJ15#..EUR201708-201806

main87245-60M10iGDJ150..RUS201708-202008

main87245-60P20iGDJ150..RUS202008-202312

main87245-60Q00iGDJ15#..EUR202008-202312

87246HOSE, HEATER WATER, OUTLET

main87245-60D40

main87209-60D52

main87245-60D60

main87245-60D80

main87245-60E01

main87245-60E10

main87245-60E50

main87245-60F10

main87245-60F20

main87245-60F30

main87245-60F41

main87245-60F50

main87245-60F60

main87245-60F90

main87209-60G40

main87245-60G50

main87245-60G80

main87245-60G90

main87245-60J10

main87209-60J20

main87245-60K10

main87245-60K50

main87245-60K60

main87245-60K70

main87245-60K80

main87245-60K90

main87245-60L50

main87245-60L60

main87245-60L80

main87245-60M00

main87245-60M20

main87245-60M30

main87245-60M40

main87245-60M80

main87245-60M90

main87245-60N10

main87245-60N20

main87245-60N30

main87245-60N60

main87245-60N70

main87245-60N80

main87245-60P00

main87245-60P10

main87245-60P30

main87245-60P40

main87245-60P50

main87245-60P60

main87245-60P80

main87245-60Q10

main87245-60Q40

87246AHOSE, HEATER WATER, OUTLET A

main87245-60D40iGRJ150201708-202312

FRAME NO.=KXXXXXX

main87245-60D40iGRJ150201708-202312

AIR CONDITIONER-DUAL(AUTO),FRAME NO.=KXXXXXX

main87245-60D40iGRJ150201708-202312

AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G),FRAME NO.=KXXXXXX

main87245-60D60iKDJ150201708-202007

main87245-60D80iTRJ150201708-202312

main87245-60K10iGDJ15#..EUR201806-202008

main87245-60K80iGDJ150..RUS201708-202008

main87245-60K90iGRJ150201708-202312

FRAME NO.=5XXXXXX

main87245-60K90iGRJ150201708-202312

AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G),FRAME NO.=5XXXXXX

main87245-60K90iGRJ150201708-202312

AIR CONDITIONER-DUAL(AUTO),FRAME NO.=5XXXXXX

main87245-60L80iGDJ15#..EUR201708-201806

main87245-60P10iGDJ150..RUS202008-202312

main87245-60P40iGDJ15#..EUR202008-202312

9613642501

main96136-42501

8 parts on this diagram · 15 diagrams in section
