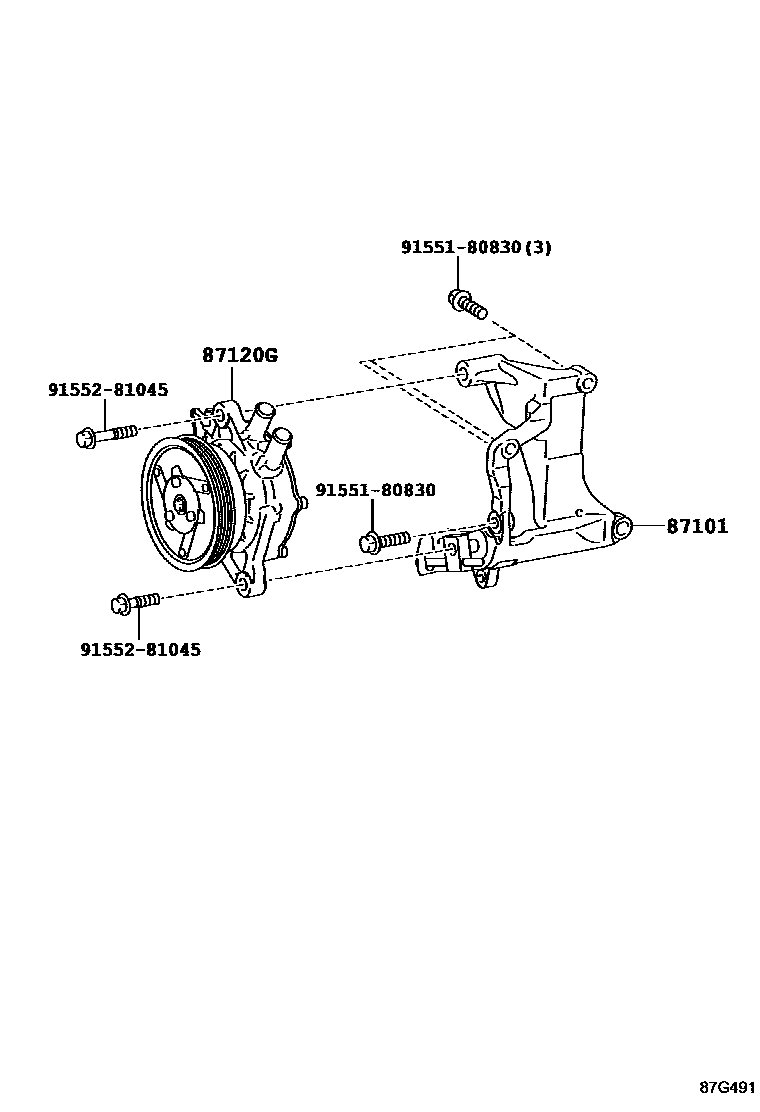

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER
87101BRACKET SUB-ASSY, VISCOUS HEATER NO.1
COLD AREA SPEC
COLD AREA SPEC&HEATER-WITH(PTC & VISCOUS)
COLD AREA SPEC&HEATER-STOVE TYPE & WITH(PTC & VISCOUS)
COLD AREA SPEC
COLD AREA SPEC&HEATER-WITH(PTC & VISCOUS)
COLD AREA SPEC&HEATER-STOVE TYPE & WITH(PTC & VISCOUS)
87120GHEATER ASSY, VISCOUS W/MAGNET CLUTCH
COLD AREA SPEC
COLD AREA SPEC&HEATER-WITH(PTC & VISCOUS)
COLD AREA SPEC&HEATER-STOVE TYPE & WITH(PTC & VISCOUS)
9155180830
main91551-80830
9155281045
main91552-81045
4 parts on this diagram · 1 diagram in section
