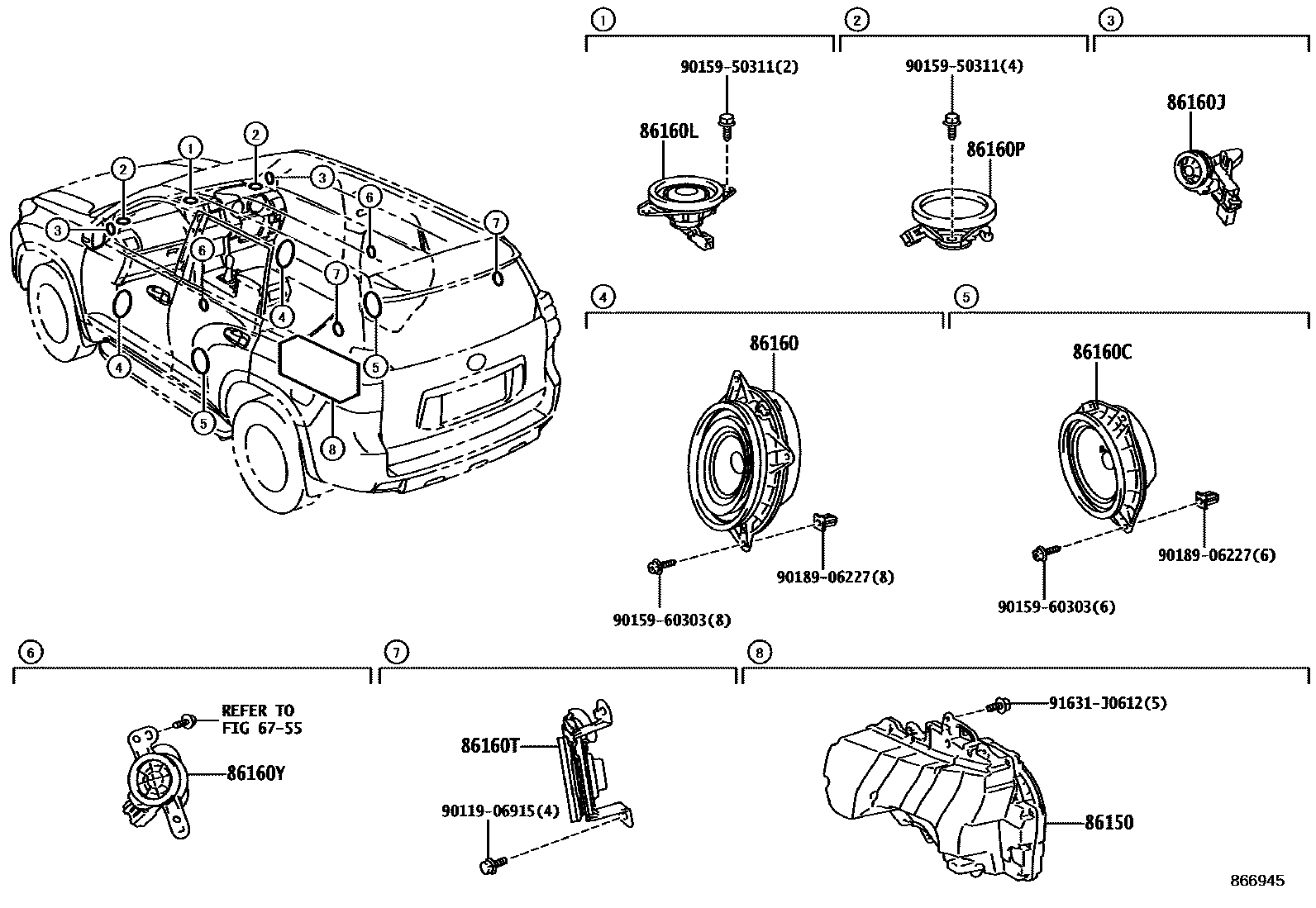

SPEAKER

0001 1 0002 1

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

86150SPEAKER ASSY, W/BOX, NO.1

main86150-60170

main86150-0W240

main86150-60250

86160SPEAKER ASSY, FRONT NO.1

main86160-58240iKDJ150..LHD;GDJ15#,GRJ150,TRJ150201708-202312

main86160-60460iKDJ150..RHD201708-201906

86160CSPEAKER SET, REAR

main86160-52300iGDJ150,GRJ150,TRJ150201708-202312

main86160-60430iKDJ150..RHD201708-201906

86160JSPEAKER ASSY, FRONT NO.3

main86160-60480iKDJ150..RHD201708-201906

RH

main86160-60490iKDJ150..RHD201708-201906

LH

86160LSPEAKER ASSY, FRONT NO.4

main86160-60530iKDJ150..RHD201708-201906

86160PSPEAKER ASSY, FRONT NO.2

main86160-60470iKDJ150..RHD201708-201906

main86160-60500iKDJ150..LHD;GDJ15#,GRJ150,TRJ150201708-202312

86160TSPEAKER ASSY, REAR HEADER

86160YSPEAKER ASSY, REAR NO.2

9011906915

main90119-06915

9015950311

main90159-50311

9015960303

main90159-60303

9018906227

main90189-06227

91631J0612

main91631-J0612

14 parts on this diagram · 2 diagrams in section
