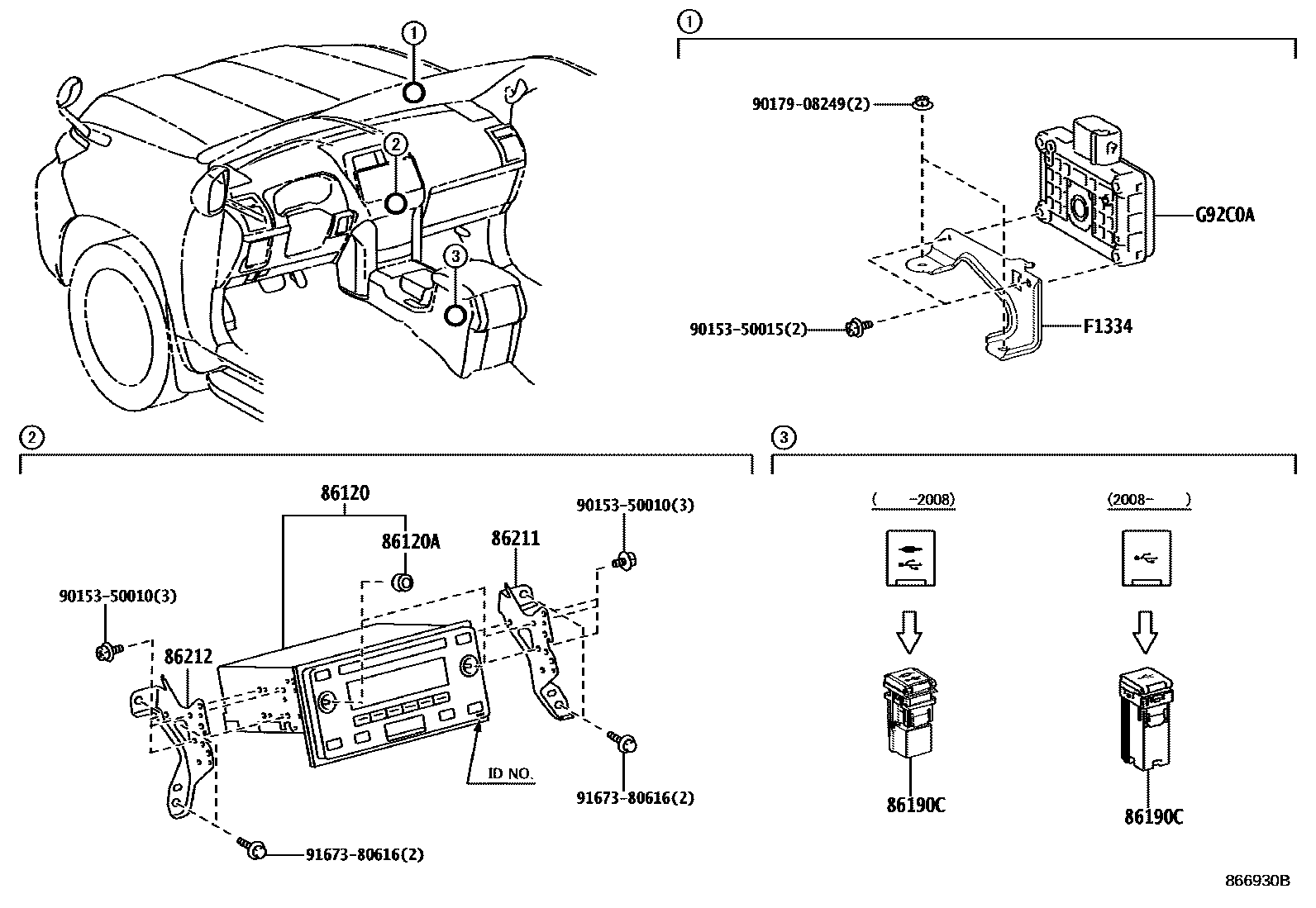

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1AUDIO UNIT & USB JACK 0002 1AUDIO AMP (VERTICAL MOUNT) 0003 1AUDIO AMP (HORIZONTAL MOUNT) 0004 1AUDIO AMP (VERTICAL MOUNT) 0005 1AUDIO AMP (HORIZONTAL MOUNT) 0006 1CONDENSER

86120RECEIVER ASSY, RADIO

main90010-23051

main86120-60N10

main86120-60N11

main86120-60N12

main86120-60N13

main86120-60N20

main86120-60N21

main86120-60N30

main86120-60N31

86120AKNOB, RADIO RECEIVER SWITCH

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-12040iKDJ150..RHD201708-201906

86211BRACKET, RADIO, NO.1

main86211-60500iKDJ150..LHD;GDJ15#,GRJ150,TRJ150201708-202312

AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER

main86211-60500iKDJ150..LHD;GDJ15#,GRJ150,TRJ150201708-202312

AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER

main86211-60500iKDJ150..LHD;GDJ15#,GRJ150,TRJ150201708-202312

AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER

86212BRACKET, RADIO, NO.2

main86212-60500iKDJ150..LHD;GDJ15#,GRJ150,TRJ150201708-202312

AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER

main86212-60500iKDJ150..LHD;GDJ15#,GRJ150,TRJ150201708-202312

AUDIO(FOR OVERSEAS MARKET)-AVN & JBL & 14SPEAKER

main86212-60500iKDJ150..LHD;GDJ15#,GRJ150,TRJ150201708-202312

AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & 12SPEAKER

F1334BRACKET, CONVERTER CONTROL, NO.1

mainF1334-60020

G92C0ACONVERTER ASSY, ECO-RUN VEHICLE

9015350010

main90153-50010

9015350015

main90153-50015

9017908249

main90179-08249

9167380616

main91673-80616

11 parts on this diagram · 6 diagrams in section
