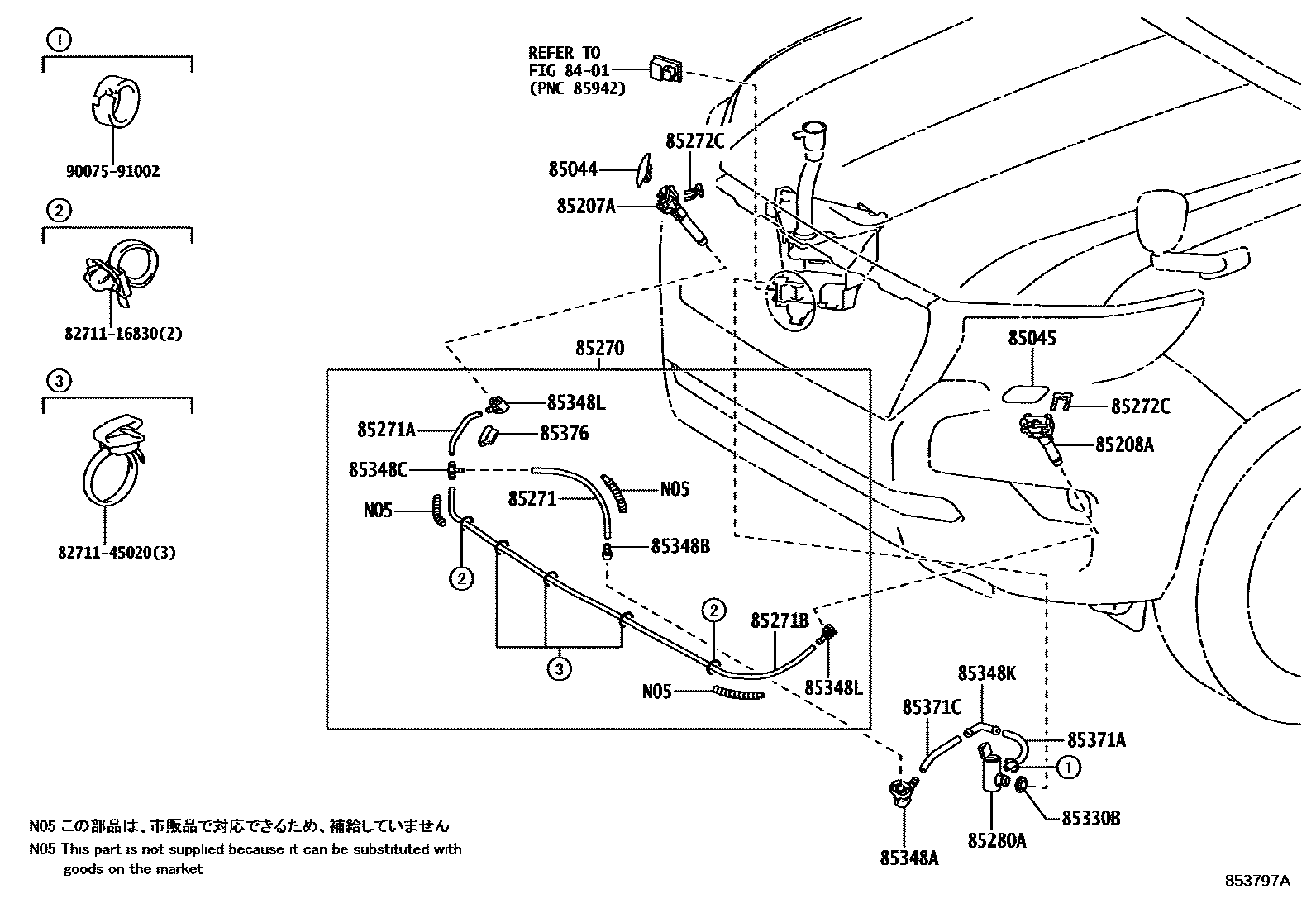

HEADLAMP CLEANER
8401
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
RED M.M.,3R3
AVANT-GARDE BRONZE ME.,4V8
VINTAGE BROWN PEARL CS.,4X4
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
RED M.M.,3R3
AVANT-GARDE BRONZE ME.,4V8
VINTAGE BROWN PEARL CS.,4X4
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85270CLEANER ASSY, HEADLAMP
85271HOSE, HEADLAMP CLEANER, NO.1
L=300
85271AHOSE, HEADLAMP CLEANER, NO.2
L=35
L=140,TX-L PACKAGE&HEADLAMP-LED
L=140
L=140,VX PACKAGE&HEADLAMP-LED
L=140,VX PACKAGE&HEADLAMP-LED & WITH(*AHB)
L=140,VX-L PACKAGE&HEADLAMP-LED
L=140,VX-L PACKAGE&HEADLAMP-LED & WITH(*AHB)
L=140,HEADLAMP CLEANER-WITH
85271BHOSE, HEADLAMP CLEANER, NO.3
L=1500,VX PACKAGE&HEADLAMP-LED
L=1500,VX PACKAGE&HEADLAMP-LED & WITH(*AHB)
L=1500
L=1500,VX-L PACKAGE&HEADLAMP-LED
L=1500,VX-L PACKAGE&HEADLAMP-LED & WITH(*AHB)
L=1500,TX-L PACKAGE&HEADLAMP-LED
L=1500,HEADLAMP CLEANER-WITH
L=1450
85272CCLAMP, HEADLAMP CLEANER, NO.3
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)&HEADLAMP CLEANER-WITH
COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION)&HEADLAMP CLEANER-WITH
COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)&HEADLAMP CLEANER-WITH
HEADLAMP- LED(MAT BLACK EDITION)&HEADLAMP CLEANER-WITH
HEADLAMP-LED&HEADLAMP CLEANER-WITH
HEADLAMP-LED & WITH(*AHB)&HEADLAMP CLEANER-WITH
85330BBUSH, HEADLAMP CLEANER WASHER JAR
COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION)&HEADLAMP CLEANER-WITH
COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)&HEADLAMP CLEANER-WITH
HEADLAMP- LED(MAT BLACK EDITION)&HEADLAMP CLEANER-WITH
HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)&HEADLAMP CLEANER-WITH
HEADLAMP-LED&HEADLAMP CLEANER-WITH
HEADLAMP-LED & WITH(*AHB)&HEADLAMP CLEANER-WITH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)&HEADLAMP CLEANER-WITH
COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION)&HEADLAMP CLEANER-WITH
HEADLAMP- LED(MAT BLACK EDITION)&HEADLAMP CLEANER-WITH
HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)&HEADLAMP CLEANER-WITH
HEADLAMP-LED&HEADLAMP CLEANER-WITH
HEADLAMP-LED & WITH(*AHB)&HEADLAMP CLEANER-WITH
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION)&HEADLAMP CLEANER-WITH
COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)&HEADLAMP CLEANER-WITH
HEADLAMP- LED(MAT BLACK EDITION)&HEADLAMP CLEANER-WITH
HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)&HEADLAMP CLEANER-WITH
HEADLAMP-LED&HEADLAMP CLEANER-WITH
HEADLAMP-LED & WITH(*AHB)&HEADLAMP CLEANER-WITH
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=80
L=80,COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION)&HEADLAMP CLEANER-WITH
L=80,COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)&HEADLAMP CLEANER-WITH
L=80,HEADLAMP- LED(MAT BLACK EDITION)&HEADLAMP CLEANER-WITH
L=80,HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)&HEADLAMP CLEANER-WITH
L=80,HEADLAMP-LED&HEADLAMP CLEANER-WITH
L=80,HEADLAMP-LED & WITH(*AHB)&HEADLAMP CLEANER-WITH
85371CHOSE, HEADLAMP CLEANER, NO.1
L=100
L=100,COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION)&HEADLAMP CLEANER-WITH
L=100,COLD AREA SPEC&HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)&HEADLAMP CLEANER-WITH
L=100,HEADLAMP- LED(MAT BLACK EDITION)&HEADLAMP CLEANER-WITH
L=100,HEADLAMP- LED(MAT BLACK EDITION) & WITH(*AHB)&HEADLAMP CLEANER-WITH
L=100,HEADLAMP-LED&HEADLAMP CLEANER-WITH
L=100,HEADLAMP-LED & WITH(*AHB)&HEADLAMP CLEANER-WITH
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
8271145020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-45020
9007591002
main90075-91002
23 parts on this diagram · 3 diagrams in section
