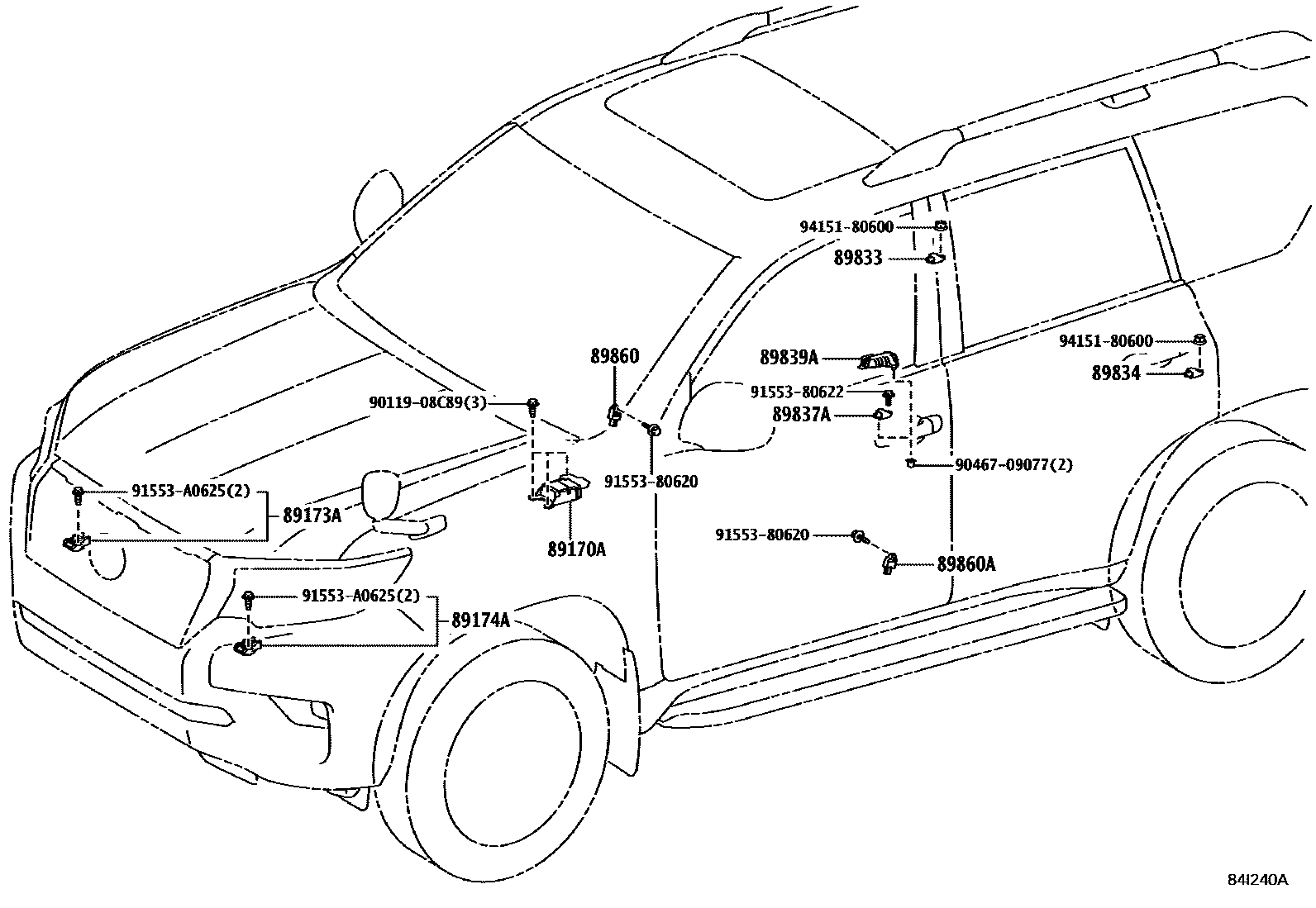

AIR BAG
89170ACOMPUTER ASSY, AIRBAG
DATA COMMUNICATION MODULE-WITH(ERA-GLONASS)
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89833SENSOR, AIRBAG, REAR RH
N1&REAR SEAT-WITHOUT(WITH/ANCHOR)
REAR SEAT-WITHOUT(WITH/ANCHOR)
89834SENSOR, AIRBAG, REAR LH
N1&REAR SEAT-WITHOUT(WITH/ANCHOR)
REAR SEAT-WITHOUT(WITH/ANCHOR)
89837ASENSOR, REAR FLOOR SIDE AIRBAG
89839ACOVER, REAR FLOOR SIDE AIRBAG SENSOR
89860SENSOR ASSY, SIDE AIRBAG, RH
REAR SEAT-WITHOUT(WITH/ANCHOR)
N1&REAR SEAT-WITHOUT(WITH/ANCHOR)
89860ASENSOR ASSY, SIDE AIRBAG, LH
REAR SEAT-WITHOUT(WITH/ANCHOR)
N1&REAR SEAT-WITHOUT(WITH/ANCHOR)
9011908C89
main90119-08C89
9046709077
main90467-09077
9155380620
main91553-80620
9155380622
main91553-80622
91553A0625
main91553-A0625
9415180600
main94151-80600
15 parts on this diagram · 2 diagrams in section
