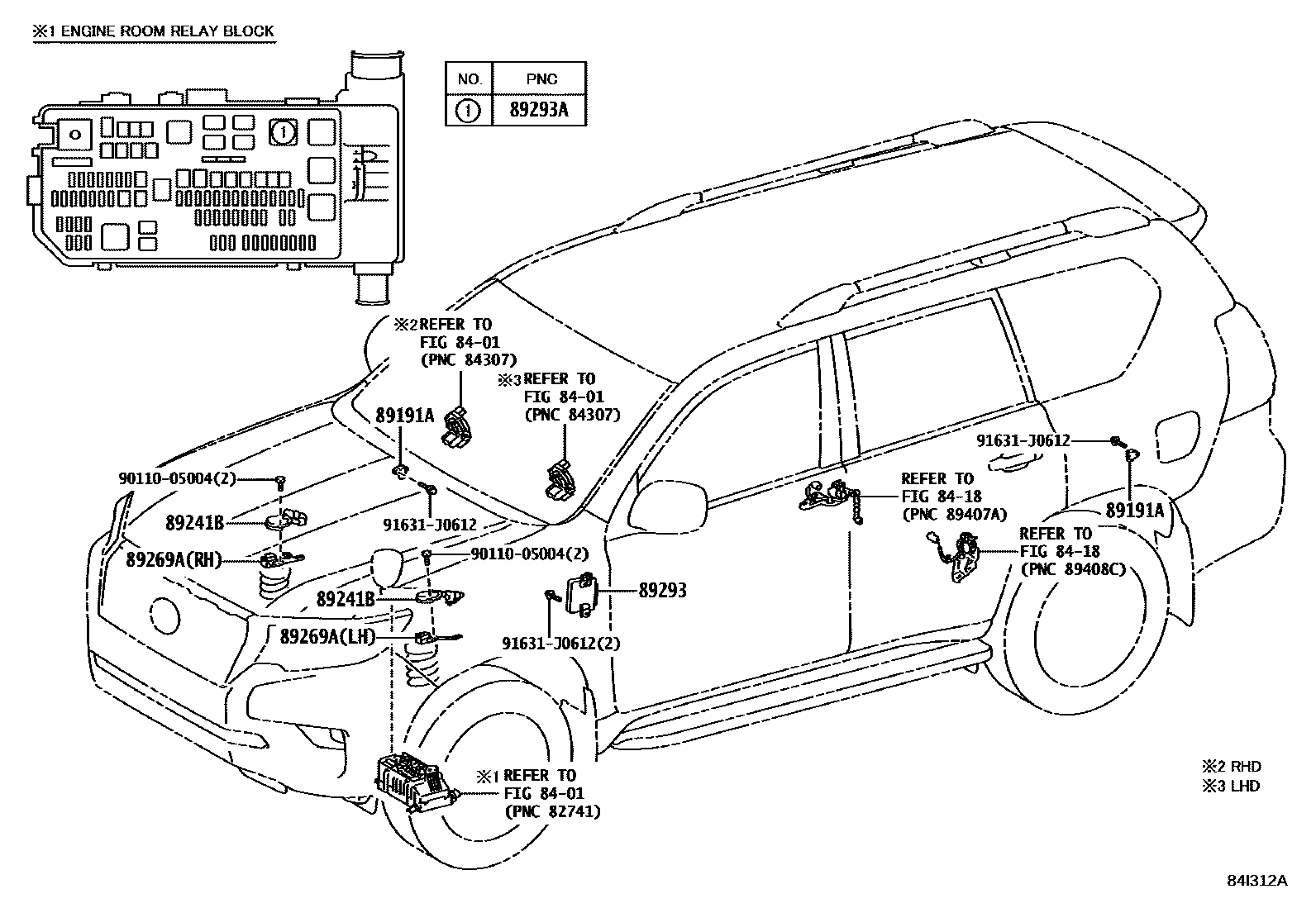

ELECTRONIC MODULATED SUSPENSION

8401

8418

89191ASENSOR, ACCELERATION

main89191-22020iKDJ150..LHD..5FC;GDJ150,GRJ150..6FC201708-202312

VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)

main89191-22020iKDJ150..RHD201708-201906

89241BACTUATOR, ABSORBER CONTROL

main89241-60010iKDJ150..RHD201708-201906

main89241-60010iKDJ150..LHD..5FC;GDJ150,GRJ150..6FC201708-202312

VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)

89269ABRACKET, SUSPENSION CONTROL

main89269-60010iKDJ150..LHD..5FC;GDJ150,GRJ150..6FC201708-202312

VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION),RH

main89269-60010iKDJ150..RHD201708-201906

RH

main89269-60020iKDJ150..RHD201708-201906

LH

main89269-60020iKDJ150..LHD..5FC;GDJ150,GRJ150..6FC201708-202312

VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION),LH

89293COMPUTER, SUSPENSION CONTROL

main89293-60130iKDJ150..RHD201708-201906

main89293-60130iKDJ150..LHD..5FC;GDJ150,GRJ150..6FC201708-202008

VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)

main89293-60131iGDJ150,GRJ150..6FC202008-202312

VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)

89293ARELAY, SUSPENSION CONTROL

main90987-02025iKDJ150..RHD201708-201906

main90987-02025iKDJ150..LHD..5FC;GDJ150,GRJ150..6FC201708-202312

VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)

9011005004

main90110-05004

91631J0612

main91631-J0612

9 parts on this diagram · 1 diagram in section
